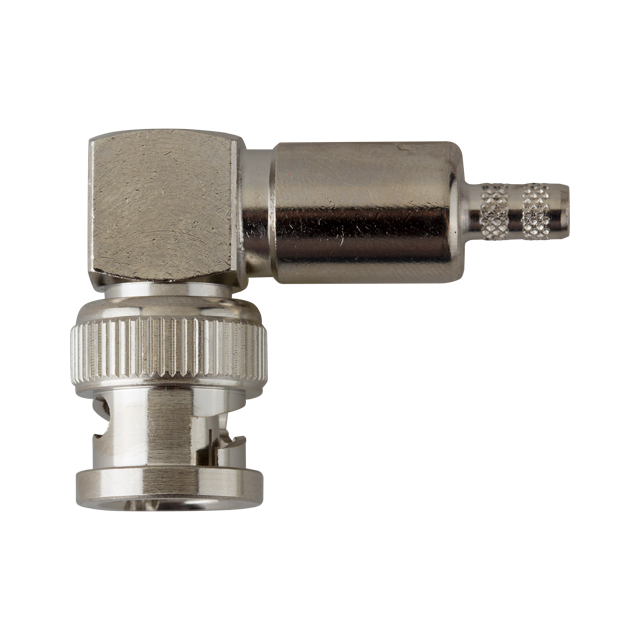

RFB-1110-C1

Active

RF Industries

BNC MALE R/A CRIMP; 50 OHMS

Search across all available documentation for this part.

Active

RF Industries

BNC MALE R/A CRIMP; 50 OHMS

Technical Specifications

Parameters and characteristics for this part

Specification	RFB-1110-C1

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Insertion Loss	0.3 dB
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Shield Termination	Crimp
Voltage Rating	500 V

BNC MALE R/A CRIMP; 50 OHMS

Part	Body Material	Number of Ports	Center Contact Plating	Fastening Type	Frequency - Max [Max]	Connector Style	Insertion Loss	Connector Type	Contact Termination	Voltage Rating	Impedance	Body Finish	Dielectric Material	Mounting Type	Housing Color	Shield Termination	Center Contact Material
RF Industries RFB-1110-C1	Brass	1	Gold	Bayonet Lock	4 GHz	BNC	0.3 dB	Male Pin, Plug	Crimp	500 V	50 Ohms	Nickel	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line), Right Angle	Silver	Crimp	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Crimp
