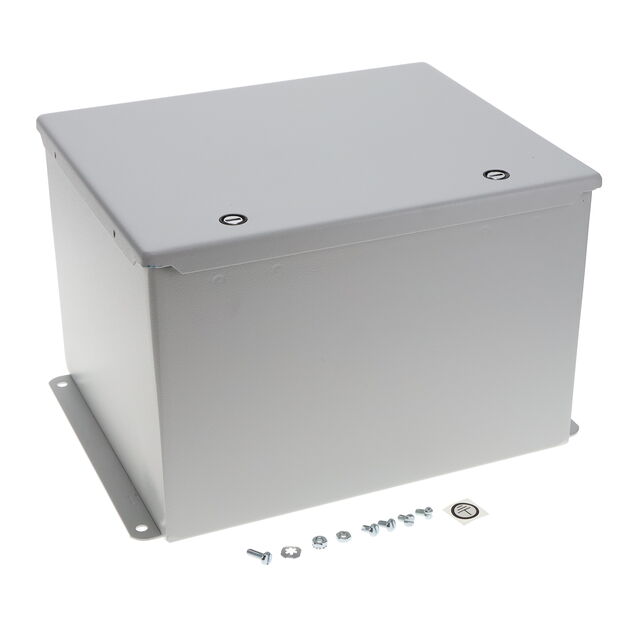

A12108CHFL

Active

Hoffman Enclosures, Inc.

JUNCTION BOX STEEL 12"L X 10"W

Search across all available documentation for this part.

Active

Hoffman Enclosures, Inc.

JUNCTION BOX STEEL 12"L X 10"W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A12108CHFL	A12108 Series

Area (L x W)	120 in²	120 in²
Area (L x W)	774 cm²	774 cm²
Color	Gray	Gray
Container Type	Junction Box	Junction Box
Design	Hinged Door, Lid	Hinged Door, Lid
Features	Wall Mount, Sealing Gasket, Latches	Sealing Gasket, Wall Mount, Latches
Material	Metal, Steel	Metal, Steel
Ratings	NEMA 4, IP66, UL-508A, 12	IP65, 50E, NEMA 13, UL-50, NEMA 12, NEMA 4, IP66, UL-508A, 12
Size / Dimension [x]	12.008 in	12.008 in
Size / Dimension [x]	305 mm	305 mm
Size / Dimension [y]	254 mm	254 mm
Size / Dimension [y]	10 in	10 in
Thickness	14 Gauge	14 Gauge
Weight	15 lbs	15 lbs
Weight	6.8 kg	6.8 kg

JUNCTION BOX STEEL 12"L X 10"W

Part	Thickness	Weight	Weight	Features	Color	Ratings	Area (L x W)	Area (L x W)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Container Type	Design	Material
Hoffman Enclosures, Inc. A12108CH	14 Gauge	15 lbs	6.8 kg	Sealing Gasket	Gray	50E, IP65, NEMA 12, NEMA 13, UL-50	120 in²	774 cm²	254 mm	10 in	12.008 in	305 mm	Junction Box	Hinged Door, Lid	Metal, Steel
Hoffman Enclosures, Inc. A12108CHFL	14 Gauge	15 lbs	6.8 kg	Latches, Sealing Gasket, Wall Mount	Gray	12, IP66, NEMA 4, UL-508A	120 in²	774 cm²	254 mm	10 in	12.008 in	305 mm	Junction Box	Hinged Door, Lid	Metal, Steel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Junction Box Metal, Steel Gray Hinged Door, Lid 12.008" L x 10.000" W (305.00mm x 254.00mm) X 7.992" (203.00mm)
