333-019-559-604

Active

EDAC Inc.

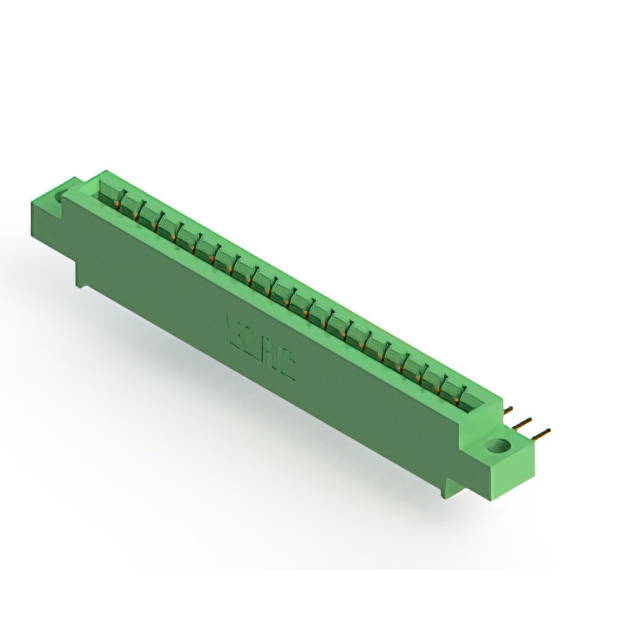

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 19 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Enhanced Product Overview EN +1

333-019-559-604

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 19 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

DocumentsDatasheet Enhanced Product Overview EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	333-019-559-604

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, Unthreaded
Flange Feature [diameter]	0.156 in
Flange Feature [diameter]	3.96 mm
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	19
Number of Positions/Bay/Row [custom]	19
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Wire Wrap
Termination Rows	1

333-019 Series

Part	Contact Material	Contact Finish	Number of Positions	Gender	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Card Type	Flange Feature	Number of Positions/Bay/Row [custom]	Mounting Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Color	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Termination Rows	Material - Insulation	Read Out	Pitch [x]	Pitch [x]	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Flange Feature
EDAC Inc. 333-019-520-608	Copper Alloy	Gold	19	Female	1	10 Áin	0.25 Ám	Cantilever	Non Specified - Single Edge	4-40 Threaded Insert Top Mount Opening	19	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	-40 °C	105 ░C	Solder	1	Polyester Thermoplastic	Single	0.156 in	3.96 mm
EDAC Inc. 333-019-500-102	Copper Alloy	Gold	19	Female	1	10 Áin	0.25 Ám	Cantilever	Non Specified - Single Edge	Flush Mount Top Opening Unthreaded	19	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	-40 °C	105 ░C	Solder Eyelet(s)	1	Diallyl Phthalate (DAP)	Single	0.156 in	3.96 mm	3.25 mm	0.128 "
EDAC Inc. 333-019-544-608	Copper Alloy	Gold	19	Female	1	10 Áin	0.25 Ám	Cantilever	Non Specified - Single Edge	4-40 Threaded Insert Top Mount Opening	19	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	-40 °C	105 ░C	Wire Wrap	1	Polyester Thermoplastic	Single	0.156 in	3.96 mm
EDAC Inc. 333-019-558-103	Copper Alloy	Gold	19	Female	1	10 Áin	0.25 Ám	Cantilever	Non Specified - Single Edge	Floating Bobbin Flush Mount	19	Through Hole Right Angle	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	-40 °C	105 ░C	Solder	1	Polyester Thermoplastic	Single	0.156 in	3.96 mm	2.95 mm	0.116 in
EDAC Inc. 333-019-520-604	Copper Alloy	Gold	19	Female	1	10 Áin	0.25 Ám	Cantilever	Non Specified - Single Edge	Top Mount Opening Unthreaded	19	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	-40 °C	105 ░C	Solder	1	Polyester Thermoplastic	Single	0.156 in	3.96 mm	3.96 mm	0.156 in
EDAC Inc. 333-019-558-602	Copper Alloy	Gold	19	Female	1	10 Áin	0.25 Ám	Cantilever	Non Specified - Single Edge		19	Through Hole Right Angle	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	-40 °C	105 ░C	Wire Wrap	1	Polyester Thermoplastic	Single	0.156 in	3.96 mm			3.25 mm	0.128 in
EDAC Inc. 333-019-500-104	Copper Alloy	Gold	19	Female	1	10 Áin	0.25 Ám	Cantilever	Non Specified - Single Edge	Flush Mount Top Opening Unthreaded	19	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	-40 °C	105 ░C	Solder Eyelet(s)	1	Diallyl Phthalate (DAP)	Single	0.156 in	3.96 mm	3.96 mm	0.156 in
EDAC Inc. 333-019-559-604	Copper Alloy	Gold	19	Female	1	10 Áin	0.25 Ám	Cantilever	Non Specified - Single Edge	Top Mount Opening Unthreaded	19	Through Hole Right Angle	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	-40 °C	105 ░C	Wire Wrap	1	Polyester Thermoplastic	Single	0.156 in	3.96 mm	3.96 mm	0.156 in
EDAC Inc. 333-019-541-102	Copper Alloy	Gold	19	Female	1	10 Áin	0.25 Ám	Cantilever	Non Specified - Single Edge	Flush Mount Top Opening Unthreaded	19	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	-40 °C	105 ░C	Wire Wrap	1	Polyester Thermoplastic	Single	0.156 in	3.96 mm	3.25 mm	0.128 "
EDAC Inc. 333-019-558-108	Copper Alloy	Gold	19	Female	1	10 Áin	0.25 Ám	Cantilever	Non Specified - Single Edge	4-40 Flush Mount Threaded Insert Top Opening	19	Through Hole Right Angle	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	-40 °C	105 ░C	Wire Wrap	1	Polyester Thermoplastic	Single	0.156 in	3.96 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 9.36
Newark	Each	25	$ 9.83
		50	$ 9.60
		100	$ 9.14
		250	$ 8.92
		500	$ 8.60

Description

General part information

333-019 Series

19 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
