SF2423-10B41

Active

Sanyo Denki SanMotion Products

STEP, F2, SQ.42, 1.8, , , BIPOLA

Search across all available documentation for this part.

Active

Sanyo Denki SanMotion Products

STEP, F2, SQ.42, 1.8, , , BIPOLA

Technical Specifications

Parameters and characteristics for this part

Specification	SF2423-10B41

Approval Agency	cURus, CE, TUV
Coil Resistance	5.3 Ohms
Coil Type	Bipolar
Current Rating (Amps)	1 A
Diameter - Shaft [diameter]	0.197 in
Diameter - Shaft [diameter]	5 mm
Length - Shaft and Bearing [x]	24 mm
Length - Shaft and Bearing [x]	0.945 in
Mounting Hole Spacing	1.22 in
Mounting Hole Spacing	31 mm
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Rotor Inertia	1.52 gcm²
Size / Dimension [x]	42 mm
Size / Dimension [x]	1.654 in
Size / Dimension [y]	1.654 "
Size / Dimension [y]	42 mm
Step Angle	1.8 °
Steps per Revolution	200
Termination Style	Connector
Torque - Holding (oz-in / mNm)	560 mNm
Torque - Holding (oz-in / mNm)	79.3 oz-in
Type	Hybrid
Voltage - Rated	24 VDC

STEP, F2, SQ.42, 1.8, , , BIPOLA

Part	Coil Type	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Type	Voltage - Rated	Approval Agency	Steps per Revolution	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Mounting Hole Spacing	Mounting Hole Spacing	Rotor Inertia	Termination Style	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Coil Resistance	Torque - Holding (oz-in / mNm)	Torque - Holding (oz-in / mNm)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Step Angle	Current Rating (Amps)
Sanyo Denki SanMotion Products SF2423-10B41	Bipolar	-10 °C	50 °C	Hybrid	24 VDC	CE, cURus, TUV	200	24 mm	0.945 in	1.22 in	31 mm	1.52 gcm²	Connector	0.197 in	5 mm	5.3 Ohms	560 mNm	79.3 oz-in	42 mm	1.654 "	1.654 in	42 mm	1.8 °	1 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

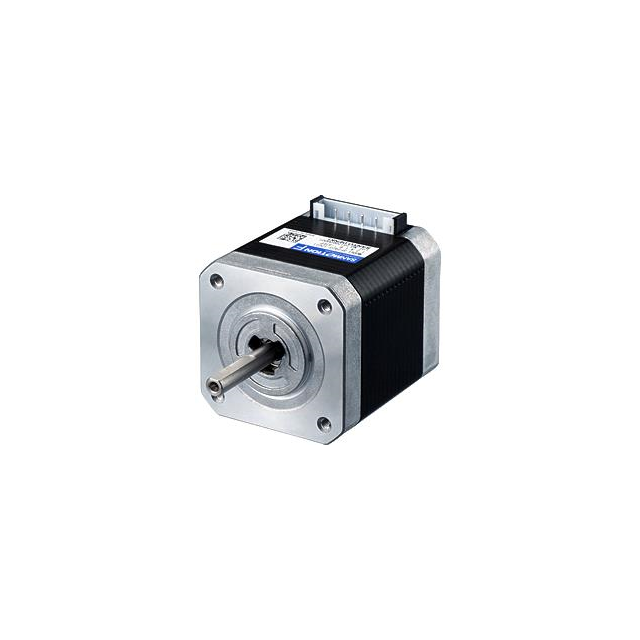

Bipolar Stepper Motor Hybrid Frame Size 200.0 Step 1 A 24VDC
