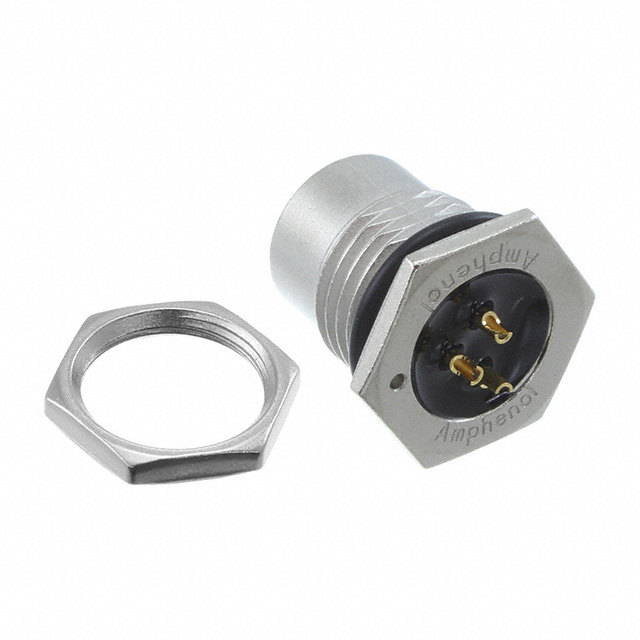

M12A-03PFFS-SF8001

Active

Amphenol LTW

CONN RCPT FMALE 3P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT FMALE 3P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	M12A-03PFFS-SF8001

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Ingress Protection	IP68, IP69K
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M12-3
Shielding	Shielded
Voltage Rating	250 VAC

Part	Shell Finish	Voltage Rating	Insert Material	Orientation	Contact Finish - Mating	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Connector Type	Mounting Type	Contact Material	Primary Material	Ingress Protection	Color	Shell Size - Insert	Current Rating (Amps)	Shell Material
Amphenol LTW M12A-03PFFS-SF8001	Nickel	250 VAC	Polyamide (PA) Nylon Glass Filled	A	Gold	Bulkhead - Front Side Nut	-40 °C	105 ░C	Shielded	Receptacle Female Sockets	Panel Mount Through Hole	Copper Alloy	Metal	IP68 IP69K	Silver	M12-3	4 A	Zinc Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle, Female Sockets Solder Cup
