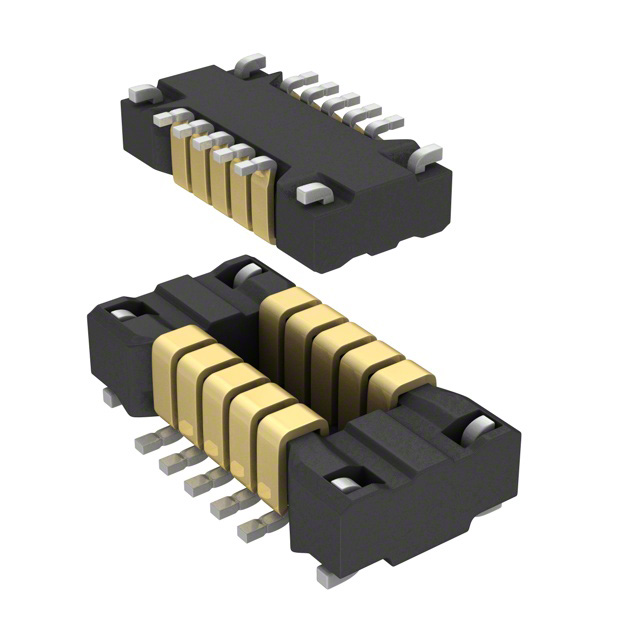

AXT610124

Active

Panasonic Electric Works

CONN HDR 10POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN HDR 10POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXT610124

Connector Type	Header, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board [z]	0.84 mm
Height Above Board [z]	0.033 "
Mated Stacking Heights	1 mm
Mounting Type	Surface Mount
Number of Positions	10
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Mated Stacking Heights	Connector Type	Height Above Board [z]	Height Above Board [z]	Number of Positions	Number of Rows	Pitch [x]	Pitch [x]	Contact Finish	Features	Mounting Type
Panasonic Electric Works AXT610124	1 mm	Header Center Strip Contacts	0.84 mm	0.033 "	10	2	0.016 in	0.4 mm	Gold	Solder Retention	Surface Mount
