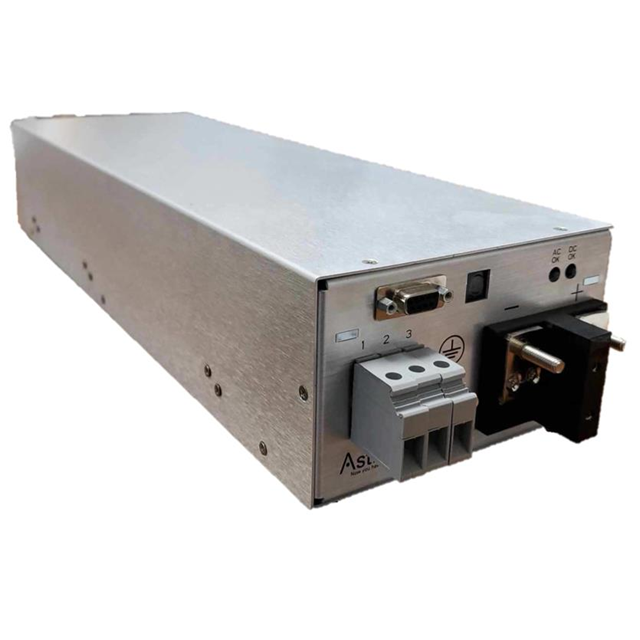

T100116107-LF

Active

Astrodyne TDI

AC/DC CONVERTER RECTIFIER 5.5KW

Search across all available documentation for this part.

Active

Astrodyne TDI

AC/DC CONVERTER RECTIFIER 5.5KW

Technical Specifications

Parameters and characteristics for this part

AC/DC CONVERTER RECTIFIER 5.5KW

Part	Voltage - Isolation	Type	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Applications	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Current - Output 1	Power (Watts)	Number of Outputs
Astrodyne TDI T100116107-LF	6000 V	Enclosed	480 VAC	380 VAC	50 °C	5 °C	149.1 mm	5.87 in	499.6 mm	87.9 mm	19.67 "	3.46 "	ITE (Commercial)	60 V	0 V	120 A	5500 W	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 0 ~ 60V 380 ~ 480 VAC (3 Phase) Input
