54-3/8"X72YD

Active

3M (TC)

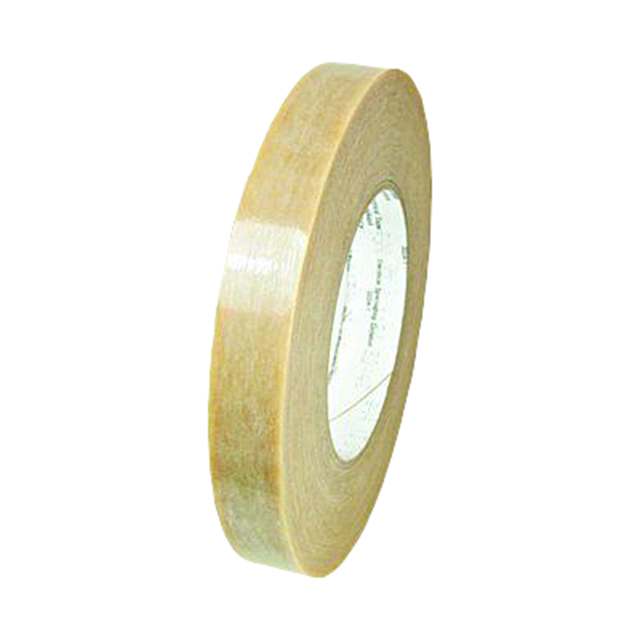

TAPE MASKING CLEAR 3/8"X72YDS

Search across all available documentation for this part.

Active

3M (TC)

TAPE MASKING CLEAR 3/8"X72YDS

Technical Specifications

Parameters and characteristics for this part

Specification	54-3/8"X72YD

Adhesive	Rubber
Backing, Carrier	Polyester Film
Color	Clear
Length	66 m
Length	216 ft
Length	72 yd
Shelf Life	60 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Tape Type	Masking
Temperature Range	130 °C
Temperature Range	266 °F
Thickness	2.5 mils
Thickness	0.064 mm
Thickness	0.0025 "
Thickness - Adhesive	1.5 mils
Thickness - Adhesive	0.0015 in
Thickness - Adhesive	0.038 mm
Thickness - Backing, Carrier	1 mils
Thickness - Backing, Carrier	0.025 mm
Thickness - Backing, Carrier	0.001 "
Usage	Wire Wrapping
Width	0.375 in
Width	9.65 mm
Width	0.38 in

Part	Tape Type	Shelf Life	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Shelf Life Start	Temperature Range	Temperature Range	Length	Length	Length	Width	Width	Width	Thickness	Thickness	Thickness	Usage	Adhesive	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Backing, Carrier	Color
3M (TC) 54-3/4"X72YD	Masking	60 Months	1.5 mils	0.0015 in	0.038 mm	Date of Manufacture	130 °C	266 °F	66 m	216 ft	72 yd	0.75 in	19.05 mm	0.75 in	2.5 mils	0.064 mm	0.0025 "	Wire Wrapping	Rubber	1 mils	0.025 mm	0.001 "	27 °C 80 °F	10 °C	Polyester Film	Clear
3M (TC) 54-3/8"X72YD	Masking	60 Months	1.5 mils	0.0015 in	0.038 mm	Date of Manufacture	130 °C	266 °F	66 m	216 ft	72 yd	0.38 in	0.375 in	9.65 mm	2.5 mils	0.064 mm	0.0025 "	Wire Wrapping	Rubber	1 mils	0.025 mm	0.001 "	27 °C 80 °F	10 °C	Polyester Film	Clear
