PF2006 NA005

Active

ALPHA WIRE

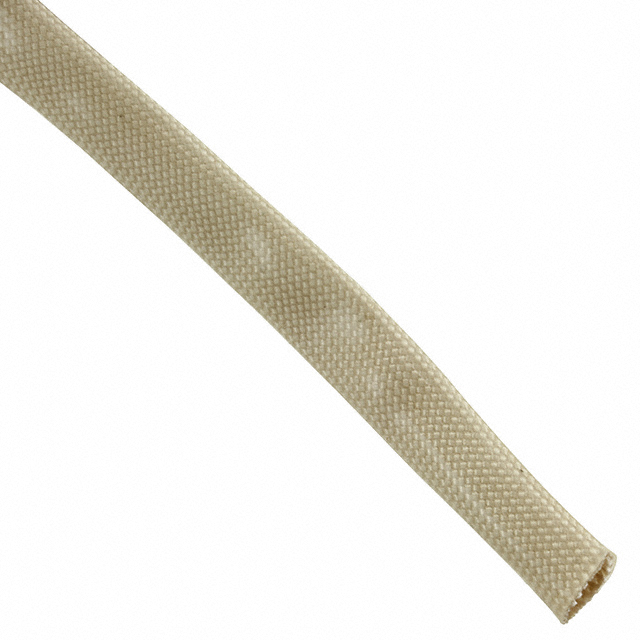

SLEEVING 0.162" ID FBRGLASS 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

SLEEVING 0.162" ID FBRGLASS 100'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PF2006 NA005	PF2006 Series

Abrasion Protection	Abrasion Resistant, Fray Resistant	Abrasion Resistant, Fray Resistant
Color	Natural	Natural
Diameter - Inside [diameter]	4.11 mm	4.11 mm
Diameter - Inside [diameter]	0.162 in	0.162 in
Diameter - Outside [diameter]	0.218 "	0.218 "
Diameter - Outside [diameter]	5.54 mm	5.54 mm
Environment Protection	Corrosion Resistant	Corrosion Resistant
Features	Clean Cut	Clean Cut
Length	100 ft	100 ft
Length	30.48 m	30.48 m
Length	-	25 ft
Length	-	7.62 m
Material	Fiberglass, Silicone Coated	Fiberglass, Silicone Coated
Material Flammability Rating	UL VW-1	UL VW-1
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-70 °C	-70 °C
Type	Sleeving	Sleeving
Type Attributes	Braided	Braided
Wall Thickness [custom]	0.51 mm	0.51 mm
Wall Thickness [custom]	0.02 in	0.02 in

SLEEVING 0.162" ID FBRGLASS 100'

Part	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Abrasion Protection	Color	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Environment Protection	Material	Type Attributes	Wall Thickness [custom]	Wall Thickness [custom]	Type	Material Flammability Rating	Features	Length	Length	Length [x]	Length [x]
ALPHA WIRE PF2006 NA005	0.218 "	5.54 mm	200 °C	-70 °C	Abrasion Resistant, Fray Resistant	Natural	4.11 mm	0.162 in	Corrosion Resistant	Fiberglass, Silicone Coated	Braided	0.51 mm	0.02 in	Sleeving	UL VW-1	Clean Cut	100 ft	30.48 m
ALPHA WIRE PF2006 NA008	0.218 "	5.54 mm	200 °C	-70 °C	Abrasion Resistant, Fray Resistant	Natural	4.11 mm	0.162 in	Corrosion Resistant	Fiberglass, Silicone Coated	Braided	0.51 mm	0.02 in	Sleeving	UL VW-1	Clean Cut			25 ft	7.62 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Natural Fiberglass, Silicone Coated Braided Sleeving 0.162" (4.11mm) 100' (30.48m)
