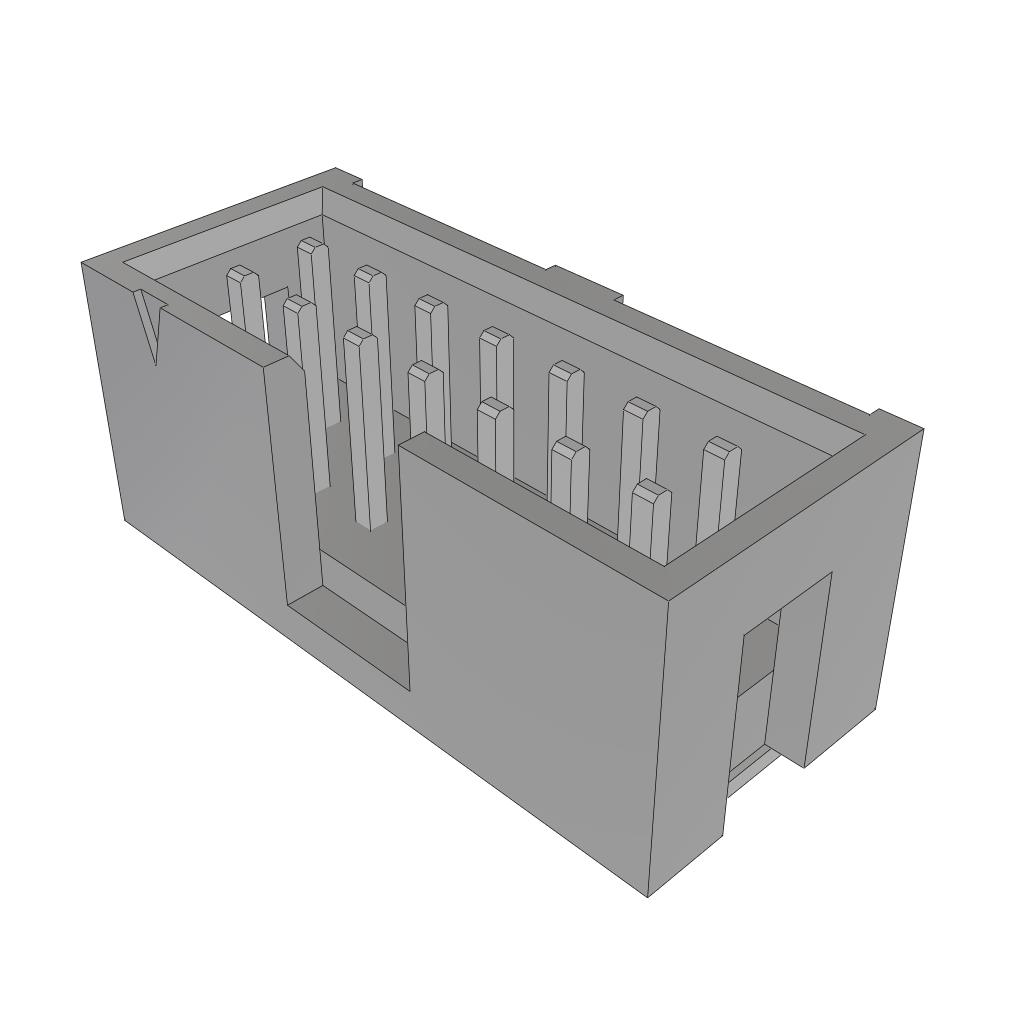

HTSS-107-04-T-D-RA

Active

Samtec Inc.

CONN SHROUDED HEADER (4 SIDES) HDR 14 POS 2.54MM SOLDER RA SIDE ENTRY THRU-HOLE TUBE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHTSS Datasheet Datasheet

HTSS-107-04-T-D-RA

Active

Samtec Inc.

CONN SHROUDED HEADER (4 SIDES) HDR 14 POS 2.54MM SOLDER RA SIDE ENTRY THRU-HOLE TUBE

Deep-Dive with AI

DocumentsHTSS Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HTSS-107-04-T-D-RA

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	6.35 mm
Contact Length - Mating	0.25 in
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Natural
Insulation Height	0.365 in
Insulation Height	9.27 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

HTSS-107 Series

Headers & Wire Housings .100" High-Temp Shrouded Terminal Strip

Part	Pitch - Mating	Pitch - Mating	Contact Material	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Termination	Contact Type	Insulation Height [custom]	Insulation Height [custom]	Number of Positions	Insulation Material	Contact Finish - Post	Features	Contact Shape	Style	Mounting Type	Contact Length - Mating	Contact Length - Mating	Insulation Color	Contact Finish - Mating	Fastening Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Shrouding	Number of Positions Loaded	Number of Positions Loaded	Overall Contact Length	Overall Contact Length	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height
Samtec Inc. HTSS-117-01-S-DV-P-TR	0.1 in	2.54 mm	Phosphor Bronze	Header	30 Áin	0.76 Ám	2.54 mm	0.1 in	Solder	Male Pin	0.35 in	8.89 mm	34	Liquid Crystal Polymer (LCP)	Tin	Keying Slot Pick and Place	Square	Board to Board Cable	Surface Mount	6.35 mm	0.25 in	Natural	Gold	Push-Pull	2	-55 °C	125 °C	UL94 V-0	Shrouded - 4 Wall	All
Samtec Inc. HTSS-107-01-T-DV-01	0.1 in	2.54 mm	Phosphor Bronze	Header			2.54 mm	0.1 in	Solder	Male Pin	0.35 in	8.89 mm	14	Liquid Crystal Polymer (LCP)	Tin	Keying Slot	Square	Board to Board Cable	Surface Mount	6.35 mm	0.25 in	Natural		Push-Pull	2	-55 °C	105 ░C	UL94 V-0	Shrouded - 4 Wall		13
Samtec Inc. HTSS-107-01-L-DV-A-06-P-TR	0.1 in	2.54 mm	Phosphor Bronze	Header	10 çin	0.25 çm	2.54 mm	0.1 in	Solder	Male Pin	0.35 in	8.89 mm	14	Liquid Crystal Polymer (LCP)	Tin	Board Guide Keying Slot Pick and Place	Square	Board to Board Cable	Surface Mount	6.35 mm	0.25 in	Natural	Gold	Push-Pull	2	-55 °C	125 °C	UL94 V-0	Shrouded - 4 Wall		13
Samtec Inc. HTSS-107-03-G-D	0.1 in	2.54 mm	Phosphor Bronze	Header	10 çin	0.25 çm	2.54 mm	0.1 in	Solder	Male Pin	0.35 in	8.89 mm	14	Liquid Crystal Polymer (LCP)	Gold	Keying Slot	Square	Board to Board Cable	Through Hole	6.35 mm	0.25 in	Natural	Gold	Push-Pull	2	-55 °C	125 °C	UL94 V-0	Shrouded - 4 Wall	All		0.93 in	23.62 mm	3 µin	0.076 µm	14.35 mm	0.565 in
Samtec Inc. HTSS-107-01-S-DV-06
Samtec Inc. HTSS-124-02-S-D	0.1 in	2.54 mm	Phosphor Bronze	Header	30 Áin	0.76 Ám	2.54 mm	0.1 in	Solder	Male Pin	0.35 in	8.89 mm	48	Liquid Crystal Polymer (LCP)	Tin	Keying Slot	Square	Board to Board Cable	Through Hole	6.35 mm	0.25 in	Natural	Gold	Push-Pull	2	-55 °C	125 °C	UL94 V-0	Shrouded - 4 Wall	All		0.53 in	13.46 mm					0.165 in	4.19 mm
Samtec Inc. HTSS-107-04-G-D-LA	0.1 in	2.54 mm	Phosphor Bronze	Header	10 çin	0.25 çm	2.54 mm	0.1 in	Kinked Pin Solder	Male Pin			14	Liquid Crystal Polymer (LCP)	Gold	Keying Slot	Square	Board to Board Cable	Through Hole Right Angle	6.35 mm	0.25 in	Natural	Gold	Push-Pull	2	-55 °C	125 °C	UL94 V-0	Shrouded - 4 Wall	All				3 µin	0.076 µm	3.3 mm	0.13 in			0.365 in	9.27 mm
Samtec Inc. HTSS-107-01-H-DV-P-TR	0.1 in	2.54 mm	Phosphor Bronze	Header	30 Áin	0.76 Ám	2.54 mm	0.1 in	Solder	Male Pin	0.35 in	8.89 mm	14	Liquid Crystal Polymer (LCP)	Gold	Keying Slot Pick and Place	Square	Board to Board Cable	Surface Mount	6.35 mm	0.25 in	Natural	Gold	Push-Pull	2	-55 °C	125 °C	UL94 V-0	Shrouded - 4 Wall	All				3 µin	0.076 µm
Samtec Inc. HTSS-107-01-S-DV-P-TR	0.1 in	2.54 mm	Phosphor Bronze	Header	30 Áin	0.76 Ám	2.54 mm	0.1 in	Solder	Male Pin	0.35 in	8.89 mm	14	Liquid Crystal Polymer (LCP)	Tin	Keying Slot Pick and Place	Square	Board to Board Cable	Surface Mount	6.35 mm	0.25 in	Natural	Gold	Push-Pull	2	-55 °C	125 °C	UL94 V-0	Shrouded - 4 Wall	All
Samtec Inc. HTSS-107-04-T-D-RA	0.1 in	2.54 mm	Phosphor Bronze	Header			2.54 mm	0.1 in	Solder	Male Pin			14	Liquid Crystal Polymer (LCP)	Tin	Keying Slot	Square	Board to Board Cable	Through Hole Right Angle	6.35 mm	0.25 in	Natural		Push-Pull	2	-55 °C	105 ░C	UL94 V-0	Shrouded - 4 Wall	All						3.3 mm	0.13 in			0.365 in	9.27 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 2.87
Digikey	Tube	26	$ 2.51

Description

General part information

HTSS-107 Series

Headers & Wire Housings .100" High-Temp Shrouded Terminal Strip
