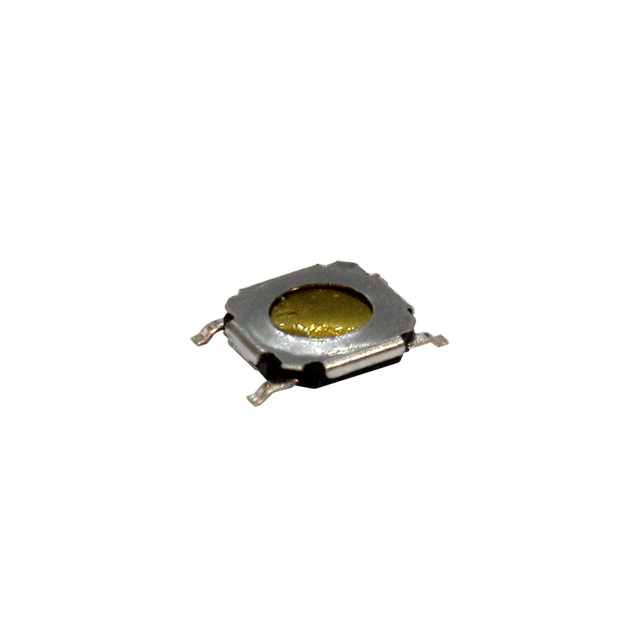

Specification	CS1204F160

Actuator Height off PCB (Vertical)	0.8 mm
Actuator Material	Nickel Plated, Brass
Actuator Orientation	Top Actuated
Actuator Type	Flush
Circuit	SPST-NO
Contact Rating (Current)	0.05 A
Illumination	Non-Illuminated
Mounting Type	Surface Mount
Operating Force	160 gf
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Outline Length	5.2 mm
Outline Width	5.2 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	Gull Wing

CS1204 Series

Part	Actuator Material	Switch Travel	Contact Rating (Current)	Actuator Height off PCB (Vertical)	Termination Style	Mounting Type	Circuit	Switch Function	Outline Length	Outline Width	Operating Force	Operating Temperature (Min)	Operating Temperature (Max)	Actuator Orientation	Illumination	Actuator Type
CIT Relay and Switch CS1204F160	Brass Nickel Plated	0.25 mm	0.05 A	0.8 mm	Gull Wing	Surface Mount	SPST-NO	Off-Mom	5.2 mm	5.2 mm	160 gf	-40 °C	85 °C	Top Actuated	Non-Illuminated	Flush
