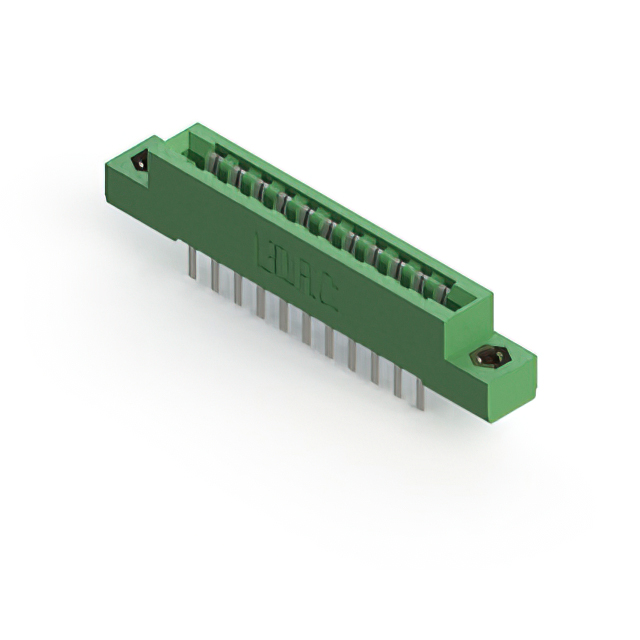

807-022-440-208

Active

EDAC Inc.

CONN EDGE DUAL FMALE 22POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

807-022-440-208

Active

EDAC Inc.

CONN EDGE DUAL FMALE 22POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	807-022-440-208

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	22 positions
Number of Positions/Bay/Row [custom]	11
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Wire Wrap
Termination Rows	2

807-022 Series

...

Part	Termination Rows	Number of Positions/Bay/Row [custom]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Termination	Features	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Type	Contact Material	Card Type	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Mounting Type	Color	Flange Feature	Read Out	Gender	Material - Insulation	Contact Finish	Flange Feature	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 807-022-560-208	2	11	10 Áin	0.25 Ám	22 positions	Solder	Card Extender	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	Copper Alloy	Non Specified - Dual Edge	2	125 °C	-40 °C	0.156 in	3.96 mm	Board Edge Straddle Mount	Green	4-40 Flush Mount Threaded Insert Top Opening	Dual	Female	Diallyl Phthalate (DAP)	Gold
EDAC Inc. 807-022-440-208	2	11			22 positions	Wire Wrap		1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	Copper Alloy	Non Specified - Dual Edge	2	125 °C	-40 °C	0.156 in	3.96 mm	Through Hole	Green	4-40 Flush Mount Threaded Insert Top Opening	Dual	Female	Diallyl Phthalate (DAP)	Tin
EDAC Inc. 807-022-501-112	1	22	10 Áin	0.25 Ám	44	Solder Eyelet(s)		1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	Copper Alloy	Non Specified - Dual Edge	2	125 °C	-40 °C	0.156 in	3.96 mm	Through Hole	Green	Side Mount Opening Unthreaded	Dual	Female	Diallyl Phthalate (DAP)	Gold	3.25 mm	0.128 in
EDAC Inc. 807-022-525-112	1	22	10 Áin	0.25 Ám	22 positions	Solder		1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	Copper Alloy	Non Specified - Single Edge	1	125 °C	-40 °C	0.156 in	3.96 mm	Through Hole	Green	Side Mount Opening Unthreaded	Single	Female	Diallyl Phthalate (DAP)	Gold	3.25 mm	0.128 in
EDAC Inc. 807-022-460-202	2	11			22 positions	Solder	Card Extender	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	Copper Alloy	Non Specified - Dual Edge	2	125 °C	-40 °C	0.156 in	3.96 mm	Board Edge Straddle Mount	Green	Flush Mount Top Opening Unthreaded	Dual	Female	Diallyl Phthalate (DAP)	Tin			3.25 mm	0.128 "
EDAC Inc. 807-022-421-108	1	22			44	Solder		1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	Copper Alloy	Non Specified - Dual Edge	2	125 °C	-40 °C	0.156 in	3.96 mm	Through Hole	Green	4-40 Flush Mount Threaded Insert Top Opening	Dual	Female	Diallyl Phthalate (DAP)	Tin
EDAC Inc. 807-022-458-202	2	11			22 positions	Solder		1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	Copper Alloy	Non Specified - Dual Edge	2	125 °C	-40 °C	0.156 in	3.96 mm	Through Hole Right Angle	Green	Flush Mount Top Opening Unthreaded	Single	Female	Diallyl Phthalate (DAP)	Tin			3.25 mm	0.128 "
EDAC Inc. 807-022-557-112	1	22	10 Áin	0.25 Ám	44	Solder		1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	Copper Alloy	Non Specified - Dual Edge	2	125 °C	-40 °C	0.156 in	3.96 mm	Through Hole Right Angle	Green	Side Mount Opening Unthreaded	Dual	Female	Diallyl Phthalate (DAP)	Gold	3.25 mm	0.128 in
EDAC Inc. 807-022-557-108	1	22	10 Áin	0.25 Ám	44	Solder		1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	Copper Alloy	Non Specified - Dual Edge	2	125 °C	-40 °C	0.156 in	3.96 mm	Through Hole Right Angle	Green	4-40 Flush Mount Threaded Insert Top Opening	Dual	Female	Diallyl Phthalate (DAP)	Gold
EDAC Inc. 807-022-458-212	2	11			22 positions	Solder		1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	Copper Alloy	Non Specified - Dual Edge	2	125 °C	-40 °C	0.156 in	3.96 mm	Through Hole Right Angle	Green	Side Mount Opening Unthreaded	Single	Female	Diallyl Phthalate (DAP)	Tin	3.25 mm	0.128 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 59.08
Newark	Each	1	$ 70.91
		100	$ 46.23
		250	$ 40.36
		500	$ 37.36
		1000	$ 30.13

Description

General part information

807-022 Series

22 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green
