IL13-C14-H05-3100-200

Active

TE Connectivity Raychem Cable Protection

CORD 18AWG 320C14 - C13 6.56'

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CORD 18AWG 320C14 - C13 6.56'

Technical Specifications

Parameters and characteristics for this part

Specification	IL13-C14-H05-3100-200

1st Connector	IEC 320-C14
Approval Agency Marking	SAA, KEMA, CB, KC
Approved Countries	New Zealand, Australia, Korea, Netherlands
Color	Black
Cord Type	H05VV-F
Current Rating (Amps)	10 A
Features	Locking
Length [x]	2 m
Length [x]	6.56 ft
Number of Conductors	3
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Shielding	Unshielded
Style	Male Pins, Female Sockets
Voltage Rating	250 VAC
Wire Gauge	18 AWG

Part	Number of Conductors	Length [x]	Length [x]	Wire Gauge	Current Rating (Amps)	Color	Style	Voltage Rating	Approval Agency Marking	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Features	1st Connector	Cord Type	Approved Countries	Length	Length
TE Connectivity Raychem Cable Protection IL13-C14-H05-3100-200	3	2 m	6.56 ft	18 AWG	10 A	Black	Female Sockets Male Pins	250 VAC	CB KC KEMA SAA	Unshielded	70 °C	-25 °C	Locking	IEC 320-C14	H05VV-F	Australia Korea Netherlands New Zealand
TE Connectivity Raychem Cable Protection IL13-C14-SVT-3100-183	3			18 AWG	12 A	Black	Female Sockets Male Pins	125 VAC	cUL UL	Unshielded	70 °C	-25 °C	Locking	IEC 320-C14	SVT	Canada United States	6 ft	1.83 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

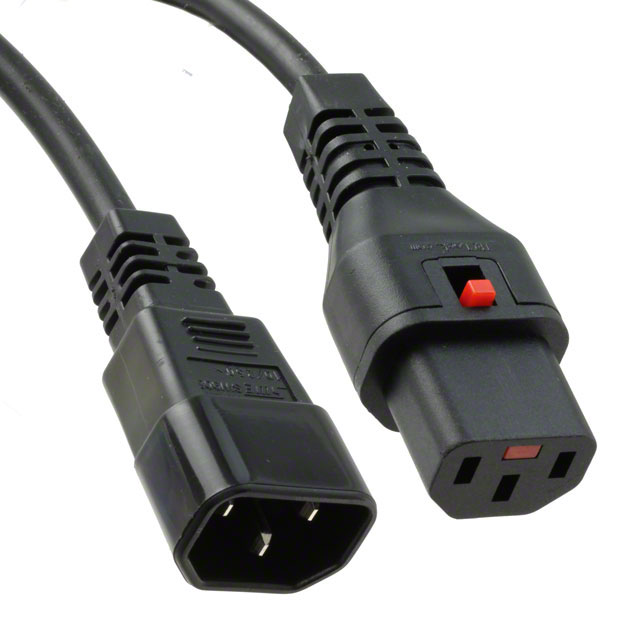

6.56' (2.00m) Power Cord Black IEC 320-C14 To IEC 320-C13 H05VV-F
