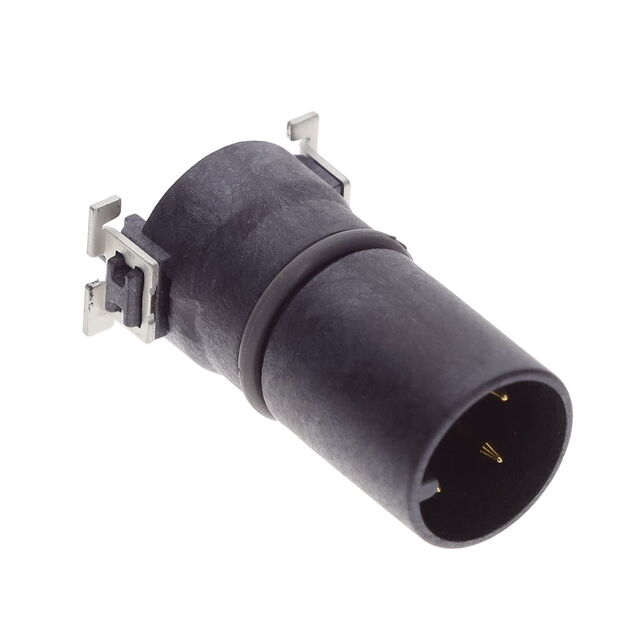

M12A-04PMMT-EE0001
ActiveAmphenol LTW
M SERIES, M12, 4A, 04 PINS, SMT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M12A-04PMMT-EE0001
ActiveAmphenol LTW
M SERIES, M12, 4A, 04 PINS, SMT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M12A-04PMMT-EE0001 |
|---|---|
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 4 A |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 4 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | A |
| Primary Material | Plastic |
| Shell Material | Nylon, Glass Filled, Polyamide (PA) |
| Shell Size - Insert | M12-4 |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.11 | |
| 10 | $ 3.50 | |||
| 25 | $ 3.28 | |||
| 50 | $ 3.12 | |||
| Digi-Reel® | 1 | $ 4.11 | ||
| 10 | $ 3.50 | |||
| 25 | $ 3.28 | |||
| 50 | $ 3.12 | |||
| Tape & Reel (TR) | 100 | $ 0.06 | ||
| 200 | $ 0.05 | |||
| 300 | $ 0.05 | |||
| 500 | $ 0.05 | |||
| 700 | $ 0.05 | |||
| 1000 | $ 0.05 | |||
| 2500 | $ 0.04 | |||
| 5000 | $ 0.04 | |||
| 10000 | $ 0.04 | |||
Description
General part information
M12A-04PMMT Series
4 Position Circular Connector Receptacle, Male Pins Solder
