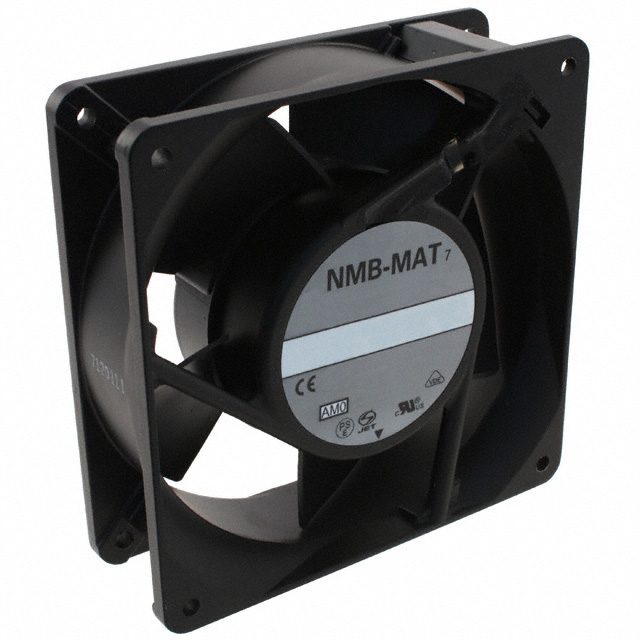

4715HS-12T-B50-AM0
ActiveNMB TECHNOLOGIES
FAN AXIAL 119X38MM 115VAC TERM
Deep-Dive with AI
Search across all available documentation for this part.
4715HS-12T-B50-AM0
ActiveNMB TECHNOLOGIES
FAN AXIAL 119X38MM 115VAC TERM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 4715HS-12T-B50-AM0 |
|---|---|
| Air Flow | 2.97 mł/min |
| Air Flow | 105.9 CFM |
| Approval Agency | UL, VDE, CE |
| Bearing Type | Ball |
| Current Rating (Amps) | 25 mA |
| Fan Type | Tubeaxial |
| Ingress Protection | IP54 - Dust Protected, Water Resistant |
| Lifetime @ Temp. | 100000 Hrs |
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Material - Frame | Aluminum |
| Noise | 44 dB |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 15.5 W |
| RPM | 3100 RPM |
| Size / Dimension [x] | 119 mm |
| Size / Dimension [y] | 119 mm |
| Static Pressure | 0.4 in H2O |
| Static Pressure | 99.6 Pa |
| Termination | 2 Terminals |
| Voltage - Rated | 115 VAC |
| Weight | 589.7 g |
| Weight | 1.3 lbs |
| Width [y] | 38 mm |
4715HS Series
| Part | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Fan Type | Weight | Weight | Lifetime @ Temp. | Power (Watts) | RPM | Material - Blade | Air Flow | Air Flow | Termination | Bearing Type | Material - Frame | Static Pressure | Static Pressure | Width [y] | Voltage - Rated | Size / Dimension [y] | Size / Dimension [x] | Approval Agency | Noise | Current Rating (Amps) | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NMB TECHNOLOGIES | 65 °C | 65 °C | -10 °C | -10 °C | Tubeaxial | 589.7 g | 1.3 lbs | 100000 Hrs | 15.5 W | 3100 RPM | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 2.97 mł/min | 105.9 CFM | 2 Terminals | Ball | Aluminum | 0.4 in H2O | 99.6 Pa | 38 mm | 230 VAC | 119 mm | 119 mm | CE UL VDE | 44 dB | 12 mA | |
NMB TECHNOLOGIES | 65 °C | 65 °C | -10 °C | -10 °C | Tubeaxial | 589.7 g | 1.3 lbs | 100000 Hrs | 15.5 W | 3100 RPM | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 2.97 mł/min | 105.9 CFM | 2 Terminals | Ball | Aluminum | 0.4 in H2O | 99.6 Pa | 38 mm | 220 VAC | 119 mm | 119 mm | CE UL VDE | 44 dB | ||
NMB TECHNOLOGIES | 65 °C | 65 °C | -10 °C | -10 °C | Tubeaxial | 589.7 g | 1.3 lbs | 100000 Hrs | 15.5 W | 3100 RPM | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 2.97 mł/min | 105.9 CFM | 2 Terminals | Ball | Aluminum | 0.4 in H2O | 99.6 Pa | 38 mm | 240 VAC | 119 mm | 119 mm | CE UL VDE | 44 dB | 120 mA | |
NMB TECHNOLOGIES | 65 °C | 65 °C | -10 °C | -10 °C | Tubeaxial | 589.7 g | 1.3 lbs | 100000 Hrs | 15.5 W | 3100 RPM | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 2.97 mł/min | 105.9 CFM | 2 Terminals | Ball | Aluminum | 0.4 in H2O | 99.6 Pa | 38 mm | 115 VAC | 119 mm | 119 mm | CE UL VDE | 44 dB | 25 mA | IP54 - Dust Protected Water Resistant |
NMB TECHNOLOGIES | 65 °C | 65 °C | -10 °C | -10 °C | Tubeaxial | 589.7 g | 1.3 lbs | 100000 Hrs | 15.5 W | 3100 RPM | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 2.97 mł/min | 105.9 CFM | 2 Terminals | Ball | Aluminum | 0.4 in H2O | 99.6 Pa | 38 mm | 100 VAC | 119 mm | 119 mm | CE UL VDE | 44 dB | 0.29 A | |
NMB TECHNOLOGIES | 65 °C | 65 °C | -10 °C | -10 °C | Tubeaxial | 589.7 g | 1.3 lbs | 100000 Hrs | 15.5 W | 3100 RPM | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 2.97 mł/min | 105.9 CFM | 2 Terminals | Ball | Aluminum | 0.4 in H2O | 99.6 Pa | 38 mm | 240 VAC | 119 mm | 119 mm | CE UL VDE | 44 dB | 120 mA | |
NMB TECHNOLOGIES | 65 °C | 65 °C | -10 °C | -10 °C | Tubeaxial | 589.7 g | 1.3 lbs | 100000 Hrs | 15.5 W | 3100 RPM | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 2.97 mł/min | 105.9 CFM | 2 Terminals | Ball | Aluminum | 0.4 in H2O | 99.6 Pa | 38 mm | 115 VAC | 119 mm | 119 mm | CE UL VDE | 44 dB | 25 mA | |
NMB TECHNOLOGIES | 65 °C | 65 °C | -10 °C | -10 °C | Tubeaxial | 589.7 g | 1.3 lbs | 100000 Hrs | 15.5 W | 3100 RPM | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 2.97 mł/min | 105.9 CFM | 2 Terminals | Ball | Aluminum | 0.4 in H2O | 99.6 Pa | 38 mm | 200 VAC | 119 mm | 119 mm | CE UL VDE | 44 dB | 150 mA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 33.43 | |
| 20 | $ 30.53 | |||
| 40 | $ 29.37 | |||
| 60 | $ 27.44 | |||
| 100 | $ 25.31 | |||
| 260 | $ 24.92 | |||
Description
General part information
4715HS Series
Fan Tubeaxial 115VAC Square - 119mm L x 119mm H Ball 105.9 CFM (2.97mł/min) 2 Terminals
