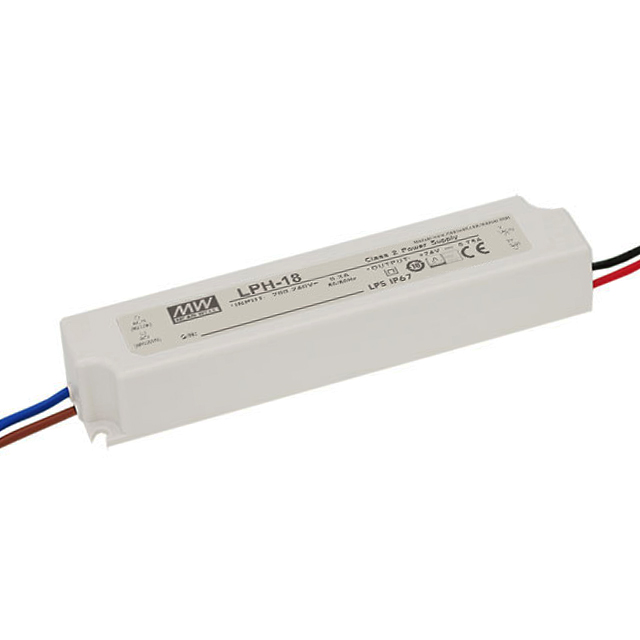

LPH-18-12
ActiveMEAN WELL USA Inc.
LED DRIVER CV AC/DC 12V 1.5A
LPH-18-12
ActiveMEAN WELL USA Inc.
LED DRIVER CV AC/DC 12V 1.5A
Description
General part information
LPH-18 Series
1.5A 12V Constant Voltage LED Driver AC DC Converter Topology 1 Output
Technical Specifications
Parameters and characteristics for this part
| Specification | LPH-18-12 |
|---|---|
| Approval Agency | TUV, CB, CE |
| Current - Output (Max) | 1.5 A |
| Efficiency | 77 % |
| Features | OTP, OCP, OVP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -30 °C |
| Power (Watts) | 18 W |
| Ratings | IP67 |
| Size / Dimension Height | 0.87 in |
| Size / Dimension Length | 5.51 in |
| Size / Dimension Width | 1.18 in |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Voltage |
| Voltage - Input (Max) | 264 V |
| Voltage - Input (Min) | 180 V |
| Voltage - Isolation | 3 kV |
| Voltage - Output | 12 V |
