Q-2E054000D084i

Active

Amphenol Custom Cable

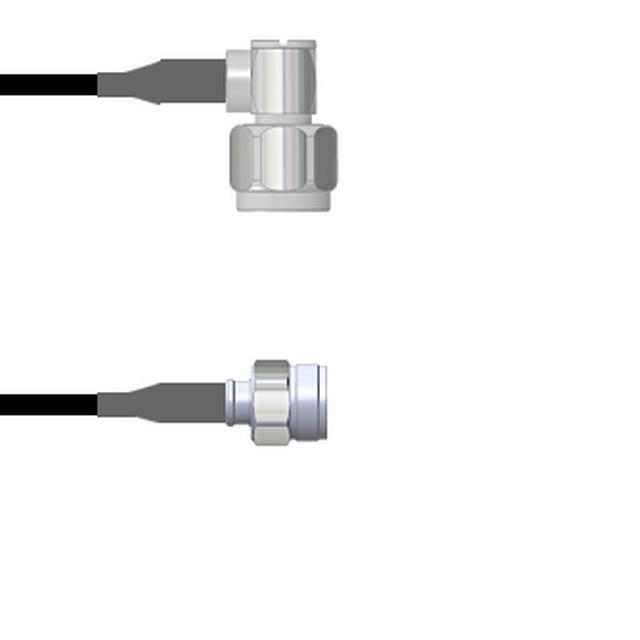

CBL ASSY NTYPE-TNC PLUG-PLUG 7'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2E054000D084i

Active

Amphenol Custom Cable

CBL ASSY NTYPE-TNC PLUG-PLUG 7'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2E054000D084i

1st Connector	N-Type Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	LMR 195
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	84 in
Length	2.1 m
Length	7 ft
Overall Impedance	50 Ohms

Q-2E0540 Series

Part	2nd Connector Mounting Type	Features	1st Connector Mounting Type	Overall Impedance	Length [x]	Length [x]	2nd Connector	Color	1st Connector	2nd Contact Gender	Cable Type	1st Contact Gender	Frequency - Max [Max]	Length	Length	Length
Amphenol Custom Cable Q-2E054000D018i	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	50 Ohms	457.2 mm	457.2 mm	TNC Plug	Black	N-Type Plug Right Angle	Male	LMR 195	Male	6000 MHz
Amphenol Custom Cable Q-2E054000D024i	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	50 Ohms			TNC Plug	Black	N-Type Plug Right Angle	Male	LMR 195	Male	6000 MHz	24 "	609.6 mm
Amphenol Custom Cable Q-2E054000D006i	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	50 Ohms			TNC Plug	Black	N-Type Plug Right Angle	Male	LMR 195	Male	6000 MHz	6 in	152.4 mm
Amphenol Custom Cable Q-2E054000D2.5M	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	50 Ohms			TNC Plug	Black	N-Type Plug Right Angle	Male	LMR 195	Male	6000 MHz	98.4 in	2.5 m	8.2 '
Amphenol Custom Cable Q-2E054000D.75M	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	50 Ohms			TNC Plug	Black	N-Type Plug Right Angle	Male	LMR 195	Male	6000 MHz	29.53 "	750 mm
Amphenol Custom Cable Q-2E054000D003M	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	50 Ohms			TNC Plug	Black	N-Type Plug Right Angle	Male	LMR 195	Male	6000 MHz	118.1 in	3 m	9.8 '
Amphenol Custom Cable Q-2E054000D012i	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	50 Ohms			TNC Plug	Black	N-Type Plug Right Angle	Male	LMR 195	Male	6000 MHz	12 "	304.8 mm
Amphenol Custom Cable Q-2E054000D084i	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	50 Ohms			TNC Plug	Black	N-Type Plug Right Angle	Male	LMR 195	Male	6000 MHz	84 in	2.1 m	7 ft
Amphenol Custom Cable Q-2E054000D108i	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	50 Ohms			TNC Plug	Black	N-Type Plug Right Angle	Male	LMR 195	Male	6000 MHz	108 in	2.7 m	9 ft
Amphenol Custom Cable Q-2E054000D009i	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	50 Ohms			TNC Plug	Black	N-Type Plug Right Angle	Male	LMR 195	Male	6000 MHz	9 "	228.6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 101.32
		25	$ 99.38
		50	$ 97.43
		100	$ 95.48
		250	$ 93.53

Description

General part information

Q-2E0540 Series

Cable Assembly Coaxial N-Type to TNC LMR 195 84.0" (2.1m) 7.0'

Documents

Technical documentation and resources

No documents available
