M2026QD1W03

Obsolete

NKK Switches

BUSHING MOUNT MINIATURE TOGGLE

Search across all available documentation for this part.

Obsolete

NKK Switches

BUSHING MOUNT MINIATURE TOGGLE

Technical Specifications

Parameters and characteristics for this part

Specification	M2026QD1W03

Actuator Length [x]	14 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	1/4-40
Circuit	SP3T
Current Rating (Amps)	3 A, 6 A
Electrical Life	25000 Steps
Features	Jumper needed to achieve triple throw
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	Mom-On-Mom
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Illumination	Electrical Life	Features	Actuator Type	Voltage Rating - DC	Actuator Length [x]	Voltage Rating - AC	Current Rating (Amps)	Bushing Thread	Switch Function	Circuit	Termination Style	Panel Cutout Dimensions [diameter]	Actuator Material	Operating Temperature [Min]	Operating Temperature [Max]
NKK Switches M2026QD1W03	Non-Illuminated	25000 Steps	Jumper needed to achieve triple throw	Standard Round	30 V	14 mm	125 V	3 A 6 A	1/4-40	Mom-On-Mom	SP3T	PC Pin	6.5 mm	Brass Chrome Plated	-30 ░C	85 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

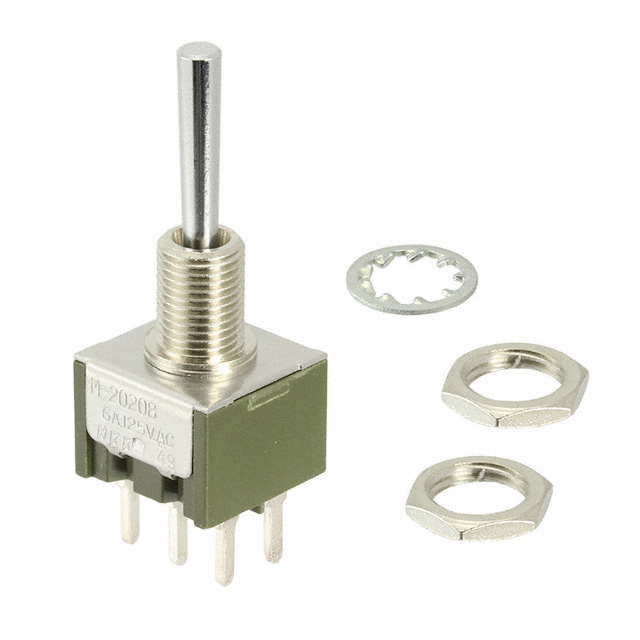

Toggle Switch SP3T Panel Mount
