IXBX50N360HV

Active

IXYS

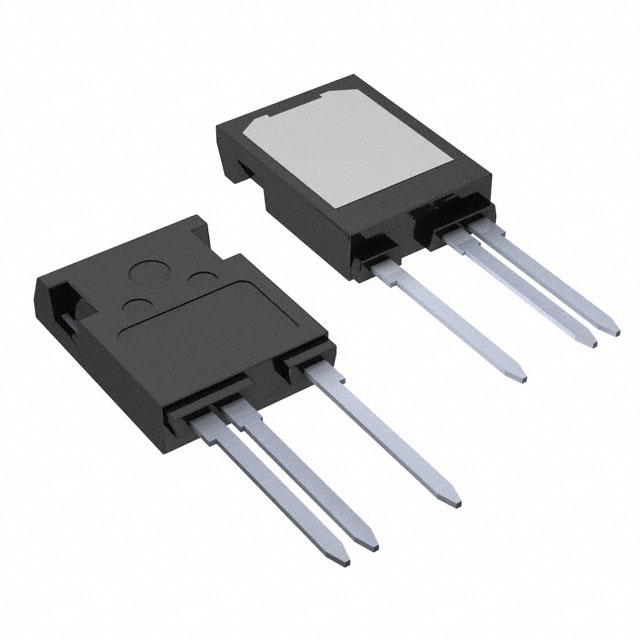

IGBT 3600V 125A TO247PLUS-HV

Search across all available documentation for this part.

Active

IXYS

IGBT 3600V 125A TO247PLUS-HV

Technical Specifications

Parameters and characteristics for this part

Specification	IXBX50N360HV

Current - Collector (Ic) (Max) [Max]	125 A
Current - Collector Pulsed (Icm)	420 A
Gate Charge	210 nC
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	TO-247-3 Variant
Power - Max [Max]	660 W
Reverse Recovery Time (trr)	1.7 µs
Supplier Device Package	TO-247PLUS-HV
Td (on/off) @ 25°C [Max]	205 ns
Td (on/off) @ 25°C [Min]	46 ns
Test Condition	5 Ohm, 15 V, 50 A, 960 V
Vce(on) (Max) @ Vge, Ic	2.9 V
Voltage - Collector Emitter Breakdown (Max)	3600 V

Part	Supplier Device Package	Package / Case	Td (on/off) @ 25°C [Min]	Td (on/off) @ 25°C [Max]	Voltage - Collector Emitter Breakdown (Max)	Mounting Type	Current - Collector Pulsed (Icm)	Reverse Recovery Time (trr)	Gate Charge	Vce(on) (Max) @ Vge, Ic	Test Condition	Current - Collector (Ic) (Max) [Max]	Power - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]
IXYS IXBX50N360HV	TO-247PLUS-HV	TO-247-3 Variant	46 ns	205 ns	3600 V	Through Hole	420 A	1.7 µs	210 nC	2.9 V	5 Ohm 15 V 50 A 960 V	125 A	660 W	-55 °C	150 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

IGBT 3600 V 125 A 660 W Through Hole TO-247PLUS-HV
