R142157000W

Active

Radiall USA, Inc.

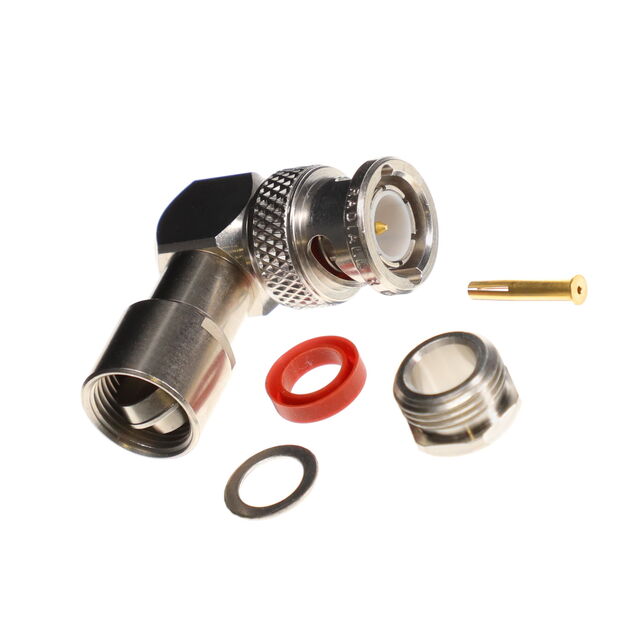

RF BNC CONNECTOR, 1 CONTACT(S), MALE, LOCKING, PLUG

Search across all available documentation for this part.

Active

Radiall USA, Inc.

RF BNC CONNECTOR, 1 CONTACT(S), MALE, LOCKING, PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	R142157000W

Body Finish	Nickel
Body Material	Brass
Cable Group	62, RG-59
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	1.5 GHz
Housing Color	Silver
Impedance	75 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	500 V

Part	Connector Type	Body Material	Connector Style	Mounting Type	Center Contact Plating	Frequency - Max [Max]	Center Contact Material	Housing Color	Fastening Type	Shield Termination	Number of Ports	Contact Termination	Mating Cycles	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Body Finish	Dielectric Material	Cable Group
Radiall USA, Inc. R142157000W	Male Pin Plug	Brass	BNC	Free Hanging (In-Line) Right Angle	Gold	1.5 GHz	Brass	Silver	Bayonet Lock	Clamp	1	Solder	500	75 Ohms	-65 ░C	165 °C	500 V	Nickel	Polytetrafluoroethylene (PTFE)	62 RG-59
Radiall USA, Inc. R142157000	Male Pin Plug	Brass	BNC	Free Hanging (In-Line) Right Angle	Gold	1.5 GHz	Brass	Silver	Bayonet Lock	Clamp	1	Solder	500	75 Ohms	-65 ░C	165 °C	500 V	Nickel	Polytetrafluoroethylene (PTFE)	62 RG-59

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line), Right Angle Solder
