SI5395A-A-EVB

Active

Skyworks Solutions Inc.

EVAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Si5395, Si5394, Si5392

SI5395A-A-EVB

Active

Skyworks Solutions Inc.

EVAL

Deep-Dive with AI

DocumentsDatasheet Si5395, Si5394, Si5392

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SI5395A-A-EVB

Contents	Board(s)
Function	PLL
Supplied Contents	Board(s)
Type	Timing
Utilized IC / Part	Si5395A

SI5395 Series

Part	Input	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Type	Frequency - Max [Max]	Divider/Multiplier	Number of Circuits	Package / Case	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Ratio - Input:Output	Output	Function	Utilized IC / Part	Supplied Contents	Contents
Skyworks Solutions Inc. SI5395E-A-GMR	LVCMOS	1.89 V 3.47 V	1.71 V 3.14 V	Surface Mount	Clock Multiplier Jitter Attenuator	644.53 MHz	Yes/No	1	64-TFLGA Exposed Pad	64-LGA (9x9)	85 °C	-40 °C	4 12	CML HCSL LVCMOS LVDS LVPECL
Skyworks Solutions Inc. SI5395M-A-GMR	LVCMOS	1.89 V 3.47 V	1.71 V 3.14 V	Surface Mount	Clock Multiplier Jitter Attenuator	350 MHz	Yes/No	1	64-TFLGA Exposed Pad	64-LGA (9x9)	85 °C	-40 °C	4 12	CML HCSL LVCMOS LVDS LVPECL
Skyworks Solutions Inc. SI5395K-A-GMR	LVCMOS	1.89 V 3.47 V	1.71 V 3.14 V	Surface Mount	Clock Multiplier Jitter Attenuator	350 MHz	Yes/No	1	64-TFLGA Exposed Pad	64-LGA (9x9)	85 °C	-40 °C	4 12	CML HCSL LVCMOS LVDS LVPECL
Skyworks Solutions Inc. SI5395B-A-GMR
Skyworks Solutions Inc. SI5395P-A-EVB					Timing										PLL	Si5395P	Board(s)	Board(s)
Skyworks Solutions Inc. SI5395A-A-EVB					Timing										PLL	Si5395A	Board(s)	Board(s)
Skyworks Solutions Inc. SI5395B-A-GM	Clock Crystal LVCMOS	1.89 V 3.47 V	1.71 V 3.14 V	Surface Mount	Clock Multiplier Jitter Attenuator	350 MHz	Yes/No	1	64-VFQFN Exposed Pad	64-QFN (9x9)	85 °C	-40 °C	4 12	CML HCSL LVCMOS LVDS LVPECL
Skyworks Solutions Inc. SI5395K-A-GM
Skyworks Solutions Inc. SI5395D-A-GMR
Skyworks Solutions Inc. SI5395A-A-GM	LVCMOS	1.89 V 3.47 V	1.71 V 3.14 V	Surface Mount	Clock Multiplier Jitter Attenuator	1.028 GHz	Yes/No	1	64-VFQFN Exposed Pad	64-QFN (9x9)	85 °C	-40 °C	4 12	CML HCSL LVCMOS LVDS LVPECL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 576.00

Description

General part information

SI5395 Series

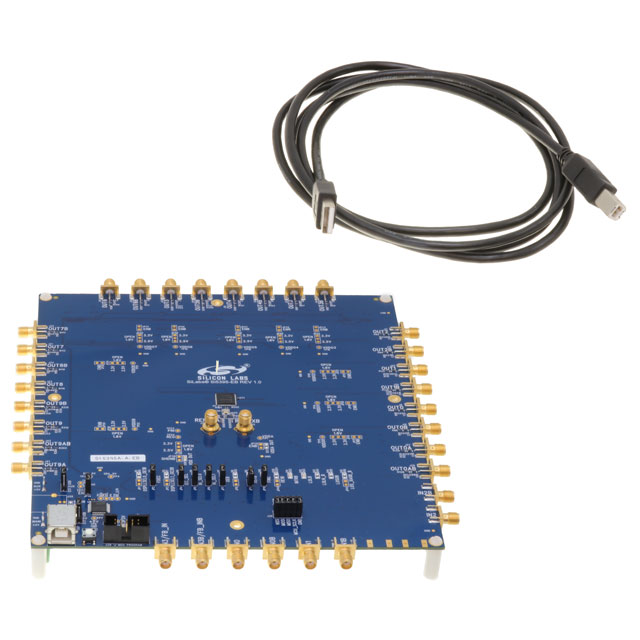

Si5395A PLL Timing Evaluation Board

Documents

Technical documentation and resources

Datasheet

Si5395, Si5394, Si5392

Datasheet
