SEAM8-30-S05.0-S-06-3

Active

Samtec Inc.

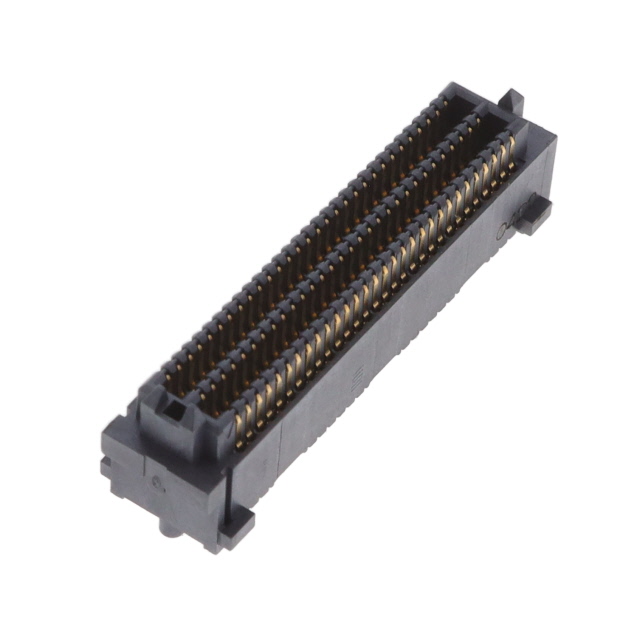

CONN OPEN PIN FIELD ARRAY HDR 180 POS 0.8MM SOLDER ST TOP ENTRY SMD SEARAY™ T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SEAM8-30-S05.0-S-06-3

Active

Samtec Inc.

CONN OPEN PIN FIELD ARRAY HDR 180 POS 0.8MM SOLDER ST TOP ENTRY SMD SEARAY™ T/R

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SEAM8-30-S05.0-S-06-3

Connector Type	High Density Array, Male
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Board Guide
Height Above Board	0.297 in
Height Above Board	7.54 mm
Mated Stacking Heights	10 mm
Mounting Type	Surface Mount
Number of Positions	180
Number of Rows	6
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

SEAM8-30 Series

Part	Number of Rows	Pitch [x]	Pitch [x]	Mated Stacking Heights	Contact Finish	Height Above Board [z]	Height Above Board [z]	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Features	Number of Positions	Mounting Type	Height Above Board	Height Above Board
Samtec Inc. SEAM8-30-S02.0-L-06-2-K	6	0.8 mm	0.031 in	7 mm	Gold	4.55 mm	0.179 in	10 Áin	0.25 Ám	High Density Array Male	Board Guide Pick and Place	180	Surface Mount
Samtec Inc. SEAM8-30-S05.0-L-06-2	6	0.8 mm	0.031 in	10 mm	Gold			10 Áin	0.25 Ám	High Density Array Male	Board Guide	180	Surface Mount	0.297 in	7.54 mm
Samtec Inc. SEAM8-30-S02.0-S-06-2	6	0.8 mm	0.031 in	7 mm	Gold	4.55 mm	0.179 in	30 Áin	0.76 Ám	High Density Array Male	Board Guide	180	Surface Mount
Samtec Inc. SEAM8-30-S02.0-S-04-2		0.8 mm	0.031 in	7 mm	Gold	4.55 mm	0.179 in	30 Áin	0.76 Ám	High Density Array Male	Board Guide	120	Surface Mount
Samtec Inc. SEAM8-30-S02.0-S-08-2-GP	8	0.8 mm	0.031 in	7 mm	Gold	4.55 mm	0.179 in	30 Áin	0.76 Ám	High Density Array Male	Board Guide Mating Flange	240	Surface Mount
Samtec Inc. SEAM8-30-S02.0-S-10-2-GP	10	0.8 mm	0.031 in	7 mm	Gold	4.55 mm	0.179 in	30 Áin	0.76 Ám	High Density Array Male	Board Guide Mating Flange	300	Surface Mount
Samtec Inc. SEAM8-30-S02.0-S-08-2-K	8	0.8 mm	0.031 in	7 mm	Gold	4.55 mm	0.179 in	30 Áin	0.76 Ám	High Density Array Male	Board Guide Pick and Place	240	Surface Mount
Samtec Inc. SEAM8-30-S02.0-S-10-2-K	10	0.8 mm	0.031 in	7 mm	Gold	4.55 mm	0.179 in	30 Áin	0.76 Ám	High Density Array Male	Board Guide Pick and Place	300	Surface Mount
Samtec Inc. SEAM8-30-S05.0-S-06-3	6	0.8 mm	0.031 in	10 mm	Gold			30 Áin	0.76 Ám	High Density Array Male	Board Guide	180	Surface Mount	0.297 in	7.54 mm
Samtec Inc. SEAM8-30-S05.0-S-06-2-K	6	0.8 mm	0.031 in	10 mm	Gold			30 Áin	0.76 Ám	High Density Array Male	Board Guide Pick and Place	180	Surface Mount	0.297 in	7.54 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 23.12
		10	$ 21.89
		25	$ 21.07
		50	$ 20.55
		100	$ 16.77
	Tape & Reel (TR)	275	$ 15.51
		550	$ 14.93

Description

General part information

SEAM8-30 Series

180 Position Connector High Density Array, Male Surface Mount Gold

Documents

Technical documentation and resources
