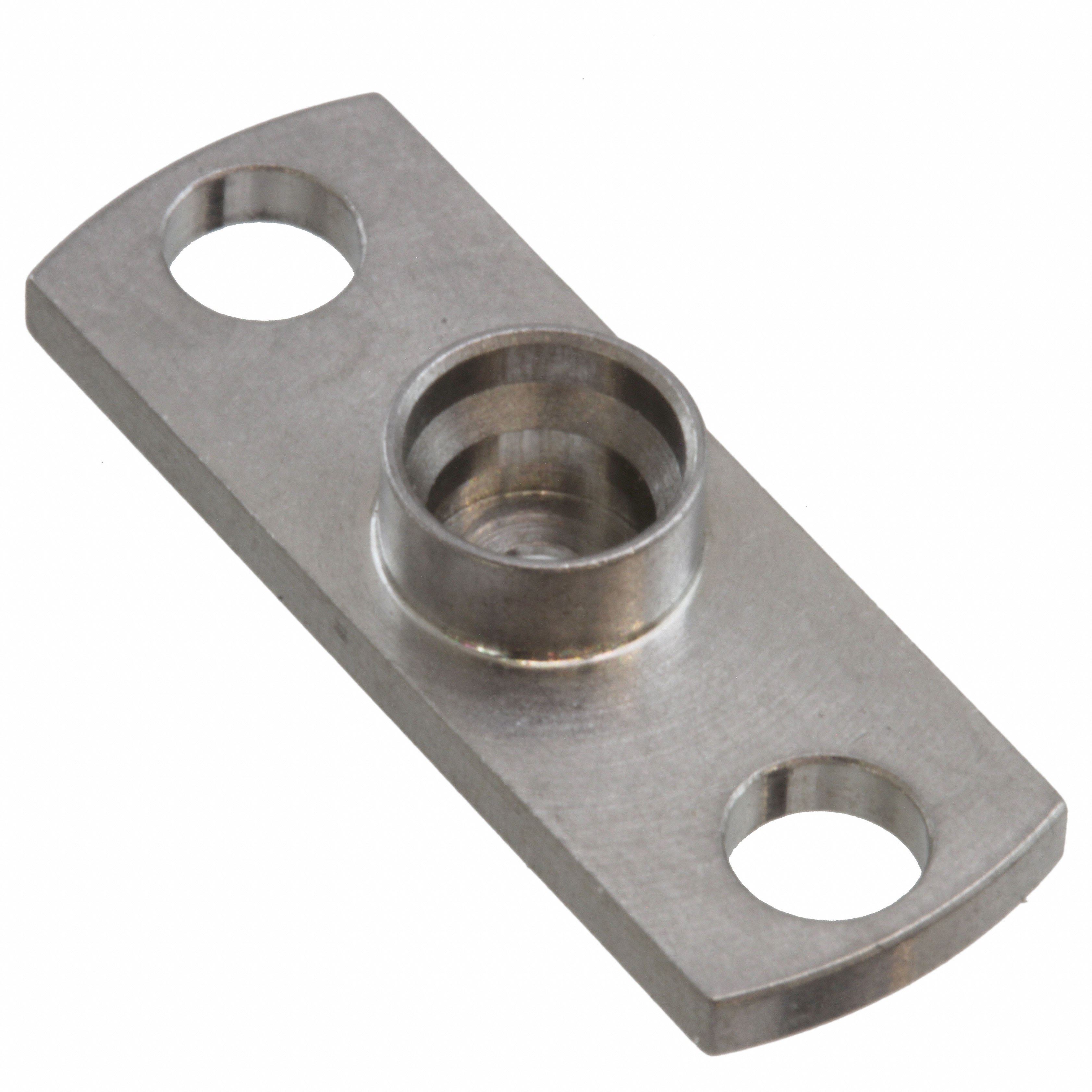

CONN SHROUD FOR SMP CONNECTORS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1056741-1
ActiveTE Connectivity Aerospace, Defense and Marine
CONN SHROUD FOR SMP CONNECTORS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1056741-1 | 1056 Series |
|---|---|---|
| Accessory Type | Shroud | Shroud, Housing |
| Adapter Series | - | SMA to OSMP |
| Adapter Type | - | Plug to Plug |
| Body Finish | - | Gold |
| Body Material | Stainless Steel | Beryllium Copper, Stainless Steel |
| Cable Group | - | Semi Rigid, RG-405 (.085" Semi Rigid) |
| Cable Group | - | 0.047 in |
| Center Contact Material | - | Beryllium Copper |
| Center Contact Plating | - | Gold |
| Center Gender | - | Male to Male |
| Color | Silver | Silver |
| Connector Style | - | SMA |
| Connector Type | - | Female Socket, Jack |
| Contact Termination | - | Solder |
| Conversion Type | - | Between Series |
| Convert From (Adapter End) | - | SMA Plug, Male Pin |
| Dielectric Material | - | Tetrafluoroethylene (TFE), Polytetrafluoroethylene (PTFE) |
| Fastening Type | - | Snap-On, Threaded |
| Features | Full Detent, Flange Mount (2 Hole) | EMI Ring, Full Detent, Flange Mount (2 Hole) |
| For Use With/Related Products | SMP Connectors | SMP Connectors |
| Frequency - Max | - | 18 - 40 GHz |
| Housing Color | - | Gold |
| Impedance | - | 50 Ohms |
| Includes | - | Insulator, Connector, Contact |
| Mounting Type | - | Free Hanging (In-Line), Right Angle, Through Hole |
| Number of Ports | - | 1 |
| Operating Temperature | - | -65 ░C |
| Operating Temperature | - | 165 °C |
| Shield Termination | - | Solder |
| Style | - | Straight |
| Voltage Rating | - | 335 V |
1056 Series
2908 5006 62
| Part | Housing Color | Voltage Rating | Fastening Type | Impedance | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Shield Termination | Features | Center Contact Material | Center Contact Plating | Dielectric Material | Body Finish | Number of Ports | Cable Group | Cable Group | Frequency - Max [Max] | Contact Termination | Body Material | Accessory Type | For Use With/Related Products | Color | Style | Center Gender | Adapter Type | Adapter Series | Conversion Type | Convert From (Adapter End) | Includes | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Aerospace, Defense and Marine 1056550-1 | Gold | 335 V | Snap-On | 50 Ohms | Free Hanging (In-Line), Right Angle | -65 ░C | 165 °C | Female Socket, Jack | Solder | EMI Ring | Beryllium Copper | Gold | Tetrafluoroethylene (TFE) | Gold | 1 | Semi Rigid | 0.047 in | 26.5 GHz | Solder | Beryllium Copper | |||||||||||
TE Connectivity Aerospace, Defense and Marine 1056741-1 | Flange Mount (2 Hole), Full Detent | Stainless Steel | Shroud | SMP Connectors | Silver | ||||||||||||||||||||||||||
TE Connectivity Aerospace, Defense and Marine 1056742-1 | Full Detent | Stainless Steel | Housing | SMP Connectors | Silver | ||||||||||||||||||||||||||
TE Connectivity Aerospace, Defense and Marine 1056706-1 | Snap-On, Threaded | 50 Ohms | Free Hanging (In-Line) | Beryllium Copper | Gold | Polytetrafluoroethylene (PTFE) | Stainless Steel | Straight | Male to Male | Plug to Plug | SMA to OSMP | Between Series | SMA Plug, Male Pin | ||||||||||||||||||
TE Connectivity Aerospace, Defense and Marine 1056522-1 | Gold | 335 V | Snap-On | 50 Ohms | Free Hanging (In-Line) | -65 ░C | 165 °C | Female Socket, Jack | Solder | EMI Ring | Beryllium Copper | Gold | Polytetrafluoroethylene (PTFE) | Gold | 1 | RG-405 (.085" Semi Rigid) | 40 GHz | Solder | Beryllium Copper | Connector, Contact, Insulator | |||||||||||
TE Connectivity Aerospace, Defense and Marine 1056555-1 | Gold | 50 Ohms | Through Hole | -65 ░C | 165 °C | Female Socket, Jack | Solder | Beryllium Copper | Gold | Polytetrafluoroethylene (PTFE) | Gold | 1 | 18 GHz | Solder | Stainless Steel | SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 500 | $ 29.78 | |
Description
General part information
1056 Series
Connector Shroud For SMP Connectors
