Q-1Y07400130.5M

Active

Amphenol Custom Cable

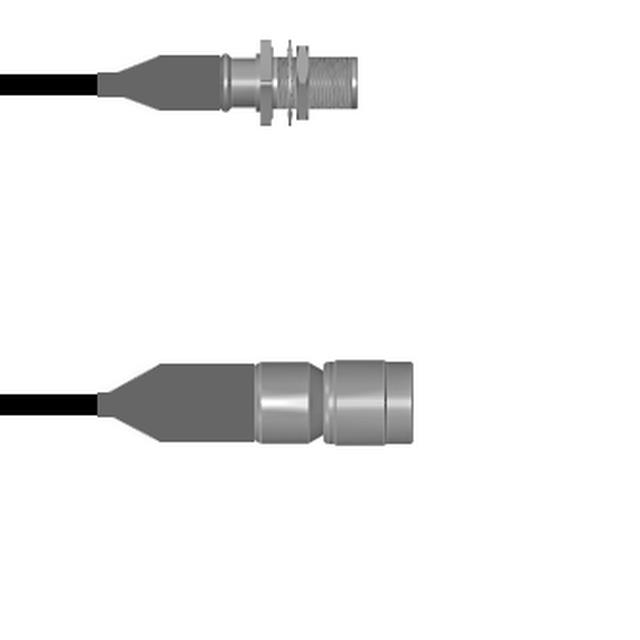

CBL ASSY NTYPE-TNC JCK-PL 19.69"

Deep-Dive with AI

Search across all available documentation for this part.

Q-1Y07400130.5M

Active

Amphenol Custom Cable

CBL ASSY NTYPE-TNC JCK-PL 19.69"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1Y07400130.5M

1st Connector	N-Type Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	TNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	LMR 400
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	50 cm
Length	19.69 "
Overall Impedance	50 Ohms

Q-1Y0740 Series

Part	Color	2nd Contact Gender	2nd Connector Mounting Type	1st Connector Mounting Type	Cable Type	1st Contact Gender	Overall Impedance	Length [x]	Length [x]	Features	1st Connector	Frequency - Max [Max]	1st Connector Mounting Feature	2nd Connector	Length	Length	Length
Amphenol Custom Cable Q-1Y0740013018i	Black	Male	Free Hanging (In-Line)	Panel Mount	LMR 400	Female	50 Ohms	457.2 mm	457.2 mm	Shielded	N-Type Jack	6000 MHz	Bulkhead - Front Side Nut	TNC Plug
Amphenol Custom Cable Q-1Y0740013006i	Black	Male	Free Hanging (In-Line)	Panel Mount	LMR 400	Female	50 Ohms			Shielded	N-Type Jack	6000 MHz	Bulkhead - Front Side Nut	TNC Plug	152.4 mm	6 in
Amphenol Custom Cable Q-1Y07400132.5M	Black	Male	Free Hanging (In-Line)	Panel Mount	LMR 400	Female	50 Ohms			Shielded	N-Type Jack	6000 MHz	Bulkhead - Front Side Nut	TNC Plug	2.5 m	98.4 in	8.2 '
Amphenol Custom Cable Q-1Y0740013012i	Black	Male	Free Hanging (In-Line)	Panel Mount	LMR 400	Female	50 Ohms			Shielded	N-Type Jack	6000 MHz	Bulkhead - Front Side Nut	TNC Plug	304.8 mm	12 "
Amphenol Custom Cable Q-1Y0740013024i	Black	Male	Free Hanging (In-Line)	Panel Mount	LMR 400	Female	50 Ohms			Shielded	N-Type Jack	6000 MHz	Bulkhead - Front Side Nut	TNC Plug	609.6 mm	24 "
Amphenol Custom Cable Q-1Y07400130.5M	Black	Male	Free Hanging (In-Line)	Panel Mount	LMR 400	Female	50 Ohms			Shielded	N-Type Jack	6000 MHz	Bulkhead - Front Side Nut	TNC Plug	50 cm	19.69 "
Amphenol Custom Cable Q-1Y0740013084i	Black	Male	Free Hanging (In-Line)	Panel Mount	LMR 400	Female	50 Ohms			Shielded	N-Type Jack	6000 MHz	Bulkhead - Front Side Nut	TNC Plug	2.1 m	84 in	7 ft
Amphenol Custom Cable Q-1Y0740013.75M	Black	Male	Free Hanging (In-Line)	Panel Mount	LMR 400	Female	50 Ohms			Shielded	N-Type Jack	6000 MHz	Bulkhead - Front Side Nut	TNC Plug	750 mm	29.53 "
Amphenol Custom Cable Q-1Y0740013003i	Black	Male	Free Hanging (In-Line)	Panel Mount	LMR 400	Female	50 Ohms			Shielded	N-Type Jack	6000 MHz	Bulkhead - Front Side Nut	TNC Plug	76.2 mm	3 in
Amphenol Custom Cable Q-1Y0740013108i	Black	Male	Free Hanging (In-Line)	Panel Mount	LMR 400	Female	50 Ohms			Shielded	N-Type Jack	6000 MHz	Bulkhead - Front Side Nut	TNC Plug	2.7 m	108 in	9 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 152.49
		25	$ 149.63
		50	$ 146.77
		100	$ 143.91
		250	$ 141.05

Description

General part information

Q-1Y0740 Series

Cable Assembly Coaxial N-Type to TNC LMR 400 19.69" (500.00mm)

Documents

Technical documentation and resources

No documents available
