1-794076-1

Active

TE Connectivity Raychem Cable Protection

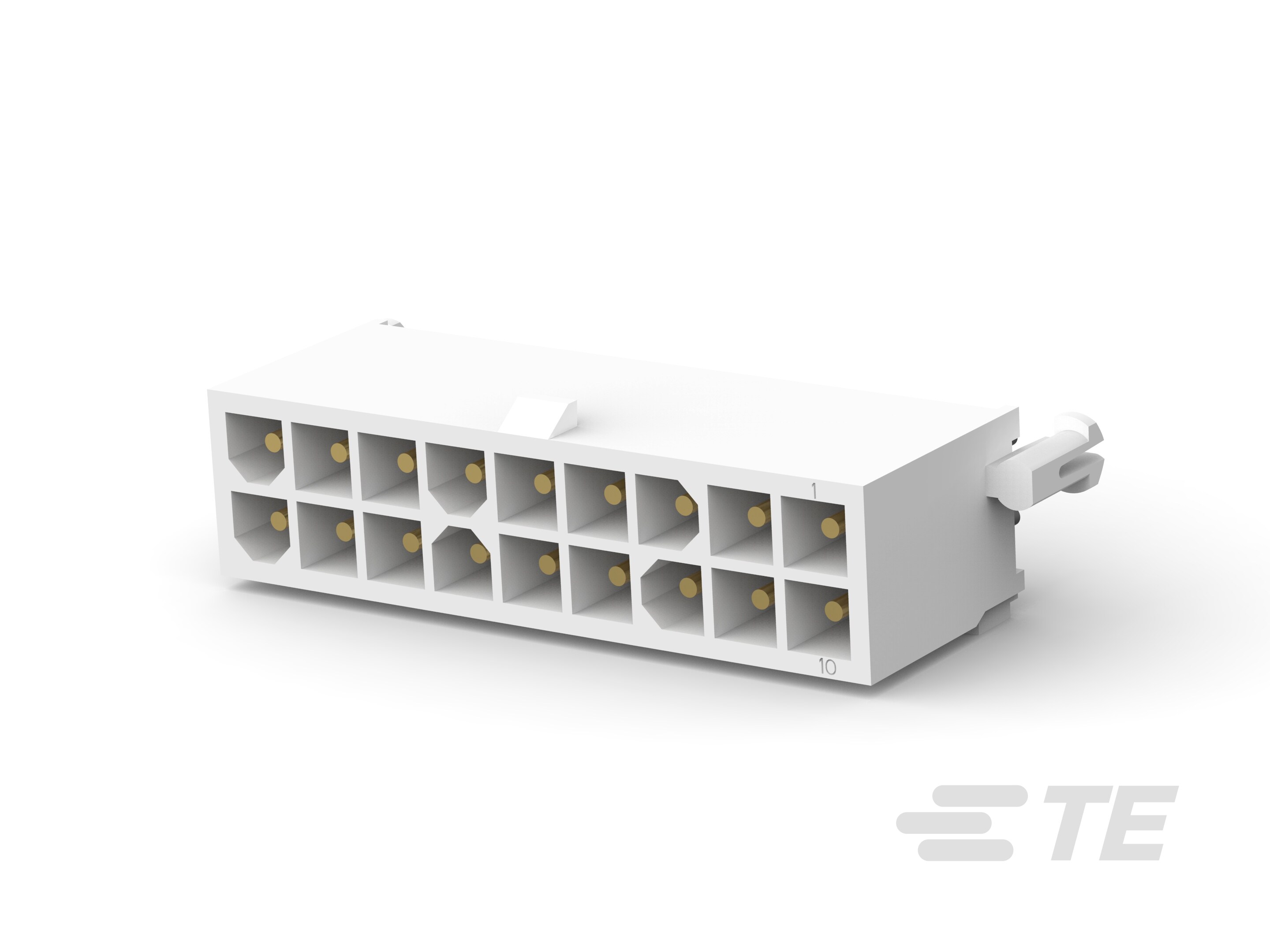

(1-794076-1) 18P MINI UMNL HDR W/O DH AU LF

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

Connectors, Interconnects

1-794076-1

Active

TE Connectivity Raychem Cable Protection

(1-794076-1) 18P MINI UMNL HDR W/O DH AU LF

Deep-Dive with AI

DocumentsDatasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1-794076-1

Applications	General Purpose
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	150 Áin
Contact Finish Thickness - Post	3.81 Ám
Contact Length - Post	4.45 mm
Contact Length - Post	0.175 in
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Locking Ramp
Insulation Color	White
Insulation Height	13.5 mm
Insulation Height	0.531 in
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	18
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Pitch - Mating	4.14 mm
Pitch - Mating	0.163 in
Row Spacing - Mating	4.14 mm
Row Spacing - Mating	0.163 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	600 VAC

794076 Series

Part	Shrouding	Contact Shape	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Number of Rows	Insulation Material	Insulation Height	Insulation Height	Applications	Contact Type	Number of Positions	Contact Length - Post	Contact Length - Post	Style	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Contact Material	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Number of Positions Loaded	Contact Finish - Mating	Fastening Type	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Contact Finish - Post	Voltage Rating
TE Connectivity Raychem Cable Protection 1-794076-1	Shrouded - 4 Wall	Circular	4.14 mm	0.163 in	-20 C	105 ░C	Varies by Wire Gauge	2	Nylon Polyamide (PA)	13.5 mm	0.531 in	General Purpose	Male Pin	18	4.45 mm	0.175 in	Board to Cable/Wire	UL94 V-0	4.14 mm	0.163 in	Brass	Solder	30 Áin	0.76 Ám	Header	All	Gold	Locking Ramp	White	150 Áin	3.81 Ám	Through Hole	Tin	600 VAC
TE Connectivity Raychem Cable Protection 794076-2	Shrouded - 4 Wall	Circular	4.14 mm	0.163 in	-20 C	105 ░C	Varies by Wire Gauge	2	Nylon Polyamide (PA)	13.5 mm	0.531 in	General Purpose	Male Pin	18	4.45 mm	0.175 in	Board to Cable/Wire	UL94 V-0	4.14 mm	0.163 in	Brass	Solder	30 Áin	0.76 Ám	Header	All	Gold	Locking Ramp	White	150 Áin	3.81 Ám	Through Hole	Tin-Lead	600 VAC
TE Connectivity Raychem Cable Protection 794076-1	Shrouded - 4 Wall	Circular	4.14 mm	0.163 in	-20 C	85 °C	Varies by Wire Gauge	2	Nylon Polyamide (PA)	13.5 mm	0.531 in	General Purpose	Male Pin	18	4.45 mm	0.175 in	Board to Cable/Wire	UL94 V-0	4.14 mm	0.163 in	Brass	Solder	150 Áin	3.81 Ám	Header	All	Tin-Lead	Locking Ramp	White	150 Áin	3.81 Ám	Through Hole	Tin-Lead	600 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	400	$ 10.18
Newark	Each	250	$ 9.41
		500	$ 8.42

Description

General part information

794076 Series

Connector Header Through Hole 18 position 0.163" (4.14mm)
