JF15AP1FF

Obsolete

NKK Switches

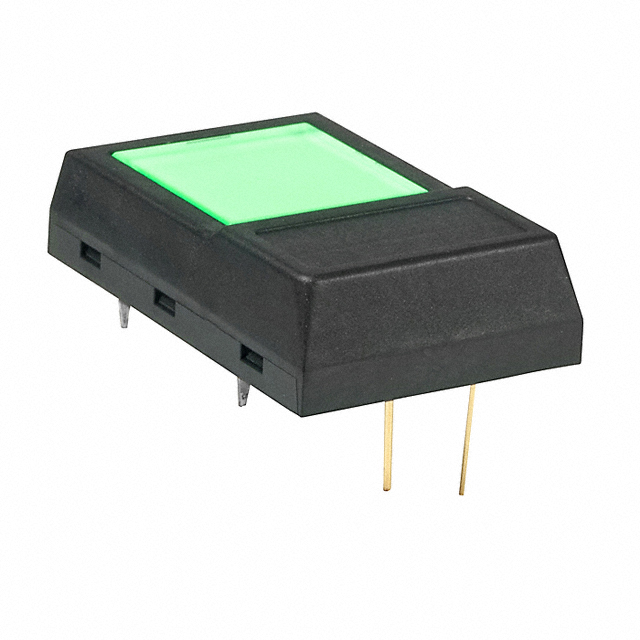

TACTILE SWITCH, JF SERIES, TOP ACTUATED, THROUGH HOLE, SQUARE BUTTON, 300 GF, 50MA AT 24VDC

Search across all available documentation for this part.

Obsolete

NKK Switches

TACTILE SWITCH, JF SERIES, TOP ACTUATED, THROUGH HOLE, SQUARE BUTTON, 300 GF, 50MA AT 24VDC

Technical Specifications

Parameters and characteristics for this part

Specification	JF15AP1FF

Actuator Height off PCB, Vertical	6.7 mm
Actuator Material	Nylon, Polyamide (PA)
Actuator Orientation	Top Actuated
Actuator Type	Square Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC
Features	Process Sealed
Illumination	Illuminated
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	2.1 VDC
Mechanical Life	500000 Cycles
Mounting Type	Through Hole
Operating Force	300 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Outline [x]	22.8 mm
Outline [y]	17.7 mm
Switch Function	Off-Mom
Switch Travel	0.4 mm
Termination Style	PC Pin

Part	Actuator Orientation	Mounting Type	Contact Rating @ Voltage	Switch Function	Actuator Material	Switch Travel	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Actuator Type	Illumination Type, Color	Features	Illumination	Circuit	Operating Force	Outline [y]	Outline [x]	Actuator Height off PCB, Vertical	Illumination Voltage (Nominal)	Mechanical Life
NKK Switches JF15AP1FF	Top Actuated	Through Hole	0.05 A 24 VDC	Off-Mom	Nylon Polyamide (PA)	0.4 mm	70 °C	-25 °C	PC Pin	Square Button	Green LED	Process Sealed	Illuminated	SPST-NO	300 gf	17.7 mm	22.8 mm	6.7 mm	2.1 VDC	500000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
