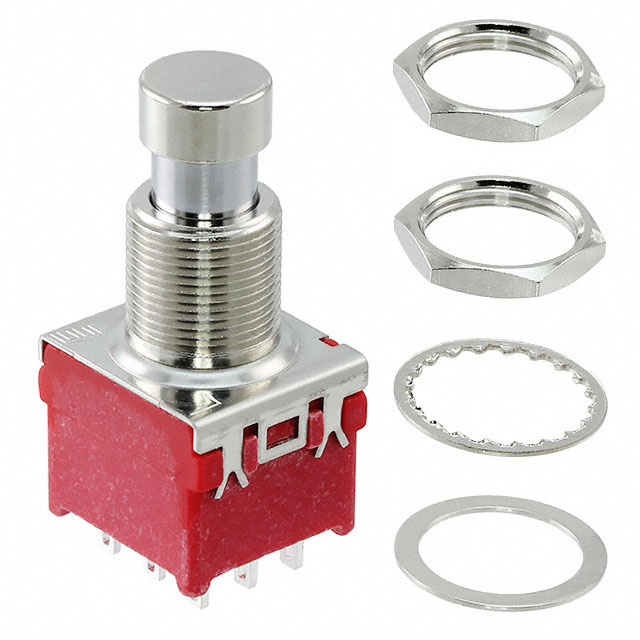

FS57003PLT2B2M1QEH

Active

E-Switch

SWITCH: PUSH-BUTTON; POS: 2; 3PDT; 1A/9VDC; ON-ON; CUTOUT: Ø12.2MM

Search across all available documentation for this part.

Active

E-Switch

SWITCH: PUSH-BUTTON; POS: 2; 3PDT; 1A/9VDC; ON-ON; CUTOUT: Ø12.2MM

Technical Specifications

Parameters and characteristics for this part

Specification	FS57003PLT2B2M1QEH

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	3PDT
Color - Actuator/Cap	Silver
Current Rating (Amps)	1 A
Electrical Life	30000 Cycles
Features	Epoxy Sealed Terminals
Mounting Type	Panel Mount, Rear
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [diameter]	12.2 mm
Switch Function	On-On
Termination Style	Solder Lug
Type	Standard
Voltage Rating - DC	9 V

Part	Color - Actuator/Cap	Type	Mounting Type	Actuator Marking	Switch Function	Features	Circuit	Termination Style	Current Rating (Amps)	Actuator Type	Electrical Life	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Voltage Rating - DC	Panel Cutout Dimensions [diameter]
E-Switch FS57003PLT2B2M1QEH	Silver	Standard	Panel Mount Rear	No Marking	On-On	Epoxy Sealed Terminals	3PDT	Solder Lug	1 A	Button Round	30000 Cycles	-10 °C	158 °F	9 V	12.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch 3PDT Standard Panel Mount, Rear
