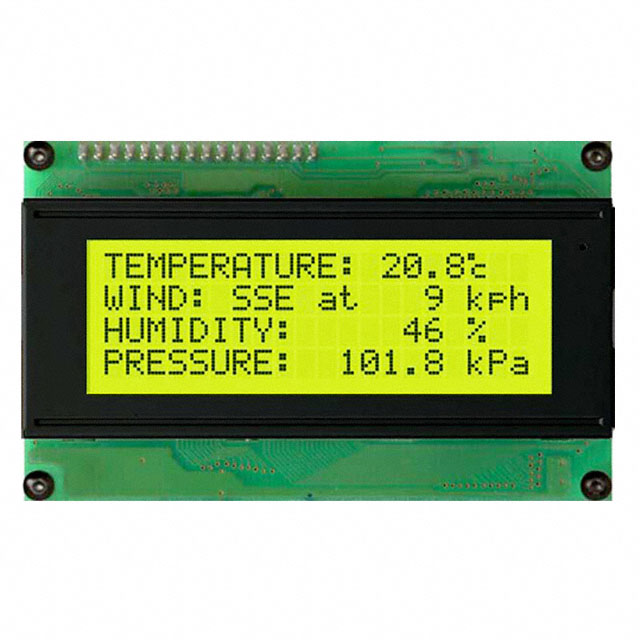

Specification	MOP-AL204A-BYFY-25E-3IN

Background Color	Green
Backlight Color	Yellow, Green
Backlight Type	LED
Character Height	4.75 mm
Character Height (Dots)	8 Dots
Character Width	2.95 mm
Character Width (Dots)	5 Dots
Display Columns	20
Display Mode	Transflective
Display Rows	4
Display Type	STN - Super-Twisted Nematic
Dot Size Height	0.55 mm
Dot Size Width	0.55 mm
Interface	Parallel
Number of Characters	80 characters
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-20 °C
Outline Height	15 mm
Outline Length	98 mm
Outline Width	60 mm
Text Color	Gray
Viewing Area Length	76 mm
Viewing Area Width	25.2 mm
Voltage - Supply (Maximum)	5.5 V
Voltage - Supply (Minimum)	4.5 V

MOP-AL204 Series

Part	Display Rows	Display Columns	Voltage - Supply	Text Color	Interface	Display Type	Operating Temperature (Min)	Operating Temperature (Max)	Background Color	Viewing Area Length	Viewing Area Width	Number of Characters	Character Width (Dots)	Character Height (Dots)	Outline Length	Outline Height	Outline Width	Character Height	Character Width	Character Format Feature	Dot Size Width	Dot Size Height	Display Mode	Backlight Color	Backlight Type	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)
Matrix Orbital MOP-AL204A-BBTW-25E-3IN	4	20	5 VDC	White	I2C RS-232 TTL	LCD - Monochrome	0 °C	50 °C	Blue	70.4 mm	20.8 mm	80 characters	5 Dots	8 Dots	98 mm	15 mm	60 mm	4.75 mm	2.95 mm
Matrix Orbital MOP-AL204A-BTTY-25E-3IN	4	20	5 VDC	Green Yellow	I2C RS-232 TTL	LCD - Monochrome	0 °C	50 °C	Black	70.4 mm	20.8 mm	80 characters	5 Dots	8 Dots	98 mm	15 mm	60 mm	4.75 mm	2.95 mm
Matrix Orbital MOP-AL204B-BYFY-25E-3IN	2	20	5.5 V	Black		Alphanumeric	-20 °C	70 °C	Green Yellow	123.5 mm	43 mm	80 characters	5 Dots	8 Dots	146 mm	13 mm	62.5 mm	9.22 mm	4.84 mm	Cursor	0.92 mm	1.1 mm	Transflective	Yellow	LED
Matrix Orbital MOP-AL204A-BYFY-25E-3IN	4	20		Gray	Parallel	STN - Super-Twisted Nematic	-20 °C	70 °C	Green	76 mm	25.2 mm	80 characters	5 Dots	8 Dots	98 mm	15 mm	60 mm	4.75 mm	2.95 mm		0.55 mm	0.55 mm	Transflective	Green Yellow	LED	5.5 V	4.5 V
Matrix Orbital MOP-AL204A-BBTR-25E-3IN	4	20	5 VDC	Red	I2C RS-232 TTL	LCD - Monochrome	0 °C	50 °C	Black	70.4 mm	20.8 mm	80 characters	5 Dots	8 Dots	98 mm	15 mm	60 mm	4.75 mm	2.95 mm
Matrix Orbital MOP-AL204A-BGFW-25E-3IN	4	20	5 VDC	Blue	I2C RS-232 TTL	LCD - Monochrome	0 °C	50 °C	Gray White	70.4 mm	20.8 mm	80 characters	5 Dots	8 Dots	98 mm	15 mm	60 mm	4.75 mm	2.95 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

MOP-AL204A-BYFY-25E-3IN | Datasheet
