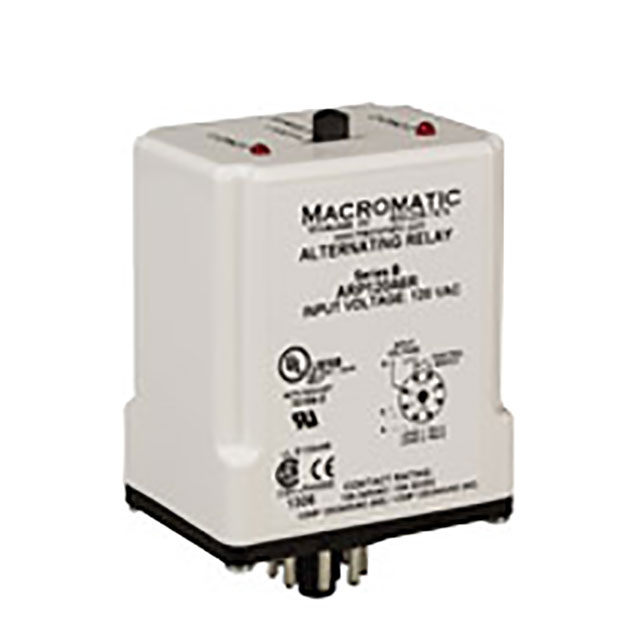

ARP120A6R

Active

Macromatic Industrial Controls

RELAY IMPULSE SPDT 10A 120V

Search across all available documentation for this part.

Active

Macromatic Industrial Controls

RELAY IMPULSE SPDT 10A 120V

Technical Specifications

Parameters and characteristics commom to parts in this series

RELAY IMPULSE DPDT 10A 120V

Part	Features	Termination Style	Switching Voltage	Contact Rating (Current)	Relay Type	Contact Form	Coil Voltage	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Coil Type	Must Operate Voltage
Macromatic Industrial Controls ARP120A3R	Lighted Indicator	Plug In, 8 Pin (Octal)	24 VDC, 240 VAC	10 A	Impulse	DPDT (2 Form C)	120 VAC	Socketable	-18.4 °F	65 °C	Non Latching	102 VAC
Macromatic Industrial Controls ARP120A6R	Lighted Indicator	Plug In, 8 Pin (Octal)	24 VDC, 240 VAC	10 A	Impulse	SPDT (1 Form C)	120 VAC	Socketable	-18.4 °F	65 °C	Non Latching	102 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 117.00

General part information

Impulse Relay SPDT (1 Form C) 120VAC Coil Socketable

Technical documentation and resources

No documents available
