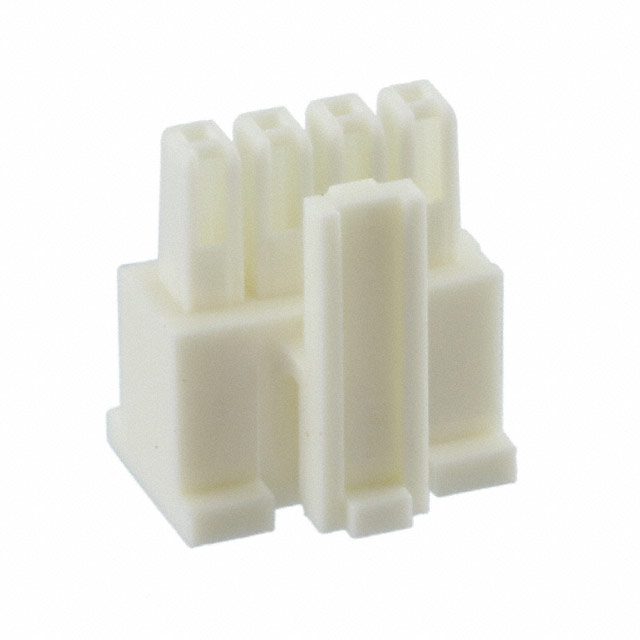

IPD1-04-S

Active

Samtec Inc.

CONN RCPT HSG 4POS 2.54MM

Search across all available documentation for this part.

Active

Samtec Inc.

CONN RCPT HSG 4POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Part	Contact Termination	Fastening Type	Mounting Type	Color	Insulation Material	Number of Positions	Features	Contact Type	Number of Rows	Note	Connector Type	Pitch [x]	Pitch [x]	Row Spacing [x]	Row Spacing
Samtec Inc. IPD1-04-S-K-R	Crimp	Latch Lock	Free Hanging (In-Line)	White	Polyamide (PA66) Nylon 6/6	4	Polarizing Key	Female Socket	1	Contacts Not Included	Receptacle	2.54 mm	0.1 in
Samtec Inc. IPD1-04-D-GP-R	Crimp	Latch Lock	Free Hanging (In-Line)	White	Polyamide (PA66) Nylon 6/6	8	Guide Post	Female Socket	2	Contacts Not Included	Receptacle	2.54 mm	0.1 in	0.1 in	2.54 mm
Samtec Inc. IPD1-04-D-K	Crimp	Latch Lock	Free Hanging (In-Line)	White	Polyamide (PA66) Nylon 6/6	8	Polarizing Key	Female Socket	2	Contacts Not Included	Receptacle	2.54 mm	0.1 in	0.1 in	2.54 mm
Samtec Inc. IPD1-04-S	Crimp	Latch Lock	Free Hanging (In-Line)	White	Polyamide (PA66) Nylon 6/6	4		Female Socket	1	Contacts Not Included	Receptacle	2.54 mm	0.1 in
Samtec Inc. IPD1-04-D-K-R	Crimp	Latch Lock	Free Hanging (In-Line)	White	Polyamide (PA66) Nylon 6/6	8	Polarizing Key	Female Socket	2	Contacts Not Included	Receptacle	2.54 mm	0.1 in	0.1 in	2.54 mm
Samtec Inc. IPD1-04-D-P	Crimp	Latch Lock	Free Hanging (In-Line)	White	Polyamide (PA66) Nylon 6/6	8	Polarizing Key	Female Socket	2	Contacts Not Included	Receptacle	2.54 mm	0.1 in	0.1 in	2.54 mm
Samtec Inc. IPD1-04-D-P-M	Crimp	Latch Lock	Free Hanging (In-Line)	White	Polyamide (PA66) Nylon 6/6	8	Polarizing Key	Female Socket	2	Contacts Not Included	Receptacle	2.54 mm	0.1 in	0.1 in	2.54 mm
