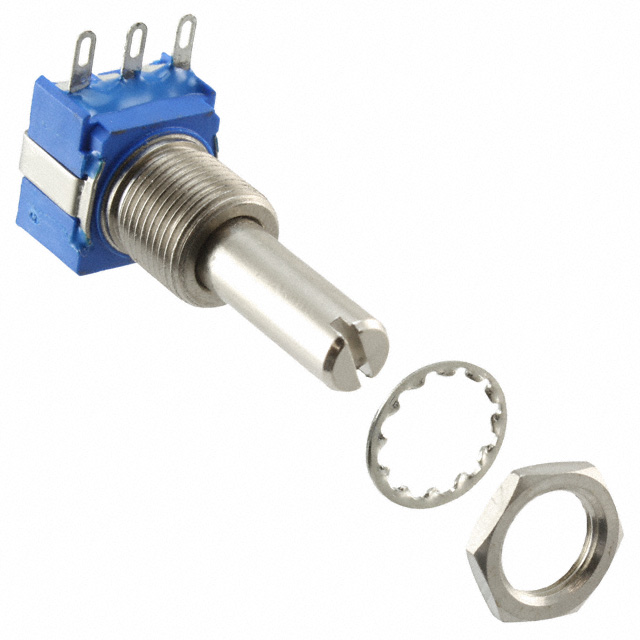

53RAA-R25-A18L
ActiveBourns Inc.
POT 50K OHM 1W CERMET LINEAR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
53RAA-R25-A18L
ActiveBourns Inc.
POT 50K OHM 1W CERMET LINEAR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 53RAA-R25-A18L |
|---|---|
| Actuator Diameter [diameter] | 0.236 in |
| Actuator Diameter [diameter] | 6 mm |
| Actuator Length [x] | 0.984 in |
| Actuator Length [x] | 25 mm |
| Actuator Type | Slotted |
| Adjustment Type | User Defined |
| Built in Switch | False |
| Bushing Thread | M10 x 0.75 |
| Features | Sealed |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Power (Watts) | 1 W |
| Resistance (Ohms) | 50 kOhms |
| Resistive Material | Cermet |
| Rotation | 290 ° |
| Size - Body [x] | 0.521 in |
| Size - Body [x] | 13.25 mm |
| Size - Body [y] | 12.5 mm |
| Size - Body [y] | 0.492 in |
| Taper | Linear |
| Temperature Coefficient | 150 ppm/°C |
| Termination Style | Solder Lug |
| Tolerance | 10 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.96 | |
| 10 | $ 12.49 | |||
| 45 | $ 10.18 | |||
| 90 | $ 9.26 | |||
| 270 | $ 7.40 | |||
| 540 | $ 7.17 | |||
| 1035 | $ 6.71 | |||
Description
General part information
53RAA Series
50k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Cermet 1W Solder Lug
