Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DRV8803EVM | DRV8803 Series |
|---|---|---|
| Applications | - | General Purpose |
| Current - Output | - | 1 - 800 mA |
| Embedded | Yes, MCU, 16-Bit | Yes, MCU, 16-Bit |
| Function | - | Driver - Fully Integrated, Control and Power Stage |
| Interface | - | Parallel |
| Motor Type - AC, DC | - | Brushed DC |
| Motor Type - Stepper | - | Unipolar |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | 150 C |
| Operating Temperature | - | -40 °C |
| Output Configuration | - | Low Side (4) |
| Package / Case | - | 0.295 - 7.5 mm |
| Package / Case | - | 20-SOIC, 16-PowerTSSOP |
| Package / Case | - | 4.4 mm |
| Package / Case | - | 0.173 in |
| Primary Attributes | 800 mA, 1.5 A | 1.5 - 800 mA |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 20-SOIC, 16-HTSSOP |
| Technology | - | Power MOSFET |
| Type | Power Management | Power Management |
| Utilized IC / Part | DRV8803 | DRV8803 |
| Voltage - Load | - | 8.2 V |
| Voltage - Load | - | 60 V |
| Voltage - Supply | - | 60 V |
| Voltage - Supply | - | 8.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
DRV8803 Series
60V, 2.3A 4 channel low-side driver with PWM control and overcurrent protection
| Part | Motor Type - Stepper | Applications | Output Configuration | Motor Type - AC, DC | Current - Output | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Package / Case | Voltage - Load [Min] | Voltage - Load [Max] | Mounting Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Technology | Supplier Device Package | Function | Interface | Primary Attributes | Type | Embedded | Utilized IC / Part | Supplied Contents | Package / Case [y] | Package / Case [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments DRV8803DWThe DRV8803 provides a 4-channel low side driver with overcurrent protection. The device has built-in diodes to clamp turnoff transients generated by inductive loads and can be used to drive unipolar stepper motors, DC motors, relays, solenoids, or other loads.
In the SOIC (DW) package, the DRV8803 can supply up to 1.5A (one channel on) or 800mA (all channels on) continuous output current per channel, at 25°C. In the HTSSOP (PWP) package, the device can supply up to 2A (one channel on) or 1A (four channels on) continuous output current per channel, at 25°C . In the SOT-23-THN (DYZ) package, the DRV8803 can supply up to 1.9A (one channel on) or 900mA (all channels on) continuous output current per channel, at 25°C with proper PCB heatsinking.
The device is controlled through a simple parallel interface.
Internal shutdown functions are provided for over current protection, short circuit protection, undervoltage lockout and overtemperature and faults are indicated by a fault output pin.
The DRV8803 is available in a 20-pin thermally-enhanced SOIC package, 16-pin HTSSOP package and 16-pin SOT-23-THN package (Eco-friendly: RoHS & no Sb/Br).
The DRV8803 provides a 4-channel low side driver with overcurrent protection. The device has built-in diodes to clamp turnoff transients generated by inductive loads and can be used to drive unipolar stepper motors, DC motors, relays, solenoids, or other loads.
In the SOIC (DW) package, the DRV8803 can supply up to 1.5A (one channel on) or 800mA (all channels on) continuous output current per channel, at 25°C. In the HTSSOP (PWP) package, the device can supply up to 2A (one channel on) or 1A (four channels on) continuous output current per channel, at 25°C . In the SOT-23-THN (DYZ) package, the DRV8803 can supply up to 1.9A (one channel on) or 900mA (all channels on) continuous output current per channel, at 25°C with proper PCB heatsinking.
The device is controlled through a simple parallel interface.
Internal shutdown functions are provided for over current protection, short circuit protection, undervoltage lockout and overtemperature and faults are indicated by a fault output pin.
The DRV8803 is available in a 20-pin thermally-enhanced SOIC package, 16-pin HTSSOP package and 16-pin SOT-23-THN package (Eco-friendly: RoHS & no Sb/Br). | Unipolar | General Purpose | Low Side (4) | Brushed DC | 800 mA | 150 C | -40 °C | 0.295 in, 7.5 mm | 20-SOIC | 8.2 V | 60 V | Surface Mount | 60 V | 8.2 V | Power MOSFET | 20-SOIC | Driver - Fully Integrated, Control and Power Stage | Parallel | |||||||
Texas Instruments DRV8803DWRThe DRV8803 provides a 4-channel low side driver with overcurrent protection. The device has built-in diodes to clamp turnoff transients generated by inductive loads and can be used to drive unipolar stepper motors, DC motors, relays, solenoids, or other loads.
In the SOIC (DW) package, the DRV8803 can supply up to 1.5A (one channel on) or 800mA (all channels on) continuous output current per channel, at 25°C. In the HTSSOP (PWP) package, the device can supply up to 2A (one channel on) or 1A (four channels on) continuous output current per channel, at 25°C . In the SOT-23-THN (DYZ) package, the DRV8803 can supply up to 1.9A (one channel on) or 900mA (all channels on) continuous output current per channel, at 25°C with proper PCB heatsinking.
The device is controlled through a simple parallel interface.
Internal shutdown functions are provided for over current protection, short circuit protection, undervoltage lockout and overtemperature and faults are indicated by a fault output pin.
The DRV8803 is available in a 20-pin thermally-enhanced SOIC package, 16-pin HTSSOP package and 16-pin SOT-23-THN package (Eco-friendly: RoHS & no Sb/Br).
The DRV8803 provides a 4-channel low side driver with overcurrent protection. The device has built-in diodes to clamp turnoff transients generated by inductive loads and can be used to drive unipolar stepper motors, DC motors, relays, solenoids, or other loads.
In the SOIC (DW) package, the DRV8803 can supply up to 1.5A (one channel on) or 800mA (all channels on) continuous output current per channel, at 25°C. In the HTSSOP (PWP) package, the device can supply up to 2A (one channel on) or 1A (four channels on) continuous output current per channel, at 25°C . In the SOT-23-THN (DYZ) package, the DRV8803 can supply up to 1.9A (one channel on) or 900mA (all channels on) continuous output current per channel, at 25°C with proper PCB heatsinking.
The device is controlled through a simple parallel interface.
Internal shutdown functions are provided for over current protection, short circuit protection, undervoltage lockout and overtemperature and faults are indicated by a fault output pin.
The DRV8803 is available in a 20-pin thermally-enhanced SOIC package, 16-pin HTSSOP package and 16-pin SOT-23-THN package (Eco-friendly: RoHS & no Sb/Br). | Unipolar | General Purpose | Low Side (4) | Brushed DC | 800 mA | 150 C | -40 °C | 0.295 in, 7.5 mm | 20-SOIC | 8.2 V | 60 V | Surface Mount | 60 V | 8.2 V | Power MOSFET | 20-SOIC | Driver - Fully Integrated, Control and Power Stage | Parallel | |||||||

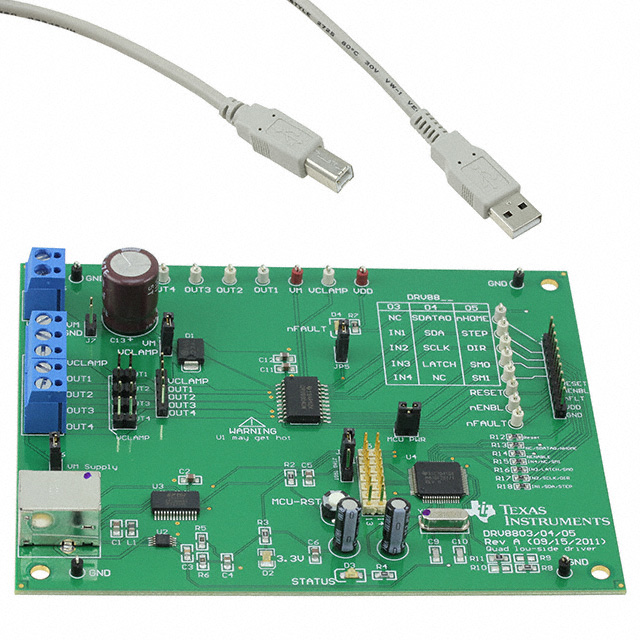

Texas Instruments DRV8803EVMDRV8803 Motor Controller/Driver, Stepper Power Management Evaluation Board | 1.5 A, 800 mA | Power Management | Yes, MCU, 16-Bit | DRV8803 | Board(s) | ||||||||||||||||||||
Texas Instruments DRV8803PWPThe DRV8803 provides a 4-channel low side driver with overcurrent protection. The device has built-in diodes to clamp turnoff transients generated by inductive loads and can be used to drive unipolar stepper motors, DC motors, relays, solenoids, or other loads.
In the SOIC (DW) package, the DRV8803 can supply up to 1.5A (one channel on) or 800mA (all channels on) continuous output current per channel, at 25°C. In the HTSSOP (PWP) package, the device can supply up to 2A (one channel on) or 1A (four channels on) continuous output current per channel, at 25°C . In the SOT-23-THN (DYZ) package, the DRV8803 can supply up to 1.9A (one channel on) or 900mA (all channels on) continuous output current per channel, at 25°C with proper PCB heatsinking.
The device is controlled through a simple parallel interface.
Internal shutdown functions are provided for over current protection, short circuit protection, undervoltage lockout and overtemperature and faults are indicated by a fault output pin.
The DRV8803 is available in a 20-pin thermally-enhanced SOIC package, 16-pin HTSSOP package and 16-pin SOT-23-THN package (Eco-friendly: RoHS & no Sb/Br).
The DRV8803 provides a 4-channel low side driver with overcurrent protection. The device has built-in diodes to clamp turnoff transients generated by inductive loads and can be used to drive unipolar stepper motors, DC motors, relays, solenoids, or other loads.
In the SOIC (DW) package, the DRV8803 can supply up to 1.5A (one channel on) or 800mA (all channels on) continuous output current per channel, at 25°C. In the HTSSOP (PWP) package, the device can supply up to 2A (one channel on) or 1A (four channels on) continuous output current per channel, at 25°C . In the SOT-23-THN (DYZ) package, the DRV8803 can supply up to 1.9A (one channel on) or 900mA (all channels on) continuous output current per channel, at 25°C with proper PCB heatsinking.
The device is controlled through a simple parallel interface.
Internal shutdown functions are provided for over current protection, short circuit protection, undervoltage lockout and overtemperature and faults are indicated by a fault output pin.
The DRV8803 is available in a 20-pin thermally-enhanced SOIC package, 16-pin HTSSOP package and 16-pin SOT-23-THN package (Eco-friendly: RoHS & no Sb/Br). | Unipolar | General Purpose | Low Side (4) | Brushed DC | 1 A | 150 C | -40 °C | 16-PowerTSSOP | 8.2 V | 60 V | Surface Mount | 60 V | 8.2 V | Power MOSFET | 16-HTSSOP | Driver - Fully Integrated, Control and Power Stage | Parallel | 4.4 mm | 0.173 in |
Description
General part information
DRV8803 Series
The DRV8803 provides a 4-channel low side driver with overcurrent protection. The device has built-in diodes to clamp turnoff transients generated by inductive loads and can be used to drive unipolar stepper motors, DC motors, relays, solenoids, or other loads.
In the SOIC (DW) package, the DRV8803 can supply up to 1.5A (one channel on) or 800mA (all channels on) continuous output current per channel, at 25°C. In the HTSSOP (PWP) package, the device can supply up to 2A (one channel on) or 1A (four channels on) continuous output current per channel, at 25°C . In the SOT-23-THN (DYZ) package, the DRV8803 can supply up to 1.9A (one channel on) or 900mA (all channels on) continuous output current per channel, at 25°C with proper PCB heatsinking.
The device is controlled through a simple parallel interface.
