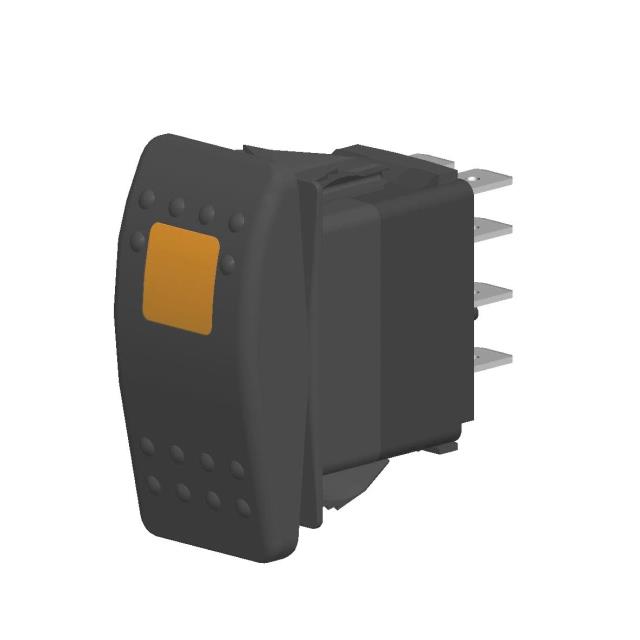

VLD1A60B-AEC00-000

Active

Carling Technologies

SWITCH ROCKER DPDT 20A 12V

Deep-Dive with AI

Search across all available documentation for this part.

VLD1A60B-AEC00-000

Active

Carling Technologies

SWITCH ROCKER DPDT 20A 12V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 21.02

Description

General part information

VLD1A60B Series

Rocker Switch DPDT 20A (DC) Panel Mount, Snap-In

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VLD1A60B-AEC00-000	VLD1A60B Series

Actuator Marking	No Marking	High Beam, Vertical, Low Beam, No Marking
Actuator Type	Convex (Reverse V) - Illuminated	Convex (Reverse V) - Illuminated
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Circuit	DPDT	DPDT
Color - Actuator/Cap	Black	Black
Current Rating (Amps)	20 A	20 A
Electrical Life	100000 Cycles	100000 Cycles
Illumination Type, Color	Amber, Incandescent	Incandescent, Red, White, Amber, Green
Illumination Voltage (Nominal)	12 VAC/DC	12 VAC/DC
Ingress Protection	IP66/IP68	IP66/IP68
Mechanical Life	100000 Cycles	100000 Cycles
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Panel Cutout Dimensions [x]	36.83 mm	36.83 mm
Panel Cutout Dimensions [y]	21.08 mm	21.08 mm
Switch Function	Mom-Off-Mom	Mom-Off-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	12 V	12 V

VLD1A60B Series

SWITCH ROCKER DPDT 20A 12V

Part	Color - Actuator/Cap	Voltage Rating - DC	Ingress Protection	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Illumination Type, Color	Current Rating (Amps)	Mounting Type	Approval Agency	Electrical Life	Circuit	Illumination Voltage (Nominal)	Switch Function	Mechanical Life	Actuator Type
Carling Technologies VLD1A60B-GPC87-100	Black	12 V	IP66/IP68	High Beam, Low Beam, Vertical	85 °C	-40 °C	Quick Connect - 0.250" (6.3mm)	21.08 mm	36.83 mm	Incandescent, Red	20 A	Panel Mount, Snap-In	CSA, UL, VDE	100000 Cycles	DPDT	12 VAC/DC	Mom-Off-Mom	100000 Cycles	Convex (Reverse V) - Illuminated
Carling Technologies VLD1A60B-CMC00-000	Black	12 V	IP66/IP68	No Marking	85 °C	-40 °C	Quick Connect - 0.250" (6.3mm)	21.08 mm	36.83 mm	Incandescent, Red	20 A	Panel Mount, Snap-In	CSA, UL, VDE	100000 Cycles	DPDT	12 VAC/DC	Mom-Off-Mom	100000 Cycles	Convex (Reverse V) - Illuminated
Carling Technologies VLD1A60B-A9B00-000	Black	12 V	IP66/IP68	No Marking	85 °C	-40 °C	Quick Connect - 0.250" (6.3mm)	21.08 mm	36.83 mm	Incandescent, White	20 A	Panel Mount, Snap-In	CSA, UL, VDE	100000 Cycles	DPDT	12 VAC/DC	Mom-Off-Mom	100000 Cycles	Convex (Reverse V) - Illuminated
Carling Technologies VLD1A60B-AEC00-000	Black	12 V	IP66/IP68	No Marking	85 °C	-40 °C	Quick Connect - 0.250" (6.3mm)	21.08 mm	36.83 mm	Amber, Incandescent	20 A	Panel Mount, Snap-In	CSA, UL, VDE	100000 Cycles	DPDT	12 VAC/DC	Mom-Off-Mom	100000 Cycles	Convex (Reverse V) - Illuminated
Carling Technologies VLD1A60B-AKC00-000	Black	12 V	IP66/IP68	No Marking	85 °C	-40 °C	Quick Connect - 0.250" (6.3mm)	21.08 mm	36.83 mm	Green, Incandescent	20 A	Panel Mount, Snap-In	CSA, UL, VDE	100000 Cycles	DPDT	12 VAC/DC	Mom-Off-Mom	100000 Cycles	Convex (Reverse V) - Illuminated
