034-5023

Active

AMPHENOL RF

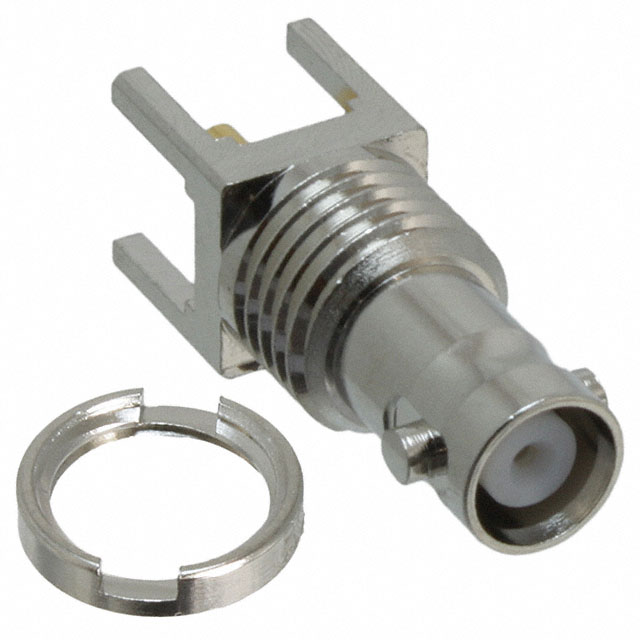

CONN HDBNC RCPT STR 50 OHM PCB

Deep-Dive with AI

Search across all available documentation for this part.

034-5023

Active

AMPHENOL RF

CONN HDBNC RCPT STR 50 OHM PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.71
		10	$ 6.97
		25	$ 6.58
		50	$ 6.42
		100	$ 6.10
		300	$ 5.46
		500	$ 5.14
		1000	$ 4.50

Description

General part information

034-50 Series

BNC, HD Connector Receptacle, Female Socket 50 Ohms Panel Mount, Through Hole Solder

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	034-5023	034-50 Series

Body Finish	Nickel	Nickel, Gold
Body Material	Brass	Brass, Beryllium Copper
Cable Group	-	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58, RG-178, 178B, 196A, M17/93-RG178, 196, 178A, 188, 188A, 316, LMR-100, M17/119-RG174, RG-174, RG-55, Semi Rigid, RG-405
Cable Group	-	0.047 - 400
Cable Group	-	0.085 in
Cable Group	-	0.086 in
Center Contact Material	Beryllium Copper	Phosphor Bronze, Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	HD, BNC	HD, BNC
Connector Type	Receptacle, Female Socket	Male Pin, Plug, Female Socket, Jack, Receptacle
Contact Termination	Solder	Solder, Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max [Max]	6000 MHz	6000 MHz
Housing Color	Silver	Silver, Gold
Impedance	50 Ohms	50 Ohms
Includes	1 Nut, 1 Connector	1 Ferrule, 1 Contact, 1 Connector, 1 Nut, 1 Lockwasher, 1 Heat Shrink, 1 Insulator, Contact, Nut, Connector, Ferrule, Insulator
Ingress Protection	-	IP67 - Dust Tight, Waterproof
Mating Cycles	500	500
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut, Flange
Mounting Type	Through Hole, Panel Mount	Free Hanging (In-Line), Right Angle, Through Hole, Panel Mount, End Launch, Board Edge
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Solder	Crimp, Solder

034-50 Series

CONN HDBNC PLUG R/A 50OHM SOLDER

Part	Mounting Type	Connector Type	Dielectric Material	Contact Termination	Impedance	Housing Color	Center Contact Material	Mating Cycles	Body Material	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Ingress Protection	Fastening Type	Number of Ports	Shield Termination	Body Finish	Cable Group	Connector Style	Mounting Feature	Includes
AMPHENOL RF 034-5021	Free Hanging (In-Line), Right Angle	Male Pin, Plug	Polytetrafluoroethylene (PTFE)	Solder	50 Ohms	Silver	Phosphor Bronze	500	Brass	Gold	-65 ░C	165 °C	6000 MHz	IP67 - Dust Tight, Waterproof	Bayonet Lock	1	Crimp	Nickel	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58	BNC, HD
AMPHENOL RF 034-5073		Female Socket, Jack	Polytetrafluoroethylene (PTFE)	Crimp	50 Ohms	Silver	Beryllium Copper	500	Brass	Gold	-65 ░C	165 °C	6000 MHz	IP67 - Dust Tight, Waterproof	Bayonet Lock	1	Crimp	Nickel	RG-178	BNC, HD	Bulkhead - Front Side Nut
AMPHENOL RF 034-5080		Female Socket, Jack	Polytetrafluoroethylene (PTFE)	Solder	50 Ohms	Silver	Beryllium Copper	500	Brass	Gold	-65 ░C	165 °C	6000 MHz		Bayonet Lock	1	Crimp	Nickel	LMR-195	BNC, HD	Bulkhead - Front Side Nut
AMPHENOL RF 034-5022	Through Hole	Female Socket, Receptacle	Polytetrafluoroethylene (PTFE)	Solder	50 Ohms	Silver	Beryllium Copper	500	Brass	Gold	-65 ░C	165 °C	6000 MHz		Bayonet Lock	1	Solder	Nickel		BNC, HD
AMPHENOL RF 034-5011	Free Hanging (In-Line)	Male Pin, Plug	Polytetrafluoroethylene (PTFE)	Solder	50 Ohms	Silver	Phosphor Bronze	500	Brass	Gold	-65 ░C	165 °C	6000 MHz		Bayonet Lock	1	Crimp	Nickel	178A, 178B, 196, 196A, M17/93-RG178, RG-178	BNC, HD		1 Connector, 1 Contact, 1 Ferrule
AMPHENOL RF 034-5037	Board Edge, End Launch, Panel Mount	Female Socket, Jack	Polytetrafluoroethylene (PTFE)	Solder	50 Ohms	Gold	Beryllium Copper	500	Brass	Gold	-65 ░C	165 °C	6000 MHz		Bayonet Lock	1	Solder	Gold		BNC, HD	Bulkhead - Front Side Nut	1 Connector, 1 Lockwasher, 1 Nut
AMPHENOL RF 034-5023	Panel Mount, Through Hole	Female Socket, Receptacle	Polytetrafluoroethylene (PTFE)	Solder	50 Ohms	Silver	Beryllium Copper	500	Brass	Gold	-65 ░C	165 °C	6000 MHz		Bayonet Lock	1	Solder	Nickel		BNC, HD	Bulkhead - Front Side Nut	1 Connector, 1 Nut
AMPHENOL RF 034-5013	Board Edge, End Launch, Panel Mount	Female Socket, Jack	Polytetrafluoroethylene (PTFE)	Solder	50 Ohms	Gold	Beryllium Copper	500	Brass	Gold	-65 ░C	165 °C	6000 MHz		Bayonet Lock	1	Solder	Gold		BNC, HD	Bulkhead - Front Side Nut	1 Connector, 1 Lockwasher, 1 Nut
AMPHENOL RF 034-5017	Free Hanging (In-Line)	Male Pin, Plug	Polytetrafluoroethylene (PTFE)	Solder	50 Ohms	Silver	Phosphor Bronze	500	Brass	Gold	-65 ░C	165 °C	6000 MHz	IP67 - Dust Tight, Waterproof	Bayonet Lock	1	Crimp	Nickel	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58	BNC, HD		1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink, 1 Insulator
AMPHENOL RF 034-5019		Female Socket, Jack	Polytetrafluoroethylene (PTFE)	Solder	50 Ohms	Silver	Beryllium Copper	500	Brass	Gold	-65 ░C	165 °C	6000 MHz	IP67 - Dust Tight, Waterproof	Bayonet Lock	1	Crimp	Nickel	188, 188A, 316, LMR-100, M17/119-RG174, RG-174	BNC, HD	Bulkhead - Front Side Nut	1 Connector, 1 Contact, 1 Ferrule, 1 Lockwasher, 1 Nut
