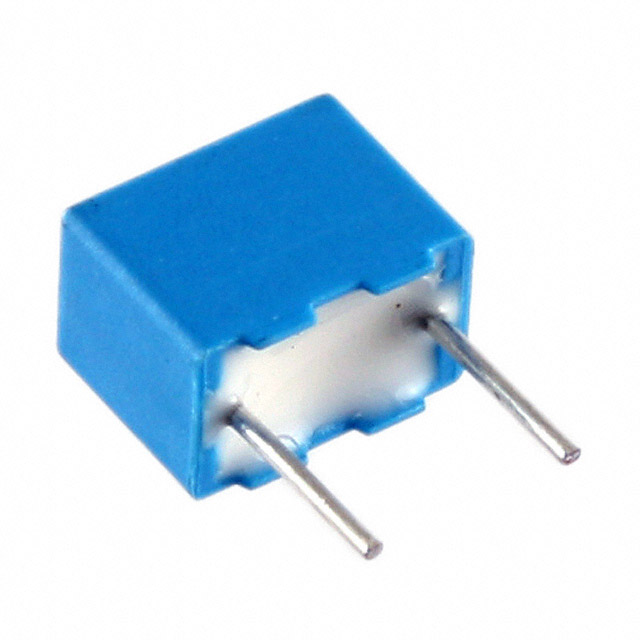

PFR5101J63J11L4BULK - PFR SERIES

PFR5101J63J11L4BULK

Active
KEMET

FILM CAPACITOR, 100PF, 63VDC, RADIAL ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet ENManufacturer Catalogue EN+2
PFR5101J63J11L4BULK - PFR SERIES

PFR5101J63J11L4BULK

Active
KEMET

FILM CAPACITOR, 100PF, 63VDC, RADIAL ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsTechnical Data Sheet ENManufacturer Catalogue EN+2

Technical Specifications

Parameters and characteristics for this part

SpecificationPFR5101J63J11L4BULK
ApplicationsSwitching, DV/DT, High Frequency, High Pulse
Capacitance100 pF
Dielectric MaterialPolypropylene (PP)
Height - Seated (Max) [Max]0.236 in
Height - Seated (Max) [Max]6 mm
Lead Spacing5 mm
Lead Spacing0.197 in
Mounting TypeThrough Hole
Operating Temperature [Max]100 °C
Operating Temperature [Min]-55 °C
Package / CaseRadial
Size / Dimension [x]7.2 mm
Size / Dimension [x]0.283 in
Size / Dimension [y]4.5 mm
Size / Dimension [y]0.177 "
TerminationPC Pins
Tolerance5 %
Voltage Rating - AC40 V
Voltage Rating - DC63 VDC

PFR5 Series

PartTerminationDielectric MaterialCapacitanceOperating Temperature [Max]Operating Temperature [Min]Lead SpacingLead SpacingPackage / CaseHeight - Seated (Max) [Max]Height - Seated (Max) [Max]Voltage Rating - DCSize / Dimension [y]Size / Dimension [y]Size / Dimension [x]Size / Dimension [x]Mounting TypeToleranceApplicationsVoltage Rating - ACVoltage Rating - DCSize / Dimension [y]
KEMET
PFR5471J100J11L4BULK
PC Pins
Polypropylene (PP)
470 pF
100 °C
-55 °C
5 mm
0.197 in
Radial
0.236 in
6 mm
100 V
4.5 mm
0.177 "
7.2 mm
0.283 in
Through Hole
5 %
DV/DT
High Frequency
High Pulse
Switching
63 V
KEMET
PFR5151J250J11L4BULK
PC Pins
Polypropylene (PP)
150 pF
100 °C
-55 °C
5 mm
0.197 in
Radial
0.236 in
6 mm
250 V
4.5 mm
0.177 "
7.2 mm
0.283 in
Through Hole
5 %
DV/DT
High Frequency
High Pulse
Switching
160 V
KEMET
PFR5221J1000J11L4BULK
PC Pins
Polypropylene (PP)
220 pF
100 °C
-55 °C
5 mm
0.197 in
Radial
0.236 in
6 mm
1 kVDC
4.5 mm
0.177 "
7.2 mm
0.283 in
Through Hole
5 %
DV/DT
High Frequency
High Pulse
Switching
250 V
1 kV
KEMET
PFR5102J63J11L4BULK
PC Pins
Polypropylene (PP)
0.001 µF
100 °C
-55 °C
5 mm
0.197 in
Radial
0.236 in
6 mm
63 VDC
4.5 mm
0.177 "
7.2 mm
0.283 in
Through Hole
5 %
DV/DT
High Frequency
High Pulse
Switching
40 V
KEMET
PFR5821J63J11L16.5TA16
PC Pins
Polypropylene (PP)
820 pF
100 °C
-55 °C
5 mm
0.197 in
Radial
0.236 in
6 mm
63 VDC
4.5 mm
0.177 "
7.2 mm
0.283 in
Through Hole
5 %
DV/DT
High Frequency
High Pulse
Switching
40 V
KEMET
PFR5471H100J11L4BULK
PC Pins
Polypropylene (PP)
470 pF
100 °C
-55 °C
5 mm
0.197 in
Radial
0.236 in
6 mm
100 V
4.5 mm
0.177 "
7.2 mm
0.283 in
Through Hole
2.5 %
DV/DT
High Frequency
High Pulse
Switching
63 V
KEMET
PFR5472F63J11L4BULK
PC Pins
Polypropylene (PP)
4700 pF
100 °C
-55 °C
5 mm
0.197 in
Radial
0.236 in
6 mm
63 VDC
4.5 mm
0.177 "
7.2 mm
0.283 in
Through Hole
1 %
DV/DT
High Frequency
High Pulse
Switching
40 V
KEMET
PFR5101J100J11L4BULK
PC Pins
Polypropylene (PP)
100 pF
100 °C
-55 °C
5 mm
0.197 in
Radial
0.236 in
6 mm
100 V
4.5 mm
0.177 "
7.2 mm
0.283 in
Through Hole
5 %
DV/DT
High Frequency
High Pulse
Switching
63 V
KEMET
PFR5101J63J11L4BULK
PC Pins
Polypropylene (PP)
100 pF
100 °C
-55 °C
5 mm
0.197 in
Radial
0.236 in
6 mm
63 VDC
4.5 mm
0.177 "
7.2 mm
0.283 in
Through Hole
5 %
DV/DT
High Frequency
High Pulse
Switching
40 V
KEMET
PFR5472J100J12L4BULK
PC Pins
Polypropylene (PP)
4700 pF
100 °C
-55 °C
5 mm
0.197 in
Radial
0.276 "
7 mm
100 V
0.283 in
7.2 mm
Through Hole
5 %
DV/DT
High Frequency
High Pulse
Switching
63 V
0.217 in
5.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 1.48
10$ 0.93
50$ 0.71
100$ 0.64
500$ 0.53
1000$ 0.49
3000$ 0.44
5000$ 0.43
NewarkEach 10$ 0.96
25$ 0.85
50$ 0.73
100$ 0.66
500$ 0.54
1000$ 0.50

Description

General part information

PFR5 Series

100 pF Film Capacitor 40V 63V Polypropylene (PP) Radial
