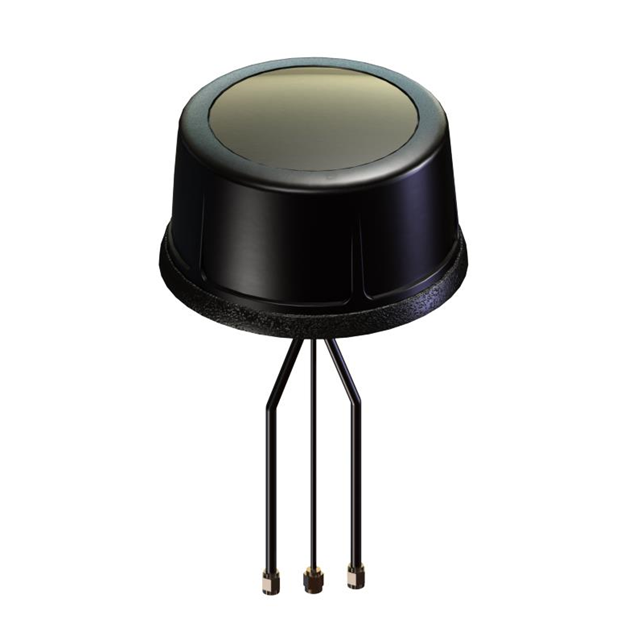

VLT69273BW11J-518A

Active

TE Connectivity Raychem Cable Protection

ANT 3-PORT 1X-4G, 1X-WIFI-GNSS,

Deep-Dive with AI

Search across all available documentation for this part.

VLT69273BW11J-518A

Active

TE Connectivity Raychem Cable Protection

ANT 3-PORT 1X-4G, 1X-WIFI-GNSS,

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VLT69273BW11J-518A

null

VLT69273 Series

Part	Features	Number of Bands	Height (Max) [Max]	Height (Max) [Max]	Power - Max [Max]	RF Family/Standard	Gain	Ingress Protection	Frequency (Center/Band)	Termination	Frequency Group	VSWR	Applications	Frequency Range [Max]	Frequency Range [Min]	Antenna Type
TE Connectivity Raychem Cable Protection VLT69273B2NJ-518A	5.18 m	11	2.953 in	75 mm	50 W	Cellular Navigation	2.3 dBi 2.7 dBi 3.3 dBi 4.6 dBi 4.8 dBi 4.9 dBi 5 dBi 5.7 dBi 28 dBi	IP67	1.561 GHz 1.575 GHz 1.602 GHz 1.795 GHz 1.92 GHz 2.04 GHz 2.4 GHz 2.6 GHz 752 MHz 859 MHz 920 MHz	SMA Male (2)	Wide Band	2	Beidou GLONASS GPS LTE	1.563 GHz 1.576 GHz 1.607 GHz 1.88 GHz 1.99 GHz 2.17 GHz 2.5 GHz 2.7 GHz 806 MHz 894 MHz 960 MHz	1.559 GHz 1.574 GHz 1.597 GHz 1.71 GHz 1.85 GHz 1.91 GHz 2.3 GHz 2.5 GHz 698 MHz 824 MHz 880 MHz	Dome
TE Connectivity Raychem Cable Protection VLT69273B11G-518A		3	2.953 in	75 mm	50 W	Cellular Navigation WiFi	6 dB	IP67	1.575 GHz 2.2 GHz 2.5 GHz 5.4 GHz 829 MHz	RP-SMA Male SMA Male	Wide Band	2	GPS LTE WLAN	1.578 GHz 2.7 GHz 6 GHz 960 MHz	1.572 GHz 1.7 GHz 2.3 GHz 4.9 GHz 698 MHz	Dome
TE Connectivity Raychem Cable Protection VLT69273BW11J-518A
TE Connectivity Raychem Cable Protection VLT69273B11J-518A	5.18 m	7	2.953 in	75 mm	50 W	Cellular Navigation WiFi	2 dBic 4.1 dBi 4.2 dBi 4.9 dBi 28 dBi	IP67	1.561 GHz 1.575 GHz 1.602 GHz 2.205 GHz 2.5 GHz 5.4 GHz 829 MHz	RP-SMA Male SMA Male (2)	Wide Band	2	Beidou GLONASS GPS LTE Wi-Fi	1.563 GHz 1.576 GHz 1.607 GHz 2.7 GHz 5.9 GHz 960 MHz	1.559 GHz 1.574 GHz 1.597 GHz 1.71 GHz 2.3 GHz 4.9 GHz 698 MHz	Dome
TE Connectivity Raychem Cable Protection VLT69273B2NG-518A		3	2.953 in	75 mm	50 W	Cellular Navigation	2.6 dBi	IP67	1.575 GHz 2.2 GHz 829 MHz		Wide Band	2	GPS LTE	2.7 GHz 960 MHz	1.71 GHz 698 MHz	Dome
TE Connectivity Raychem Cable Protection VLT69273B2NG-518A		3	2.953 in	75 mm	50 W	Cellular Navigation	2.6 dBi	IP67	1.575 GHz 2.2 GHz 829 MHz		Wide Band	2	GPS LTE	2.7 GHz 960 MHz	1.71 GHz 698 MHz	Dome
TE Connectivity Raychem Cable Protection VLT69273W2NJ-518A	5.18 m	11	2.953 in	75 mm	50 W	Cellular Navigation	1.8 dBi 2 dBic 2.4 dBi 4 dBi 4.5 dBi 5.1 dBic 28 dBi	IP67	1.561 GHz 1.575 GHz 1.602 GHz 1.795 GHz 1.92 GHz 2.04 GHz 2.4 GHz 2.6 GHz 752 MHz 859 MHz 920 MHz	SMA Male (2)	Wide Band	2	Beidou GLONASS GPS LTE	1.563 GHz 1.576 GHz 1.607 GHz 1.88 GHz 1.99 GHz 2.17 GHz 2.5 GHz 2.7 GHz 806 MHz 894 MHz 960 MHz	1.559 GHz 1.574 GHz 1.597 GHz 1.71 GHz 1.85 GHz 1.91 GHz 2.3 GHz 2.5 GHz 698 MHz 824 MHz 880 MHz	Dome

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

VLT69273 Series

RF ANTENNA

Documents

Technical documentation and resources

No documents available
