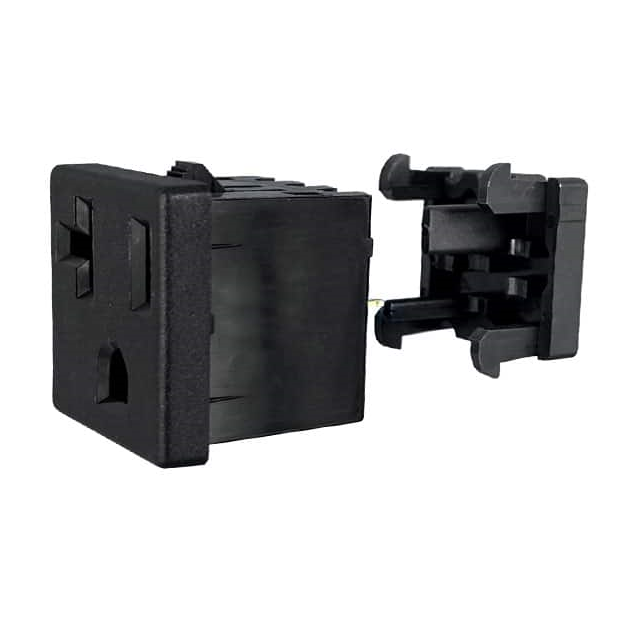

739W-X2/20

Active

Qualtek

PWR ENT RCPT NEMA5-20 PANEL IDC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet IEC Connector Designations

739W-X2/20

Active

Qualtek

PWR ENT RCPT NEMA5-20 PANEL IDC

Deep-Dive with AI

DocumentsDatasheet IEC Connector Designations

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	739W-X2/20

Approval Agency	UL, cUL
Connector Style	NEMA 5-20R
Connector Type	Receptacle, Female Sockets
Current Rating (Amps)	20 A
Features	Terminating Cover
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	24.5 mm
Panel Cutout Dimensions [y]	24.5 mm
Panel Thickness [Max]	1.8 mm
Panel Thickness [Max]	0.071 "
Panel Thickness [Min]	0.031 "
Panel Thickness [Min]	0.79 mm
Termination	IDC
Voltage Rating	125 VAC

739W-X2 Series

Part	Features	Mounting Type	Connector Type	Current Rating (Amps)	Approval Agency	Voltage Rating	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Termination	Connector Style	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Termination	Termination
Qualtek 739W-X2/45-WH1	Tamper Resistant Terminating Cover	Panel Mount Snap-In	Receptacle Female Sockets	15 A	cUL UL	125 VAC	24.5 mm	24.5 mm	IDC	NEMA 5-15R	0.079 "	0.031 "	2 mm	0.79 mm
Qualtek 739W-X2/30	Terminating Cover	Panel Mount Snap-In	Receptacle Female Sockets	20 A	cUL UL	125 VAC	24.5 mm	24.5 mm	Solder	NEMA 5-20R	0.071 "	0.031 "		0.79 mm	1.8 mm
Qualtek 739W-X2/31		Panel Mount Snap-In	Receptacle Female Sockets	20 A		125 VAC			IDC	NEMA 5-20R
Qualtek 739W-X2/03	Terminating Cover	Panel Mount Snap-In	Receptacle Female Sockets	15 A	CSA UL	125 VAC	24.5 mm	24.5 mm	IDC	NEMA 5-15R	0.071 "	0.031 "		0.79 mm	1.8 mm
Qualtek 739W-X2/32-A		Panel Mount Snap-In	Receptacle Female Sockets	15 A	cUL UL	125 VAC	24.5 mm	24.5 mm	Solder	NEMA 5-15R	0.071 "	0.031 "		0.8 mm	1.8 mm
Qualtek 739W-X2/20	Terminating Cover	Panel Mount Snap-In	Receptacle Female Sockets	20 A	cUL UL	125 VAC	24.5 mm	24.5 mm	IDC	NEMA 5-20R	0.071 "	0.031 "		0.79 mm	1.8 mm
Qualtek 739W-X2/32		Panel Mount Snap-In	Receptacle Female Sockets	15 A	cUL UL	125 VAC	24.5 mm	24.5 mm	Solder	NEMA 5-15R	0.071 "	0.031 "		0.8 mm	1.8 mm
Qualtek 739W-X2/04	Terminating Cover	Panel Mount Snap-In	Receptacle Female Sockets	10 A	CSA cUL UL	125 VAC	24.5 mm	24.5 mm	IDC Quick Connect	NEMA 5-15R	0.071 "	0.031 "		0.79 mm	1.8 mm	0.189 in	4.8 mm
Qualtek 739W-X2/55	Cover	Panel Mount Snap-In	Receptacle Female Sockets	20 A	cUL UL	125 VAC	24.5 mm	24.5 mm	IDC	NEMA 5-20R	0.079 "	0.031 "	2 mm	0.79 mm
Qualtek 739W-X2/20-WH1	Terminating Cover	Panel Mount Snap-In	Receptacle Female Sockets	20 A	cUL UL	125 VAC	24.5 mm	24.5 mm	IDC	NEMA 5-20R	0.071 "	0.031 "		0.8 mm	1.8 mm
