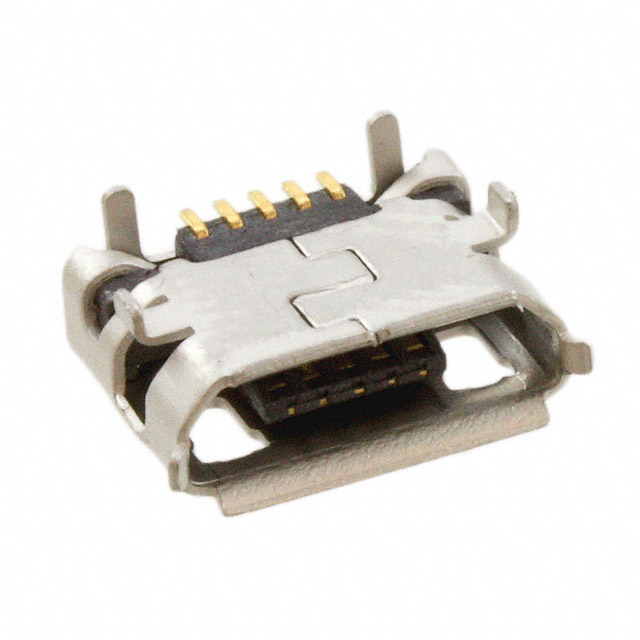

10118194-0011LF - 10118194-0001LF

10118194-0011LF

Active
Amphenol ICC (FCI)

CONN RCPT USB2.0 MICRO B SMD R/A

Deep-Dive with AI

Search across all available documentation for this part.

Documentsmicro usb 2 0 productpresentation Other Related DocumentDatasheet+1
10118194-0011LF - 10118194-0001LF

10118194-0011LF

Active
Amphenol ICC (FCI)

CONN RCPT USB2.0 MICRO B SMD R/A

Deep-Dive with AI

Documentsmicro usb 2 0 productpresentation Other Related DocumentDatasheet+1

Technical Specifications

Parameters and characteristics for this part

Specification10118194-0011LF
Connector TypeUSB - micro B
Contact FinishGold
Current Rating (Amps)1.8 A
FeaturesSolder Retention
GenderReceptacle
Insulation ColorBlack
Material Flammability RatingUL94 V-0
Mating Cycles10000
Mounting FeatureHorizontal
Mounting TypeThrough Hole, Surface Mount, Right Angle
Number of Contacts5
Number of Ports1
Operating Temperature [Max]80 C
Operating Temperature [Min]-30 ░C
Shell/Shielding MaterialStainless, Steel
ShieldingShielded
SpecificationsUSB 2.0
TerminationSolder
Voltage - Rated100 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.64
10$ 0.49
25$ 0.44
50$ 0.41
100$ 0.37
250$ 0.34
500$ 0.31
Digi-Reel® 1$ 0.64
10$ 0.49
25$ 0.44
50$ 0.41
100$ 0.37
250$ 0.34
500$ 0.31
Tape & Reel (TR) 1200$ 0.28
2400$ 0.26
3600$ 0.25
6000$ 0.24
8400$ 0.23
12000$ 0.23
30000$ 0.21

Description

General part information

10118194 Series

USB - micro B USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle; Through Hole
