T4081122004-000
ActiveTE Connectivity AMP Connectors

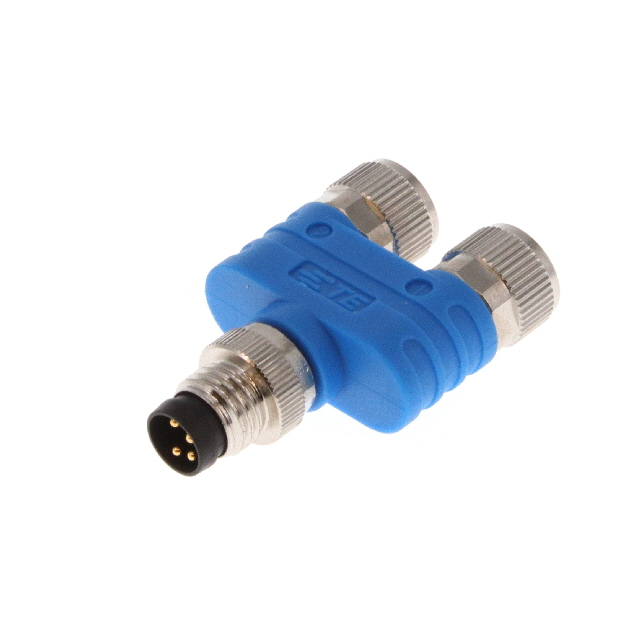

CONN Y-ADPT 4P-3P M-F/F INLINE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T4081122004-000 | T40811 Series |
|---|---|---|
| Connector Style | Distributor Y-Shaped | Distributor Y-Shaped |
| Convert From (Adapter End) | Male Pins | Male Pins |
| Convert To (Adapter End) | Female Sockets (2) | Female Sockets (2) |
| Current Rating (Amps) | 3 A | 3 A |
| Features | Coupling Nut | Coupling Nut |
| Housing Color | Blue | Blue |
| Housing Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions (Convert From) | 4 | 3 - 4 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Orientation (Convert From) | A | A |
| Orientation (Convert To) | A | A |
| Shell Size - Insert (Convert From) | M8 | M8 |
| Shell Size - Insert (Convert To) [custom] | M8 | M8 |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 30 VDC | 30 - 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.96 | |
| 10 | $ 14.05 | |||
| 25 | $ 13.04 | |||
| 50 | $ 12.33 | |||
| 100 | $ 11.65 | |||
| 250 | $ 10.82 | |||
| 500 | $ 10.24 | |||
| 1000 | $ 9.91 | |||
T40811 Series
CONN Y-ADPT 4P-3P M-F/F INLINE
| Part | Ingress Protection | Features | Connector Style | Orientation (Convert From) | Shell Size - Insert (Convert From) | Operating Temperature [Min] | Operating Temperature [Max] | Convert To (Adapter End) | Orientation (Convert To) | Shell Size - Insert (Convert To) [custom] | Number of Positions (Convert From) | Current Rating (Amps) | Shielding | Housing Material | Voltage Rating | Convert From (Adapter End) | Housing Color | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4081122004-000 | IP67 - Dust Tight, Waterproof | Coupling Nut | Distributor Y-Shaped | A | M8 | -25 °C | 85 °C | Female Sockets (2) | A | M8 | 4 | 3 A | Unshielded | Polyamide (PA), Nylon | 30 VDC | Male Pins | Blue | Free Hanging (In-Line) |
TE Connectivity AMP Connectors T4081112003-000 | IP67 - Dust Tight, Waterproof | Coupling Nut | Distributor Y-Shaped | A | M8 | -25 °C | 85 °C | Female Sockets (2) | A | M8 | 3 | 3 A | Unshielded | Polyamide (PA), Nylon | 60 VDC | Male Pins | Blue | Free Hanging (In-Line) |
Description
General part information
T40811 Series
Circular Connector Distributor Y-Shaped 4/3 Male Pins/Female Sockets (2) Free Hanging (In-Line)
