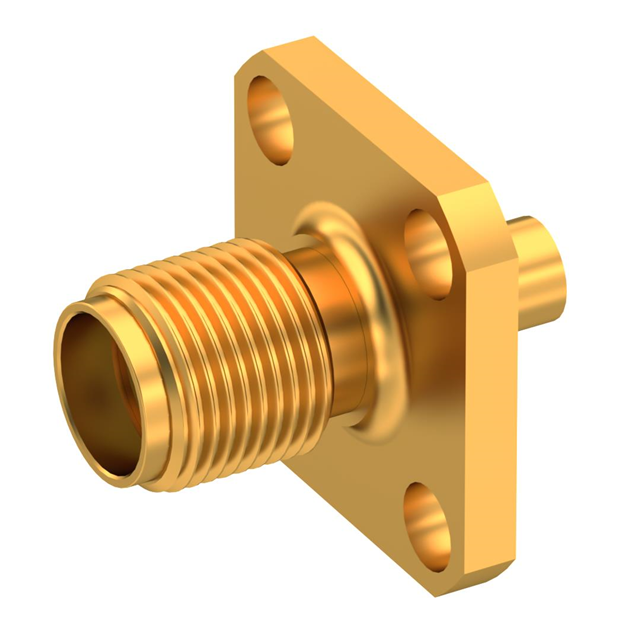

9431-1583-010

Active

Radiall USA, Inc.

SMA F STR SQF SD .085

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA F STR SQF SD .085

Technical Specifications

Parameters and characteristics for this part

Specification	9431-1583-010

Body Finish	Gold
Body Material	Stainless Steel
Cable Group	RG-405 (.085" Semi Rigid)
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	350 V

Part	Cable Group	Connector Type	Center Contact Material	Body Material	Mounting Feature	Shield Termination	Number of Ports	Housing Color	Frequency - Max [Max]	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Impedance	Dielectric Material	Voltage Rating	Connector Style	Body Finish	Center Contact Plating
Radiall USA, Inc. 9431-1583-010	RG-405 (.085" Semi Rigid)	Female Socket Jack	Beryllium Copper	Stainless Steel	Flange	Solder	1	Gold	18 GHz	Solder	-65 ░C	105 ░C	500	50 Ohms	Polytetrafluoroethylene (PTFE)	350 V	SMA	Gold	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Jack, Female Socket 50 Ohms Panel Mount Solder
