Q-2I05C0005012i

Active

Amphenol Custom Cable

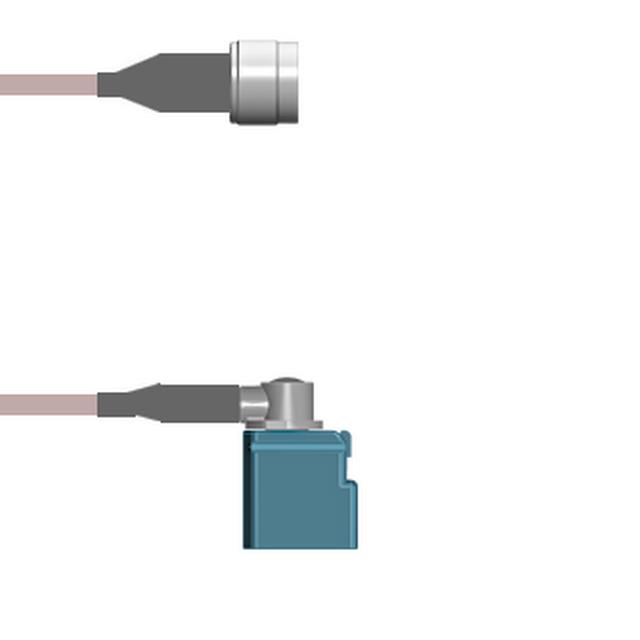

CBL ASSY NTYPE-FAKRA PLG-JCK 12"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2I05C0005012i

Active

Amphenol Custom Cable

CBL ASSY NTYPE-FAKRA PLG-JCK 12"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2I05C0005012i

1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	Fakra Jack, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	12 "
Length	304.8 mm
Overall Impedance	50 Ohms
Style	N-Type to Fakra

Q-2I05C0 Series

Part	2nd Contact Gender	2nd Connector	2nd Connector Mounting Type	Style	1st Contact Gender	Frequency - Max [Max]	Length	Length	Length	Overall Impedance	Cable Type	Features	Color	1st Connector Mounting Type
Amphenol Custom Cable Q-2I05C0003072i	Female	Fakra Jack Right Angle	Free Hanging (In-Line)	N-Type to Fakra	Male	3 GHz	6 ft	72 in	1.8 m	50 Ohms	RG-174	Shielded	Black	Free Hanging (In-Line)
Amphenol Custom Cable Q-2I05C00031.5M	Female	Fakra Jack Right Angle	Free Hanging (In-Line)	N-Type to Fakra	Male	3 GHz	4.9 ft	59.1 in	1.5 m	50 Ohms	RG-174	Shielded	Black	Free Hanging (In-Line)
Amphenol Custom Cable Q-2I05C0005048i	Female	Fakra Jack Right Angle	Free Hanging (In-Line)	N-Type to Fakra	Male	3 GHz	4 ft	48 in	1200 mm	50 Ohms	RG-316	Shielded	Copper	Free Hanging (In-Line)
Amphenol Custom Cable Q-2I05C0003024i	Female	Fakra Jack Right Angle	Free Hanging (In-Line)	N-Type to Fakra	Male	3 GHz		24 "	609.6 mm	50 Ohms	RG-174	Shielded	Black	Free Hanging (In-Line)
Amphenol Custom Cable Q-2I05C0003006i	Female	Fakra Jack Right Angle	Free Hanging (In-Line)	N-Type to Fakra	Male	3 GHz		6 in	152.4 mm	50 Ohms	RG-174	Shielded	Black	Free Hanging (In-Line)
Amphenol Custom Cable Q-2I05C0005009i	Female	Fakra Jack Right Angle	Free Hanging (In-Line)	N-Type to Fakra	Male	3 GHz		9 "	228.6 mm	50 Ohms	RG-316	Shielded	Copper	Free Hanging (In-Line)
Amphenol Custom Cable Q-2I05C0005108i	Female	Fakra Jack Right Angle	Free Hanging (In-Line)	N-Type to Fakra	Male	3 GHz	9 ft	108 in	2.7 m	50 Ohms	RG-316	Shielded	Copper	Free Hanging (In-Line)
Amphenol Custom Cable Q-2I05C0003009i	Female	Fakra Jack Right Angle	Free Hanging (In-Line)	N-Type to Fakra	Male	3 GHz		9 "	228.6 mm	50 Ohms	RG-174	Shielded	Black	Free Hanging (In-Line)
Amphenol Custom Cable Q-2I05C0003036i	Female	Fakra Jack Right Angle	Free Hanging (In-Line)	N-Type to Fakra	Male	3 GHz		36 in	91.44 cm	50 Ohms	RG-174	Shielded	Black	Free Hanging (In-Line)
Amphenol Custom Cable Q-2I05C0005012i	Female	Fakra Jack Right Angle	Free Hanging (In-Line)	N-Type to Fakra	Male	3 GHz		12 "	304.8 mm	50 Ohms	RG-316	Shielded	Copper	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 92.29
		25	$ 90.49
		50	$ 88.69
		100	$ 86.89
		250	$ 85.09

Description

General part information

Q-2I05C0 Series

Cable Assembly Coaxial N-Type to Fakra RG-316 12.00" (304.80mm)

Documents

Technical documentation and resources

No documents available
