TK3R1P04PL,RQ
ActiveToshiba Semiconductor and Storage

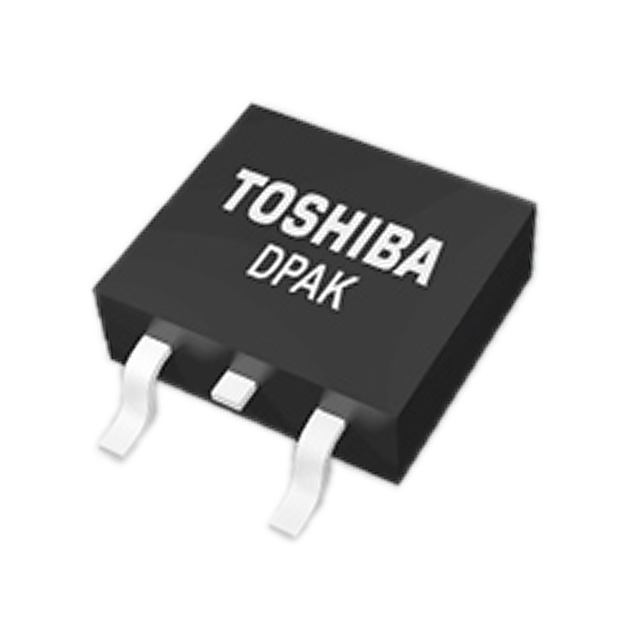

12V - 300V MOSFETS, N-CH MOSFET, 40 V, 0.0031 Ω@10V, DPAK, U-MOSⅨ-H
TK3R1P04PL,RQ
ActiveToshiba Semiconductor and Storage
12V - 300V MOSFETS, N-CH MOSFET, 40 V, 0.0031 Ω@10V, DPAK, U-MOSⅨ-H
Description
General part information
TK3R1P04PL Series
N-Channel 40 V 58A (Tc) 87W (Tc) Surface Mount DPAK
Technical Specifications
Parameters and characteristics for this part
| Specification | TK3R1P04PL,RQ |
|---|---|
| Current - Continuous Drain (Id) (Tc) | 58 A |
| Drain to Source Voltage (Vdss) | 40 V |
| Drive Voltage (Max Rds On) | 4.5 V |
| Drive Voltage (Min Rds On) | 10 V |
| FET Type | N-Channel |
| Gate Charge (Max) | 60 nC |
| Input Capacitance (Ciss) (Max) | 4670 pF |
| Mounting Type | Surface Mount |
| Operating Temperature | 175 °C |
| Package / Case | SC-63, DPAK (2 Leads + Tab), TO-252-3 |
| Package Name | DPak |
| Power Dissipation (Max) | 87 W |
| Rds On (Max) | 3.1 mOhm |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V |
| Vgs(th) (Max) | 2.4 V |
