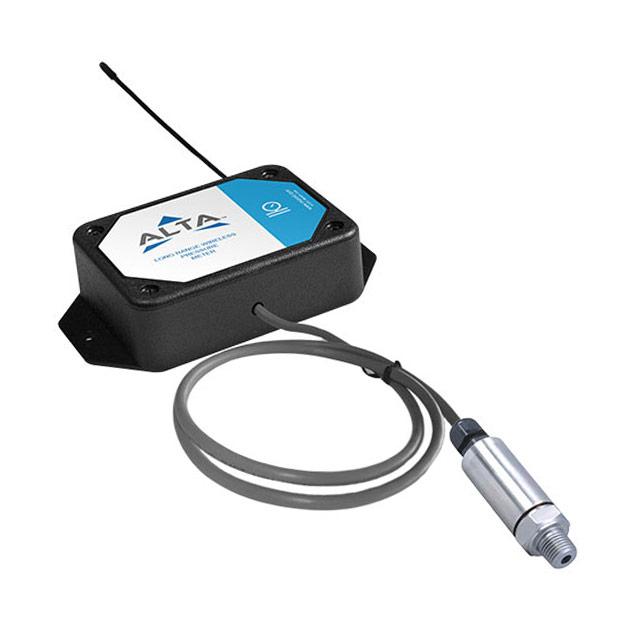

MNS2-9-W2-PS-300

Active

Monnit Corporation

ALTA WIRELESS PRESSURE METER - 3

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MNS2-9-W2-PS-300

Active

Monnit Corporation

ALTA WIRELESS PRESSURE METER - 3

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 379.13
		10	$ 366.72

Description

General part information

MNS2-9 Series

ALTA WIRELESS PRESSURE METER - 3

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MNS2-9-W2-PS-300	MNS2-9 Series

Acceleration Range	-	2 g
Acceleration Range	-	-2 g
Accuracy	0.5 %	0.5 - 3 %
Accuracy - Highest (Lowest)	-	0.5 - 3.3 °C
Applications	Industrial Automation	Industrial Automation
Axis	-	Z
Axis	-	Y
Axis	-	X
Bandwidth	-	800 Hz
Current - Sensing	-	20 - 150 A
Current - Supply (Max)	-	22.6 - 35 mA
Features	-	Sleep Mode
For Measuring	-	AC
Frequency	-	50 Hz
Frequency	-	100 Hz
Humidity Range	-	0 % RH
Humidity Range	-	100 % RH
Mounting Type	-	Chassis Mount
Operating Pressure	300 PSI	50 - 300 PSI
Operating Pressure	2068.43 kPa	344.74 - 2068.43 kPa
Operating Temperature [Max]	85 °C	55 - 85 °C
Operating Temperature [Min]	-40 °C	-40 - -18 °C
Output Type	Analog Voltage	Voltage, Analog Voltage, PNP - Open Collector
Output Type	-	900 MHz
Package / Case	IoT Finished Device	IoT Finished Device
Port Size [custom]	NPT	NPT
Port Size [custom]	Male	Male
Port Size [x]	0.25 "	0.25 "
Port Size [x]	6.35 mm	6.35 mm
Port Style	Threaded	Threaded
Response Time	-	8 s
Sensor Type	-	Dry Contact Sensor, Current Sensor, Voltage Detection, Voltage, Water Detection, Water Temperature Sensor, Temperature, Humidity, Pulse Counter, Water Rope Sensor, Closed, Open, Button Press Sensor
Termination Style	Connector	Connector
Type	-	Digital
Voltage - Supply [Max]	3.8 V	3.8 V
Voltage - Supply [Min]	2 V	2 V

MNS2-9 Series

ALTA INDUSTRIAL WIRELESS TEMPERA

Part	Mounting Type	Package / Case	Accuracy - Highest (Lowest)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Axis [z]	Axis [y]	Axis [x]	Acceleration Range [Max]	Acceleration Range [Min]	Features	Type	Bandwidth	Sensor Type	Output Type	Accuracy	For Measuring	Current - Sensing	Frequency [Min]	Frequency [Max]	Current - Supply (Max) [Max]	Output Type
Monnit Corporation MNS2-9-IN-TS-ST	Chassis Mount	IoT Finished Device	1 °C	85 °C	-40 °C	3.8 V	2 V
Monnit Corporation MNS2-9-W2-AC-GS	Chassis Mount	IoT Finished Device		85 °C	-40 °C	3.8 V	2 V	Z	Y	X	2 g	-2 g	Sleep Mode	Digital	800 Hz
Monnit Corporation MNS2-9-W1-DC-CF				85 °C	-40 °C											Dry Contact Sensor	900 MHz
Monnit Corporation MNS2-9-IN-CM-020	Chassis Mount	IoT Finished Device		85 °C	-40 °C	3.8 V	2 V									Current Sensor		2 %	AC	20 A	50 Hz	100 Hz	35 mA
Monnit Corporation MNS2-9-W1-TS-ST-L03	Chassis Mount	IoT Finished Device	1 °C	85 °C	-40 °C	3.8 V	2 V
Monnit Corporation MNS2-9-IN-AC-VM	Chassis Mount	IoT Finished Device		85 °C	-40 °C	3.8 V	2 V	Z	Y	X			Sleep Mode
Monnit Corporation MNS2-9-W1-VD-DC				85 °C	-40 °C											Voltage Detection	900 MHz							Voltage
Monnit Corporation MNS2-9-W2-MA-020	Chassis Mount	IoT Finished Device		55 °C	-18 °C	3.8 V	2 V									Current Sensor				20 mA			22.6 mA
Monnit Corporation MNS2-9-IN-MA-020	Chassis Mount	IoT Finished Device		85 °C	-40 °C	3.8 V	2 V									Current Sensor				20 mA			22.6 mA
Monnit Corporation MNS2-9-W2-VM-500				85 °C	-40 °C											Voltage	900 MHz							Voltage
