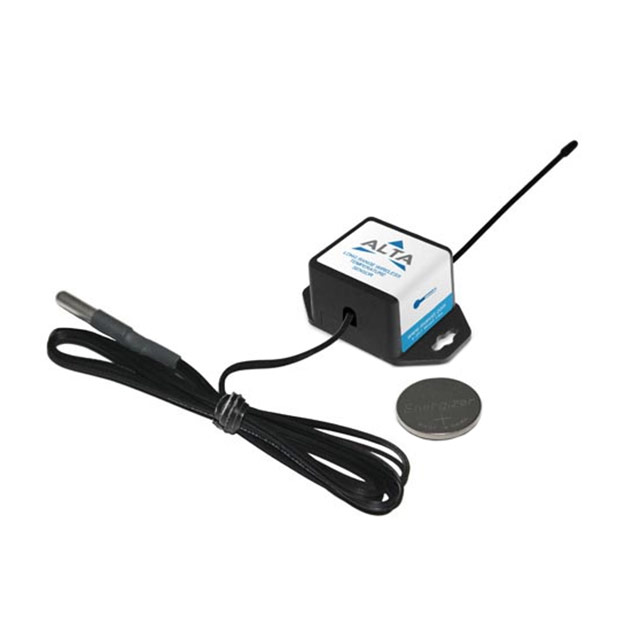

ALTA WIRELESS TEMPERATURE SENSOR

Deep-Dive with AI

Search across all available documentation for this part.

MNS2-9-W1-TS-ST-L03

Active

Monnit Corporation

ALTA WIRELESS TEMPERATURE SENSOR

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MNS2-9-W1-TS-ST-L03

Accuracy - Highest (Lowest)	1 °C
Mounting Type	Chassis Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	IoT Finished Device
Voltage - Supply [Max]	3.8 V
Voltage - Supply [Min]	2 V

MNS2-9 Series

Part	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Sensor Type	Operating Pressure	Operating Pressure	Termination Style	Applications	Package / Case	Accuracy	Port Size [custom]	Port Size [x]	Port Size [x]	Port Size [custom]	Port Style	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Type	Humidity Range [Min]	Humidity Range [Max]	Mounting Type	Response Time	Type	Acceleration Range [Max]	Acceleration Range [Min]	Features	Bandwidth	Axis [z]	Axis [y]	Axis [x]	Accuracy - Highest (Lowest)
Monnit Corporation MNS2-9-W2-DC-CF-L01	900 MHz	85 °C	-40 °C	Dry Contact Sensor
Monnit Corporation MNS2-9-W2-PS-050		85 °C	-40 °C		50 PSI	344.74 kPa	Connector	Industrial Automation	IoT Finished Device	0.5 %	NPT	0.25 "	6.35 mm	Male	Threaded	3.8 V	2 V	Analog Voltage
Monnit Corporation MNS2-9-W2-HU-RH		85 °C	-40 °C	Humidity Temperature					IoT Finished Device	3 % RH						3.8 V	2 V	Analog Voltage	0 % RH	100 % RH	Chassis Mount	8 s
Monnit Corporation MNS2-9-W1-AC-GS		85 °C	-40 °C						IoT Finished Device							3.8 V	2 V				Chassis Mount		Digital	2 g	-2 g	Sleep Mode	800 Hz	Z	Y	X
Monnit Corporation MNS2-9-IN-VD-AC	900 MHz	85 °C	-40 °C	Voltage Detection														Voltage
Monnit Corporation MNS2-9-IN-TS-LT-L03		85 °C	-40 °C						IoT Finished Device							3.8 V	2 V				Chassis Mount										0.5 °C 3.3 °C
Monnit Corporation MNS2-9-W1-TS-ST		85 °C	-40 °C						IoT Finished Device							3.8 V	2 V				Chassis Mount										1 °C
Monnit Corporation MNS2-9-IN-VM-500	900 MHz	85 °C	-40 °C	Voltage														Voltage
Monnit Corporation MNS2-9-W2-WS-WD-L03-WP	900 MHz	85 °C	-40 °C	Water Detection
Monnit Corporation MNS2-9-IN-AC-IM		85 °C	-40 °C						IoT Finished Device							3.8 V	2 V				Chassis Mount		Digital	2 g	-2 g	Sleep Mode	800 Hz	Z	Y	X

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 103.58
		5	$ 87.36
		10	$ 81.19
		25	$ 73.71
		50	$ 68.51
		100	$ 63.75

Description

General part information

MNS2-9 Series

ALTA WIRELESS TEMPERATURE SENSOR

Documents

Technical documentation and resources

No documents available
