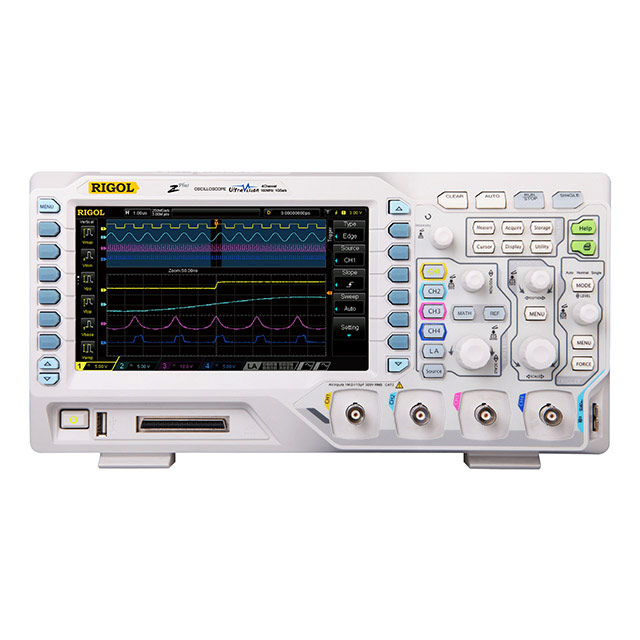

DS1074Z-S PLUS

Active

RIGOL Technologies, Inc

OSCILLOSCOPE 70 MHZ DIG 4CH PLUS

Search across all available documentation for this part.

Active

RIGOL Technologies, Inc

OSCILLOSCOPE 70 MHZ DIG 4CH PLUS

Technical Specifications

Parameters and characteristics for this part

Specification	DS1074Z-S PLUS

Bandwidth	70 MHz
Channels	4 Analog
Display Type	LCD - Color
Includes	USB Cable, Power Cord, Passive Probes
Input Impedance	1 M, 15 pF
Interface	RS232, Ethernet, USB
Memory Size	6 K Words
Probe Type	Passive 1:1 (4)
Rise Time (Typ)	5 ns
Sampling Rate (Per Second)	250 M
Type	Bench, Digital
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	100 VAC

OSCILLOSCOPE 70 MHZ DIG 4CH PLUS

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Bandwidth	Probe Type	Rise Time (Typ)	Sampling Rate (Per Second)	Interface	Type	Input Impedance	Memory Size	Display Type	Channels	Includes
RIGOL Technologies, Inc DS1074Z-S PLUS	100 VAC	240 VAC	70 MHz	Passive 1:1 (4)	5 ns	250 M	Ethernet, RS232, USB	Bench, Digital	1 M, 15 pF	6 K Words	LCD - Color	4 Analog	Passive Probes, Power Cord, USB Cable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 659.00

General part information

70 MHz Bench, Digital Oscilloscopes Ethernet, RS232, USB Interface LCD - Color Display 4 Analog Channel CAT I 300V, CAT II 100V Record, Playback
