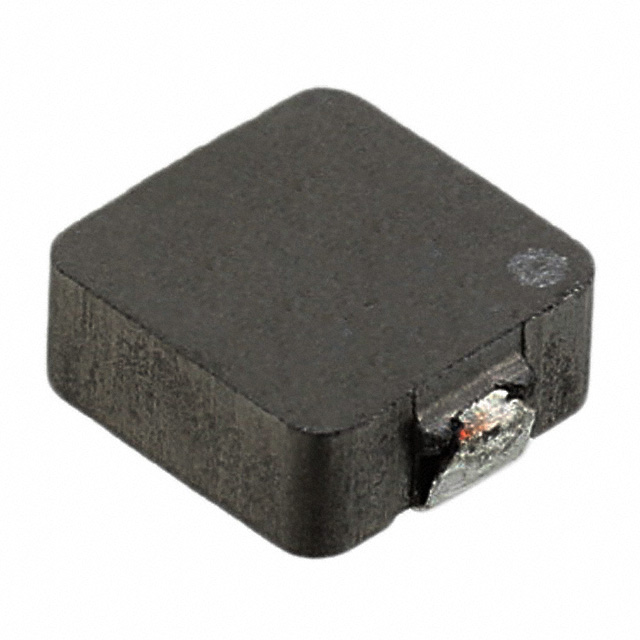

MPCH0730LR12
ActiveKEMET
FIXED IND 120NH 31A 0.65MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
MPCH0730LR12
ActiveKEMET
FIXED IND 120NH 31A 0.65MOHM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MPCH0730LR12 |
|---|---|
| Current - Saturation (Isat) | 32 A |
| Current Rating (Amps) | 31 A |
| DC Resistance (DCR) | 0.65 mOhm |
| Height - Seated (Max) | 3 mm |
| Height - Seated (Max) [Max] | 0.118 in |
| Inductance | 120 nH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Metal Composite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension [x] | 8 mm |
| Size / Dimension [x] | 0.315 " |
| Size / Dimension [y] | 6.7 mm |
| Size / Dimension [y] | 0.264 in |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.69 | |
| 10 | $ 1.43 | |||
| 25 | $ 1.32 | |||
| 50 | $ 1.18 | |||
| 100 | $ 0.98 | |||
| 250 | $ 0.96 | |||
| 500 | $ 0.90 | |||
| Digi-Reel® | 1 | $ 1.69 | ||
| 10 | $ 1.43 | |||
| 25 | $ 1.32 | |||
| 50 | $ 1.18 | |||
| 100 | $ 0.98 | |||
| 250 | $ 0.96 | |||
| 500 | $ 0.90 | |||
| Tape & Reel (TR) | 1000 | $ 0.84 | ||
| 3000 | $ 0.82 | |||
| 5000 | $ 0.79 | |||
| 10000 | $ 0.75 | |||
| Newark | Each (Supplied on Full Reel) | 2000 | $ 0.85 | |
| 4000 | $ 0.77 | |||
| 6000 | $ 0.74 | |||
| 10000 | $ 0.71 | |||
Description
General part information
MPCH0730 Series
120 nH Shielded Inductor 31 A 0.65mOhm Nonstandard
