010632WF043

Active

Essentra Components

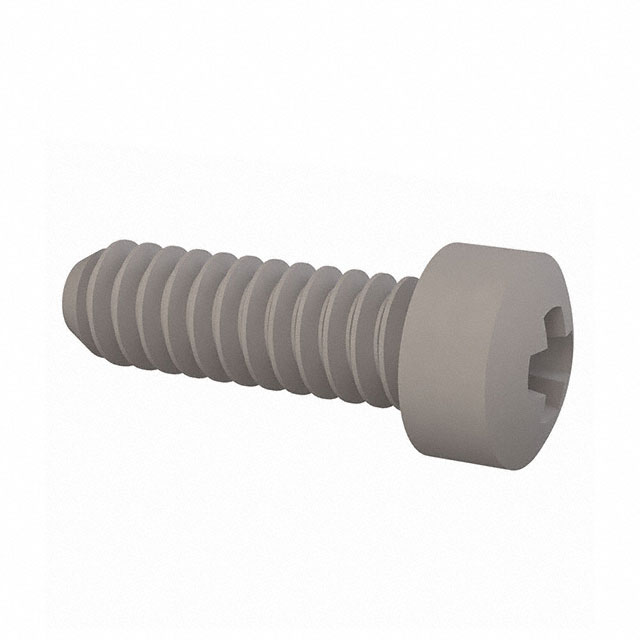

MACH SCREW PAN PHILLIPS #6-32

Deep-Dive with AI

Search across all available documentation for this part.

010632WF043

Active

Essentra Components

MACH SCREW PAN PHILLIPS #6-32

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	010632WF043	010632WF Series

Drive Type	Phillips	Phillips
Head Diameter [diameter]	5.51 mm	5.51 mm
Head Diameter [diameter]	0.217 "	0.217 "
Head Height	0.243 in	0.243 in
Head Height	6.17 mm	6.17 mm
Length - Below Head	-	0.875 - 25.4 mm
Length - Below Head	-	0.25 - 1 in
Length - Below Head	-	0.25 - 22.23 in
Length - Below Head	-	0.188 - 2 in
Length - Below Head	-	4.76 - 50.8 mm
Length - Below Head	-	1/2
Length - Below Head [custom]	0.438 in	0.438 in
Length - Below Head [custom]	11.11 mm	11.11 mm
Length - Overall [x]	0.681 in	0.399 - 1.243 in
Length - Overall [x]	17.29 mm	10.14 - 31.57 mm
Material	Nylon	Nylon
Screw Head Type	Pan Head	Pan Head
Thread Size	#6-32	#6-32
Type	Machine Screw	Machine Screw

010632WF Series

FILLISTER PHILLIPS SCREW 6-32 TH

Part	Length - Below Head	Length - Below Head	Length - Below Head	Type	Head Height	Head Height	Screw Head Type	Material	Head Diameter [diameter]	Head Diameter [diameter]	Thread Size	Length - Overall [x]	Length - Overall [x]	Drive Type	Length - Below Head [custom]	Length - Below Head [custom]	Length - Below Head [x]	Length - Below Head [x]	Length - Below Head
Essentra Components 010632WF025	6.35 mm	0.25 in	0.25 in	Machine Screw	0.243 in	6.17 mm	Pan Head	Nylon	5.51 mm	0.217 "	#6-32	0.493 in	12.52 mm	Phillips
Essentra Components 010632WF043				Machine Screw	0.243 in	6.17 mm	Pan Head	Nylon	5.51 mm	0.217 "	#6-32	0.681 in	17.29 mm	Phillips	0.438 in	11.11 mm
Essentra Components 010632WF187				Machine Screw	0.243 in	6.17 mm	Pan Head	Nylon	5.51 mm	0.217 "	#6-32			Phillips			1.875 in	47.63 mm
Essentra Components 010632WF018				Machine Screw	0.243 in	6.17 mm	Pan Head	Nylon	5.51 mm	0.217 "	#6-32			Phillips			0.188 in	4.76 mm
Essentra Components 010632WF062	15.88 mm	0.625 in	0.625 in	Machine Screw	0.243 in	6.17 mm	Pan Head	Nylon	5.51 mm	0.217 "	#6-32	0.868 in	22.05 mm	Phillips
Essentra Components 010632WF200				Machine Screw	0.243 in	6.17 mm	Pan Head	Nylon	5.51 mm	0.217 "	#6-32			Phillips			2 in	50.8 mm
Essentra Components 010632WF050	12.7 mm	0.5 in		Machine Screw	0.243 in	6.17 mm	Pan Head	Nylon	5.51 mm	0.217 "	#6-32	0.743 in	18.87 mm	Phillips					1/2
Essentra Components 010632WF015				Machine Screw	0.243 in	6.17 mm	Pan Head	Nylon	5.51 mm	0.217 "	#6-32	0.399 in	10.14 mm	Phillips
Essentra Components 010632WF100	25.4 mm	1 in		Machine Screw	0.243 in	6.17 mm	Pan Head	Nylon	5.51 mm	0.217 "	#6-32	1.243 in	31.57 mm	Phillips
Essentra Components 010632WF068	17.46 mm			Machine Screw	0.243 in	6.17 mm	Pan Head	Nylon	5.51 mm	0.217 "	#6-32			Phillips			0.688 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.06

Description

General part information

010632WF Series

#6-32 Pan Head Machine Screw Phillips Drive Nylon

Documents

Technical documentation and resources

No documents available
