845-092-556-807
ActiveEDAC Inc.

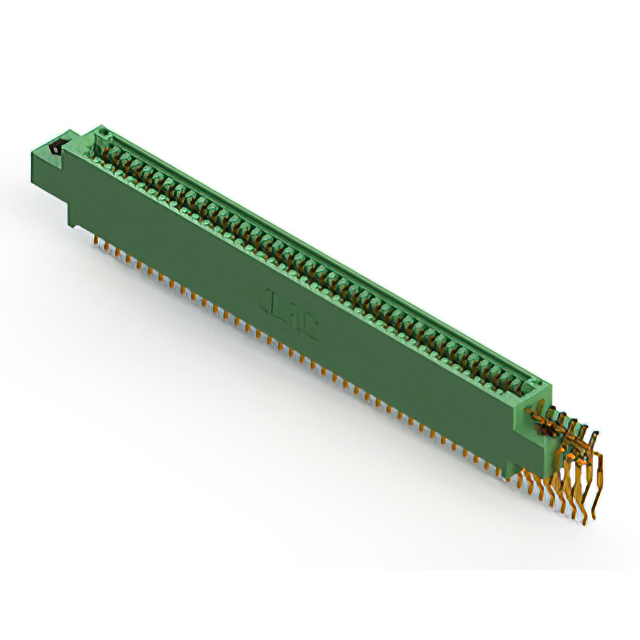

CONN EDGE DUAL FMALE 92POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
845-092-556-807
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 92POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 845-092-556-807 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | M3, Threaded Insert, Top Mount Opening |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 92 |
| Number of Positions/Bay/Row [custom] | 46 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
845-092 Series
...
| Part | Read Out | Material - Insulation | Number of Positions/Bay/Row [custom] | Contact Finish | Number of Positions | Contact Material | Termination Rows | Contact Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Mounting Type | Gender | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Features | Operating Temperature [Max] | Operating Temperature [Min] | Color | Termination | Pitch [x] | Pitch [x] | Card Type | Number of Rows | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Dual | Diallyl Phthalate (DAP) | 46 | Gold | 92 | Copper Alloy | 2 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Board Edge Straddle Mount | Female | 10 Áin | 0.25 Ám | 4-40 Threaded Insert Top Mount Opening | Card Extender | 125 °C | -40 °C | Green | Solder | 2.54 mm | 0.1 in | Non Specified - Dual Edge | 2 | ||||
EDAC Inc. | Dual | Diallyl Phthalate (DAP) | 46 | Gold | 92 | Copper Alloy | 2 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Female | 10 Áin | 0.25 Ám | M3 Threaded Insert Top Mount Opening | 125 °C | -40 °C | Green | Wire Wrap | 2.54 mm | 0.1 in | Non Specified - Dual Edge | 2 | |||||
EDAC Inc. | Dual | Diallyl Phthalate (DAP) | 46 | Gold | 92 | Copper Alloy | 2 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Female | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Green | Solder | 2.54 mm | 0.1 in | Non Specified - Dual Edge | 2 | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Dual | Diallyl Phthalate (DAP) | 46 | Gold | 92 | Copper Alloy | 2 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Female | 10 Áin | 0.25 Ám | 4-40 Flush Mount Threaded Insert Top Opening | 125 °C | -40 °C | Green | Wire Wrap | 2.54 mm | 0.1 in | Non Specified - Dual Edge | 2 | |||||
EDAC Inc. | Dual | Diallyl Phthalate (DAP) | 46 | Gold | 92 | Copper Alloy | 2 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Board Edge Straddle Mount | Female | 10 Áin | 0.25 Ám | M3 Threaded Insert Top Mount Opening | Card Extender | 125 °C | -40 °C | Green | Solder | 2.54 mm | 0.1 in | Non Specified - Dual Edge | 2 | ||||
EDAC Inc. | Dual | Diallyl Phthalate (DAP) | 46 | Gold | 92 | Copper Alloy | 2 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Female | 10 Áin | 0.25 Ám | Floating Bobbin Top Mount Opening | 125 °C | -40 °C | Green | Solder | 2.54 mm | 0.1 in | Non Specified - Dual Edge | 2 | 2.95 mm | 0.116 in | |||
EDAC Inc. | Dual | Diallyl Phthalate (DAP) | 46 | Gold | 92 | Copper Alloy | 2 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Board Edge Straddle Mount | Female | 10 Áin | 0.25 Ám | Flush Mount M3 Threaded Insert Top Opening | Card Extender | 125 °C | -40 °C | Green | Solder | 2.54 mm | 0.1 in | Non Specified - Dual Edge | 2 | ||||
EDAC Inc. | Dual | Diallyl Phthalate (DAP) | 46 | Gold | 92 | Copper Alloy | 2 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Female | 10 Áin | 0.25 Ám | 4-40 Threaded Insert Top Mount Opening | 125 °C | -40 °C | Green | Solder | 2.54 mm | 0.1 in | Non Specified - Dual Edge | 2 | |||||
EDAC Inc. | Dual | Diallyl Phthalate (DAP) | 46 | Gold | 92 | Copper Alloy | 2 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | Female | 10 Áin | 0.25 Ám | Floating Bobbin Top Mount Opening | 125 °C | -40 °C | Green | Solder | 2.54 mm | 0.1 in | Non Specified - Dual Edge | 2 | 2.95 mm | 0.116 in | |||
EDAC Inc. | Dual | Diallyl Phthalate (DAP) | 46 | Gold | 92 | Copper Alloy | 2 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Female | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Green | Wire Wrap | 2.54 mm | 0.1 in | Non Specified - Dual Edge | 2 | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
845-092 Series
92 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
Documents
Technical documentation and resources
