BPJR01AUX

Active

Switchcraft Inc.

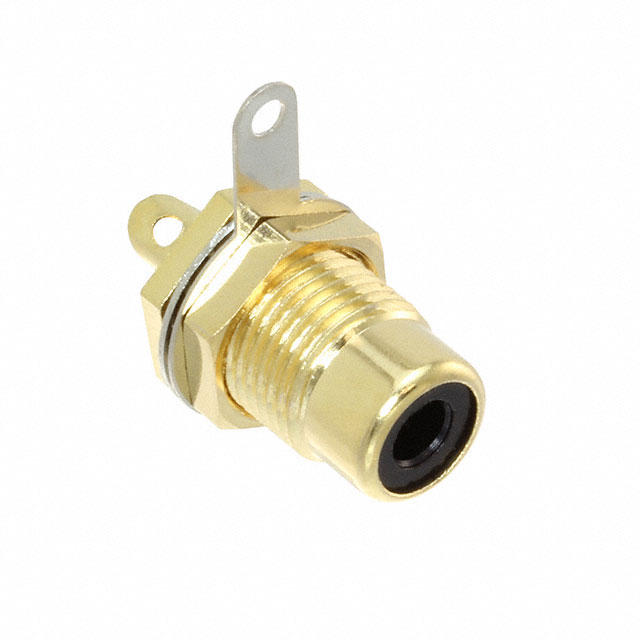

CONN RCA JACK MONO 3.2MM PNL MT

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCA JACK MONO 3.2MM PNL MT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BPJR01AUX	BPJR01 Series

Actual Diameter [custom]	8.25 mm	8.25 mm
Actual Diameter [custom]	0.134 "	0.134 "
Actual Diameter [custom]	3.4 mm	3.4 mm
Actual Diameter [custom]	0.325 "	0.325 "
Body Color	Silver	Silver
Body Material	Brass	Brass
Connector Type	Phono (RCA) Jack	Phono (RCA) Jack
Contact Material	Brass	Brass
Contact Material - Plating	-	Nickel
Contact Material - Plating [custom]	Gold	Gold
Features	Mounting Hardware, Grounding Tab	Mounting Hardware, Grounding Tab
Gender	Female	Female
Includes	Connector, Washer, Nut	Connector, Washer, Nut
Industry Recognized Mating Diameter [diameter]	9 mm, 3.2 mm	3.2 - 9 mm
Insulation Color	Black	Black
Internal Switch(s)	False	False
Number of Positions/Contacts [custom]	2	2
Number of Positions/Contacts [custom]	2	2
Panel Hole Size	0.375 in	0.375 in
Panel Hole Size	9.52 mm	9.52 mm
Shielding	Unshielded	Unshielded
Signal Lines	Mono	Mono
Termination	Solder Eyelet(s)	Solder Eyelet(s)
Thread Size	3/8"-32	3/8"-32

CONN RCA JACK MONO 3.2MM PNL MT

Part	Internal Switch(s)	Insulation Color	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Shielding	Connector Type	Body Material	Panel Hole Size	Panel Hole Size	Gender	Contact Material	Contact Material - Plating [custom]	Body Color	Signal Lines	Termination	Thread Size	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Features	Includes	Industry Recognized Mating Diameter [diameter]	Contact Material - Plating [custom]
Switchcraft Inc. BPJR01AUX		Black	2	2	Unshielded	Phono (RCA) Jack	Brass	0.375 in	9.52 mm	Female	Brass	Gold	Silver	Mono	Solder Eyelet(s)	3/8"-32	8.25 mm	0.134 "	3.4 mm	0.325 "	Grounding Tab, Mounting Hardware	Connector, Nut, Washer	3.2 mm, 9 mm
Switchcraft Inc. BPJR01X		Black	2	2	Unshielded	Phono (RCA) Jack	Brass	0.375 in	9.52 mm	Female	Brass		Silver	Mono	Solder Eyelet(s)	3/8"-32	8.25 mm	0.134 "	3.4 mm	0.325 "	Grounding Tab, Mounting Hardware	Connector, Nut, Washer	3.2 mm, 9 mm	Nickel
