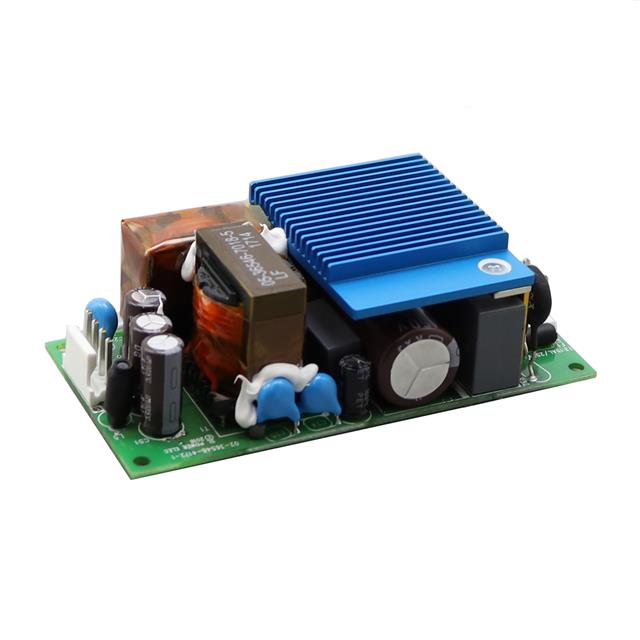

MB120S18C01
ActiveSL POWER / Advanced Energy
AC/DC CONVERTER 18V 99W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MB120S18C01
ActiveSL POWER / Advanced Energy
AC/DC CONVERTER 18V 99W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MB120S18C01 |
|---|---|
| Applications | Medical |
| Approval Agency | CE |
| Current - Output 1 | 5.5 A |
| Efficiency | 94 % |
| Features | Universal Input |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Size / Dimension [x] | 101.6 mm |
| Size / Dimension [x] | 4 in |
| Size / Dimension [y] | 2 in |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [z] | 1.25 " |
| Size / Dimension [z] | 31.8 mm |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 80 VAC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 18 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 62.50 | |
Description
General part information
MB120S18 Series
Open Frame AC DC Converters 1 Output 18V 80 ~ 264 VAC Input
